M39003/01 Series
Manufacturer: Vishay General Semiconductor - Diodes Division
Catalog

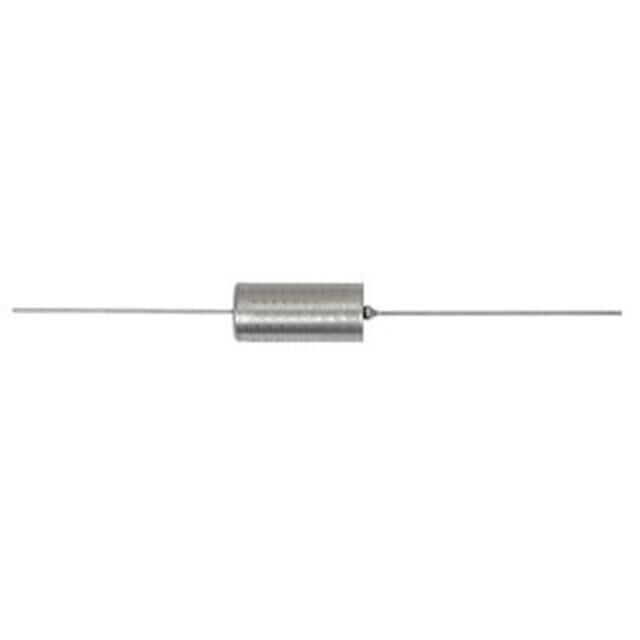

CAP TANT 0.15UF 5% 75V AXIAL
...
| Part | Failure Rate | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Capacitance | Grade | Manufacturer Size Code | Features | Qualification | Package / Case | Tolerance | Size / Dimension [custom] | Size / Dimension [diameter] | Type | Voltage - Rated | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Vishay General Semiconductor - Diodes Division | R (0.01%) | -55 °C | 125 °C | Through Hole | 0.15 ÁF | Military | A | High Reliability | MIL-PRF-39003/1 | Axial | 5 % | 0.286 in 7.26 mm | 0.135 in 3.43 mm | Hermetically Sealed | 75 V | |||
Vishay General Semiconductor - Diodes Division | M (1%) | -55 °C | 125 °C | Through Hole | 3.3 µF | Military | B | High Reliability | MIL-PRF-39003/1 | Axial | 20 % | 4.7 mm | Hermetically Sealed | 50 VDC | 0.474 in | 12.04 mm | 0.185 in | |
Vishay General Semiconductor - Diodes Division | C (0.01%) | -55 °C | 125 °C | Through Hole | 0.39 µF | Military | A | High Reliability | MIL-PRF-39003/1 | Axial | 10 % | 0.286 in 7.26 mm | 0.135 in 3.43 mm | Hermetically Sealed | 100 V | |||
Vishay General Semiconductor - Diodes Division | S (0.001%) | -55 °C | 125 °C | Through Hole | 0.33 µF | Military | A | High Reliability | MIL-PRF-39003/1 | Axial | 20 % | 0.286 in 7.26 mm | 0.135 in 3.43 mm | Hermetically Sealed | 75 V | |||
Vishay General Semiconductor - Diodes Division | B (0.1%) | -55 °C | 125 °C | Through Hole | 0.068 µF | Military | A | High Reliability | MIL-PRF-39003/1 | Axial | 10 % | 0.286 in 7.26 mm | 0.135 in 3.43 mm | Hermetically Sealed | 50 VDC | |||
Vishay General Semiconductor - Diodes Division | B (0.1%) | -55 °C | 125 °C | Through Hole | 0.82 µF | A | High Reliability | Axial | 5 % | 0.286 in 7.26 mm | 0.135 in 3.43 mm | Hermetically Sealed | 50 VDC | |||||
Vishay General Semiconductor - Diodes Division | M (1%) | -55 °C | 125 °C | Through Hole | 4.7 µF | Military | High Reliability | MIL-PRF-39003/1 | Axial | 5 % | 7.34 mm | Hermetically Sealed | 75 V | 0.686 in | 17.42 mm | 0.289 in | ||
Vishay General Semiconductor - Diodes Division | S (0.001%) | -55 °C | 125 °C | Through Hole | 680 nF | Military | A | High Reliability | MIL-PRF-39003/1 | Axial | 10 % | 0.286 in 7.26 mm | 0.135 in 3.43 mm | Hermetically Sealed | 50 VDC | |||
Vishay General Semiconductor - Diodes Division | D | -55 °C | 125 °C | Through Hole | 1 µF | Military | B | High Reliability | MIL-PRF-39003/1 | Axial | 20 % | 4.7 mm | Hermetically Sealed | 75 V | 0.474 in | 12.04 mm | 0.185 in | |
Vishay General Semiconductor - Diodes Division | D | -55 °C | 125 °C | Through Hole | 2.2 µF | Military | A | High Reliability | MIL-PRF-39003/1 | Axial | 10 % | 0.286 in 7.26 mm | 0.135 in 3.43 mm | Hermetically Sealed | 20 V |
