UF9060 Series
Manufacturer: Mechatronics Fan Group
Beta
⌘K

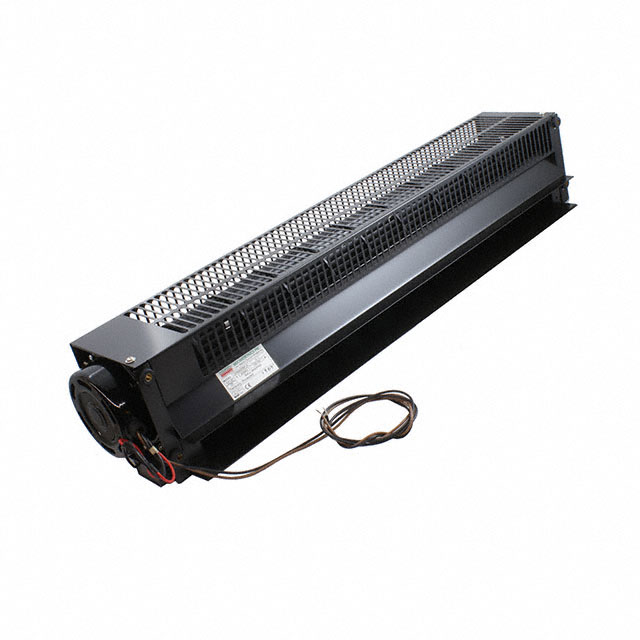

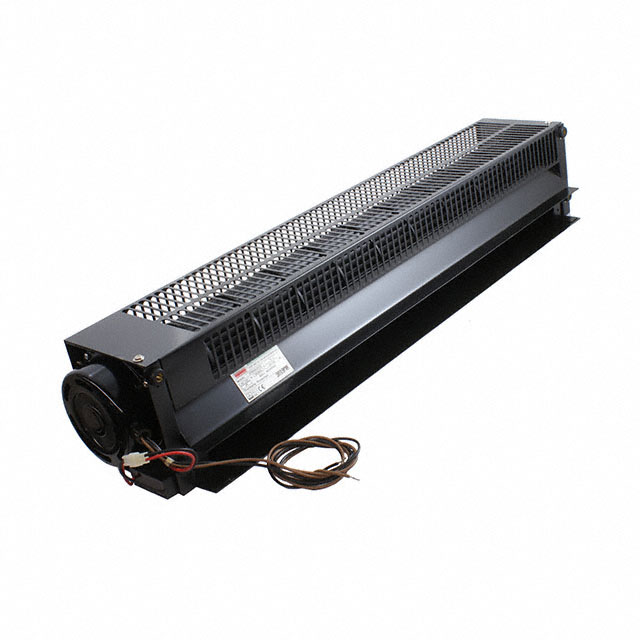

FAN BLWR CF 230VAC 740X150X130MM
| Part | Material - Frame | Material - Blade [custom] | Current Rating (Amps) | Bearing Type | Termination | Features | Static Pressure | Static Pressure | Weight | Weight | Width [y] | Noise | Power (Watts) | Voltage - Rated | RPM | Fan Type | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Air Flow | Air Flow | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mechatronics Fan Group | Steel | Aluminum | 0.7 A | Ball | 2 Wire Leads | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 107.1 Pa | 0.43 in H2O | 11 lbs | 5 kg | 125 mm | 54 dB | 160 W | 230 VAC | 2100 RPM | Blower Cross Flow | -40 C | 70 °C | 70 °C | -40 °C | CE TUV | 530 CFM | 14.84 mł/min | 740 mm | 130 mm |
 Mechatronics Fan Group | Steel | Aluminum | 1.25 A | Ball | 2 Wire Leads | Permanent Split Capacitor Motor Thermal Overload Protector (TOP) | 107.1 Pa | 0.43 in H2O | 11 lbs | 5 kg | 125 mm | 54 dB | 160 W | 120 VAC | 2100 RPM | Blower Cross Flow | -40 C | 70 °C | 70 °C | -40 °C | CE TUV | 530 CFM | 14.84 mł/min | 740 mm | 130 mm |
