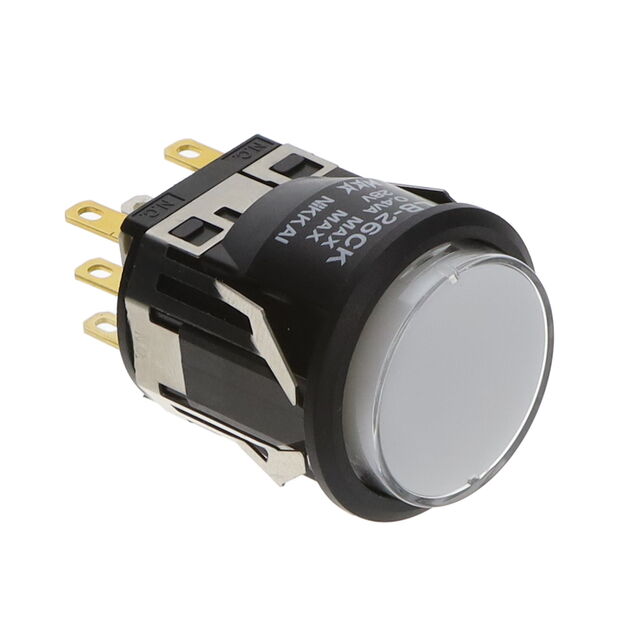

LB26CKG01 Series
Manufacturer: NKK Switches
Beta
⌘K
STANDARD SIZE PANEL SEAL PUSHBUTTON
| Part | Electrical Life | Mechanical Life | Actuator Marking | Switch Function | Voltage Rating - DC | Actuator Type | Current Rating (Amps) | Mounting Type | Illumination Voltage (Nominal) | Type | Panel Cutout Dimensions [diameter] | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Illumination Type, Color | Termination Style | Color - Actuator/Cap | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 200000 Cycles | No Marking | On-On | 28 V | Button Round | 0.4 VA | Panel Mount Snap-In | 12 VDC | Illuminated Standard | 22 mm | 28 V | 50 °C | -25 °C | LED Red | Solder Quick Connect - 0.110" (2.8mm) | Clear | DPDT |
NKK Switches | 100000 Cycles | 200000 Cycles | No Marking | On-On | 28 V | Button Round | 0.4 VA | Panel Mount Snap-In | 2.1 VDC | Illuminated Standard | 22 mm | 28 V | 50 °C | -25 °C | Green LED | Solder Quick Connect - 0.110" (2.8mm) | White | DPDT |
NKK Switches | 100000 Cycles | 200000 Cycles | No Marking | On-On | 28 V | Button Round | 0.4 VA | Panel Mount Snap-In | Standard | 22 mm | 28 V | 70 °C | -25 °C | Solder Quick Connect - 0.110" (2.8mm) | Black | DPDT | ||
NKK Switches | 100000 Cycles | 200000 Cycles | No Marking | On-On | 28 V | Button Round | 0.4 VA | Panel Mount Snap-In | 24 V | Illuminated Standard | 22 mm | 28 V | 50 °C | -25 °C | Green LED | Solder Quick Connect - 0.110" (2.8mm) | Clear | DPDT |
 NKK Switches | 100000 Cycles | 200000 Cycles | No Marking | On-On | 28 V | Button Round | 0.4 VA | Panel Mount Snap-In | 110 VAC | Illuminated Standard | 22 mm | 28 V | 50 °C | -25 °C | Neon White | Solder Quick Connect - 0.110" (2.8mm) | Clear | DPDT |
