5977715 Series
Manufacturer: DIALIGHT
Beta
⌘K

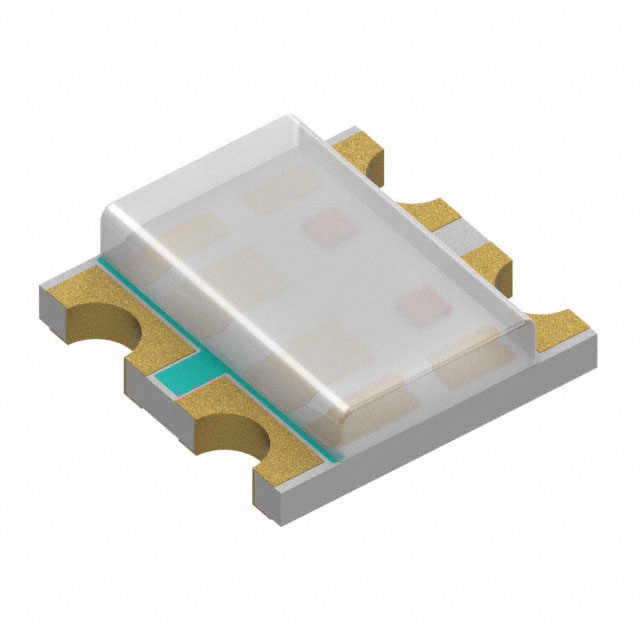

LED RGB 0606 SMD
| Part | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Wavelength - Peak [custom] | Height (Max) [z] | Supplier Device Package | Size / Dimension [x] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Voltage - Forward (Vf) (Typ) [custom] | Lens Size [x] | Lens Size [y] | Mounting Type | Viewing Angle | Current - Test [custom] | Current - Test [custom] | Current - Test [custom] | Lens Style | Color | Package / Case | Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 DIALIGHT | 632 nm | 518 nm | 468 nm | 0.63 mm | 0606 | 1.6 mm | 1.6 mm | 2.8 V | 1.95 V | 2.9 V | 1.6 mm | 1.15 mm | Surface Mount | 130 ° | 5 mA | 5 mA | 5 mA | Rectangle with Flat Top | Blue Green Red | 0606 1616 Metric | Common Anode |
