2232112 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

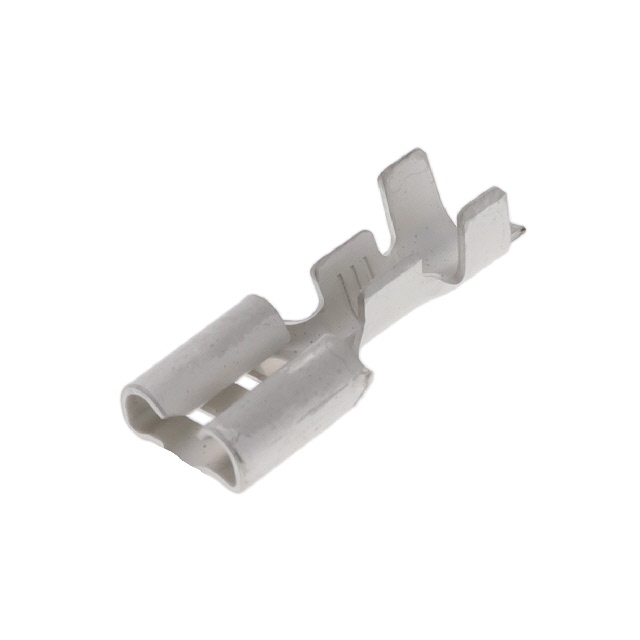

250 FASTON,REC.,18-14 AWG,TPBR
| Part | Tab Length | Tab Length | Terminal Type | Contact Material | Tab Width | Tab Width | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Min] | Insulation Diameter [Max] | Wire Gauge [Min] | Wire Gauge [Max] | Mounting Type | Gender | Insulation | Contact Finish | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 7.8 mm | 0.307 in | Standard | Brass | 6.35 mm | 0.25 in | 2.54 mm | 0.17 in | 0.1 in | 4.32 mm | 14 AWG | 18 AWG | Free Hanging (In-Line) | Female | Non-Insulated | Tin | Crimp |
