GWJDSMS Series

Catalog

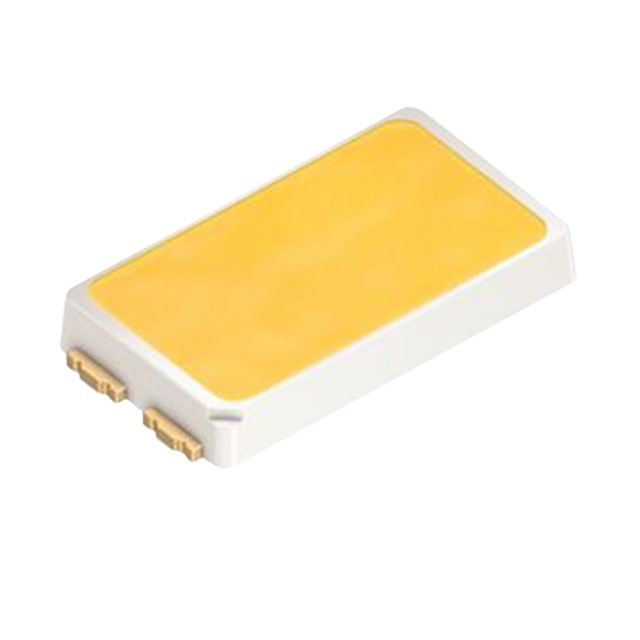

LED DURIS E5 WARM WHT 3500K 5630

Part	Thermal Resistance of Package	Supplier Device Package	Lumens/Watt @ Current - Test	CCT (K)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Voltage - Forward (Vf) (Typ)	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Current - Test	CRI (Color Rendering Index)	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Viewing Angle	Color	Current - Max [Max]
ams-OSRAM USA INC. GW JDSMS1.CC-FRFT-5O8Q-L1N2	33 °C/W	5630	114 lm/W	3500 K	0.87 mm	0.034 in	4-SMD Flat Lead Exposed Pad	3.15 V	Surface Mount	5.3 mm	0.209 "	0.118 in	3 mm	120 mA	90	38 lm	48 lm	43 lm	120 °	Warm White	180 mA
ams-OSRAM USA INC. GW JDSMS1.CC-FQFS-5U8X-L1N2	33 °C/W	5630	106 lm/W	2700 K	0.87 mm	0.034 in	4-SMD Flat Lead Exposed Pad	3.15 V	Surface Mount	5.3 mm	0.209 "	0.118 in	3 mm	120 mA	90			40 lm	120 °	Warm White	180 mA
