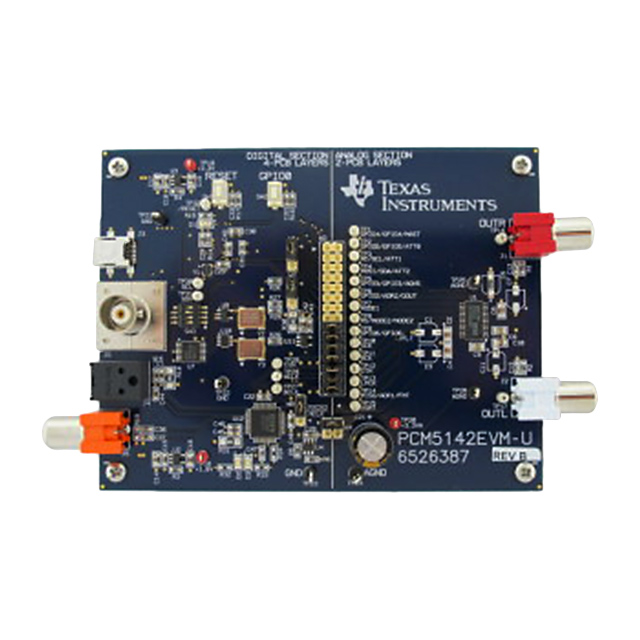

PCM5142 Series
2V RMS DIRECTPATH 112dB Audio Stereo DAC with PCM interface and fully programmable miniDSP
Manufacturer: Texas Instruments
Catalog
2V RMS DIRECTPATH 112dB Audio Stereo DAC with PCM interface and fully programmable miniDSP
Key Features
• Programmable miniDSPMarket-Leading Low Out-of-Band NoiseSelectable Digital-Filter Latency and PerformanceNo DC Blocking Capacitors RequiredIntegrated Negative Charge PumpIntelligent Muting System; Soft Up or Down Rampand Analog Mute For 120-dB Mute SNRIntegrated High-Performance Audio PLL withBCK Reference To Generate SCK InternallyAccepts 16-, 20-, 24-, And 32-Bit Audio DataPCM Data Formats: I2S, Left-Justified, Right-Justified, TDM / DSPSPI or I2C ControlSoftware or Hardware ConfigurationAutomatic Power-Save Mode When LRCK AndBCK Are Deactivated1.8-V or 3.3-V Fail-Safe LVCMOS Digital InputsSingle Supply Operation:3.3-V Analog, 1.8-V or 3.3-V DigitalIntegrated Power-On ResetSmall 28-pin TSSOP PackageProgrammable miniDSPMarket-Leading Low Out-of-Band NoiseSelectable Digital-Filter Latency and PerformanceNo DC Blocking Capacitors RequiredIntegrated Negative Charge PumpIntelligent Muting System; Soft Up or Down Rampand Analog Mute For 120-dB Mute SNRIntegrated High-Performance Audio PLL withBCK Reference To Generate SCK InternallyAccepts 16-, 20-, 24-, And 32-Bit Audio DataPCM Data Formats: I2S, Left-Justified, Right-Justified, TDM / DSPSPI or I2C ControlSoftware or Hardware ConfigurationAutomatic Power-Save Mode When LRCK AndBCK Are Deactivated1.8-V or 3.3-V Fail-Safe LVCMOS Digital InputsSingle Supply Operation:3.3-V Analog, 1.8-V or 3.3-V DigitalIntegrated Power-On ResetSmall 28-pin TSSOP Package
Description
AI
The PCM514x devices are a family of monolithic CMOS-integrated circuits that include a stereo digital-to-analog converter and additional support circuitry in a small TSSOP package. The PCM514x uses the latest generation of TI’s advanced segment-DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.
Members of the PCM514x family integrate a fully programmable miniDSP core, allowing developers to integrate filters, dynamic range controls, custom interpolators, and other differentiating features to their products.
The PCM514x provides 2.1-VRMSground centered outputs, allowing designers to eliminate DC-blocking capacitors on the output, as well as external muting circuits traditionally associated with single-supply line drivers.
The integrated line driver surpasses all other charge-pump-based line drivers by supporting loads down to 1 kΩ, allowing the PCM514x to drive up to 10 products in parallel, such as LCD TV, DVDR, and AV receivers.
The integrated PLL on the device removes the requirement for a system clock (commonly known as master clock), allowing a 3-wire I2S connection and reducing system EMI.
The PCM514x devices are a family of monolithic CMOS-integrated circuits that include a stereo digital-to-analog converter and additional support circuitry in a small TSSOP package. The PCM514x uses the latest generation of TI’s advanced segment-DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.
Members of the PCM514x family integrate a fully programmable miniDSP core, allowing developers to integrate filters, dynamic range controls, custom interpolators, and other differentiating features to their products.
The PCM514x provides 2.1-VRMSground centered outputs, allowing designers to eliminate DC-blocking capacitors on the output, as well as external muting circuits traditionally associated with single-supply line drivers.
The integrated line driver surpasses all other charge-pump-based line drivers by supporting loads down to 1 kΩ, allowing the PCM514x to drive up to 10 products in parallel, such as LCD TV, DVDR, and AV receivers.
The integrated PLL on the device removes the requirement for a system clock (commonly known as master clock), allowing a 3-wire I2S connection and reducing system EMI.
