R16131 Series

Catalog

N / STRAIGHT BULKHEAD JACK PANEL

Part	Operating Temperature [Max]	Operating Temperature [Min]	Body Finish	Dielectric Material	Mating Cycles	Center Contact Plating	Voltage Rating	Insertion Loss	Body Material	Cable Group	Housing Color	Fastening Type	Impedance	Shield Termination	Frequency - Max [Max]	Ingress Protection	Number of Ports	Mounting Type	Connector Style	Center Contact Material	Mounting Feature	Connector Type	Contact Termination
Radiall USA, Inc. R161311300W	155 C	-55 C	White Bronze	Polytetrafluoroethylene (PTFE)	500	Gold	250 V	0.15 dB	Brass	316 316 Double Braid RG-188	Silver	Threaded	50 Ohms	Crimp	11 GHz	IP67 - Dust Tight Waterproof	1	Panel Mount	N Type	Beryllium Copper	Bulkhead - Front Side Nut	Female Socket Jack	Crimp

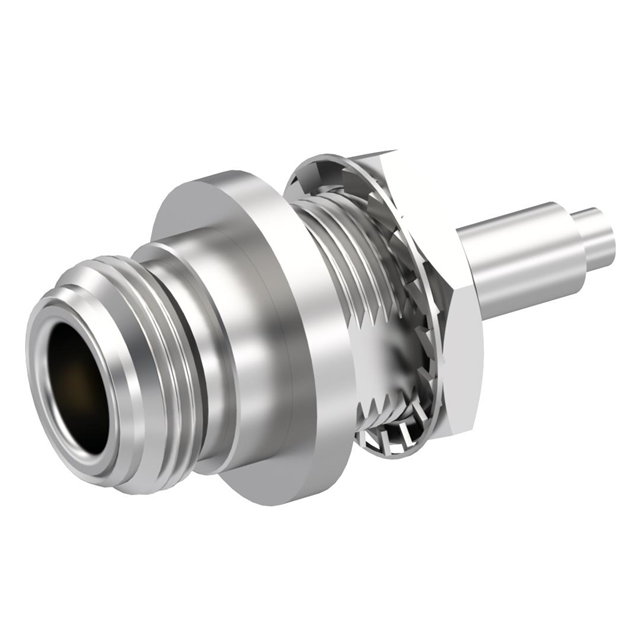

Radiall USA, Inc. R161311200	155 C	-55 C	White Bronze	Polytetrafluoroethylene (PTFE)	500	Gold	250 V	0.15 dB	Brass	316 316 Double Braid RG-188	Silver	Threaded	50 Ohms	Crimp	11 GHz	IP67 - Dust Tight Waterproof	1	Panel Mount	N Type	Beryllium Copper	Bulkhead - Rear Side Nut	Female Socket Jack	Crimp

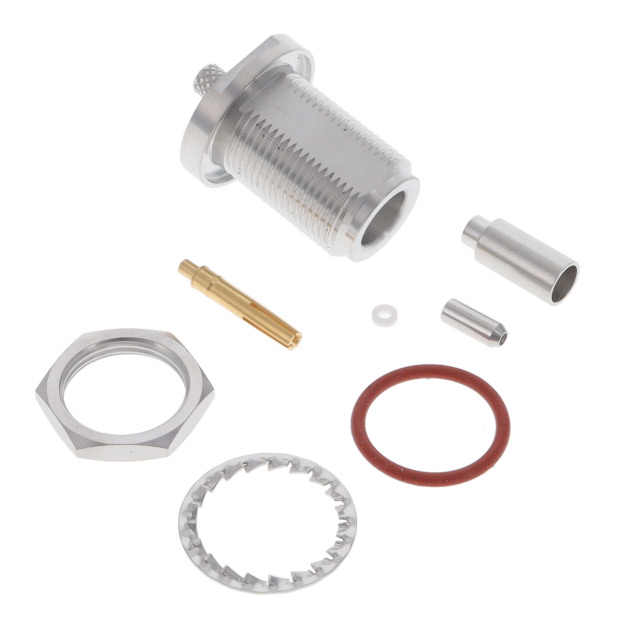

Radiall USA, Inc. R161311300	155 C	-55 C	White Bronze	Polytetrafluoroethylene (PTFE)	500	Gold	250 V	0.15 dB	Brass	176DS 316 RG-174	Silver	Threaded	50 Ohms	Crimp	11 GHz	IP67 - Dust Tight Waterproof	1	Panel Mount	N Type	Beryllium Copper	Bulkhead - Front Side Nut	Female Socket Jack	Crimp
Radiall USA, Inc. R161311200W	155 C	-55 C	White Bronze	Polytetrafluoroethylene (PTFE)	500	Gold	250 V	0.15 dB	Brass	316 316 Double Braid RG-188	Silver	Threaded	50 Ohms	Crimp	11 GHz	IP67 - Dust Tight Waterproof	1	Panel Mount	N Type	Beryllium Copper	Bulkhead - Rear Side Nut	Female Socket Jack	Crimp
