TPSM83100 Series

1.5A high-efficiency buck-boost module with integrated inductor

Catalog

1.5A high-efficiency buck-boost module with integrated inductor

Part	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Supplier Device Package	Applications	Power (Watts)	Voltage - Input (Min) [Min]

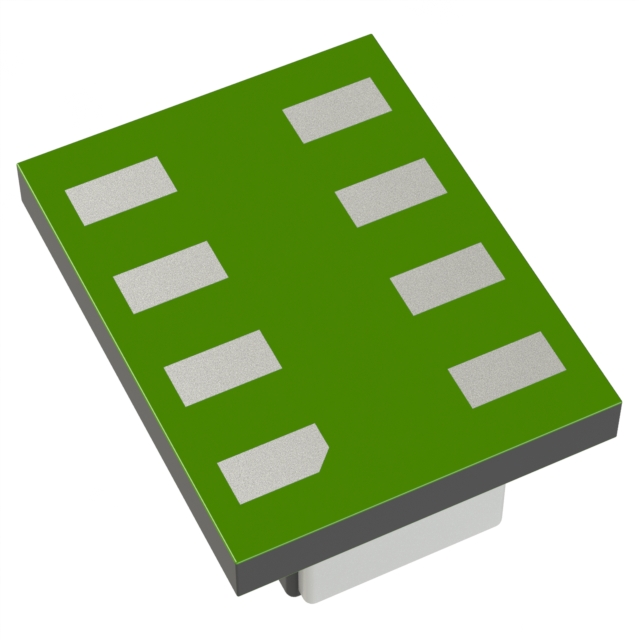

Texas Instruments TPSM83100SIUR	Non-Isolated PoL Module	125 °C	-40 °C	Adjustable Output	5.5 V	1.2 V	8-TFDFN Module	1	1.5 A	5.5 V	Surface Mount	0.1 in	2.6 mm	1.3 mm	0.05 in	0.08 "	2.1 mm	8-µSIP (2.6x2)	ITE (Commercial)	8.25 W	1.6 V

Catalog

1.5A high-efficiency buck-boost module with integrated inductor

Key Features

• 1.6V to 5.5V input voltage rangeDevice input voltage > 1.65V for start-up1.2V to 5.5V output voltage range1.0V Vout is supported in PFM modeHigh output current capability, 3A peak switch current1.5A Iout for VIN ≥ 3V, VOUT = 3.3V1.2A Iout for VIN ≥ 2.7V, VOUT = 3.3VActive output discharge (TPSM83101 only)High efficiency over the entire load range8µA typical quiescent currentAutomatic power save mode and forced PWM modePeak current buck-boost mode architectureSeamless mode transitionForward and reverse current operationStart-up into pre-biased outputsFixed-frequency operation with 2MHz switchingSafety and robust operation featuresOvercurrent protection and short-circuit protectionIntegrated soft start with active ramp adoptionOvertemperature protection and overvoltage protectionTrue shutdown function with load disconnectionForward and backward current limitSmall solution sizeMicroSiP™ power module with integrated inductor2.0mm × 2.6mm × 1.2mm(max) 8-pin µSiP package1.6V to 5.5V input voltage rangeDevice input voltage > 1.65V for start-up1.2V to 5.5V output voltage range1.0V Vout is supported in PFM modeHigh output current capability, 3A peak switch current1.5A Iout for VIN ≥ 3V, VOUT = 3.3V1.2A Iout for VIN ≥ 2.7V, VOUT = 3.3VActive output discharge (TPSM83101 only)High efficiency over the entire load range8µA typical quiescent currentAutomatic power save mode and forced PWM modePeak current buck-boost mode architectureSeamless mode transitionForward and reverse current operationStart-up into pre-biased outputsFixed-frequency operation with 2MHz switchingSafety and robust operation featuresOvercurrent protection and short-circuit protectionIntegrated soft start with active ramp adoptionOvertemperature protection and overvoltage protectionTrue shutdown function with load disconnectionForward and backward current limitSmall solution sizeMicroSiP™ power module with integrated inductor2.0mm × 2.6mm × 1.2mm(max) 8-pin µSiP package

Description

The TPSM83100 and TPSM83101 are constant frequency peak current mode control buck-boost MicroSiP™ power modules optimized for small solution size and high efficiency. The power modules integrate an inductor to simplify design, reduce external components and save PCB area. They have a 3A peak current limit (typical) and 1.6V to 5.5V input voltage range. The TPSM83100 and TPSM83101 provide a power supply solution for system pre-regulators and voltage stabilizers. Depending on the input voltage, the TPSM83100 and TPSM83101 automatically operate in boost, buck, or in 3-cycle buck-boost mode when the input voltage is approximately equal to the output voltage. The transitions between modes happen at a defined duty cycle and avoid unwanted toggling within the modes to reduce output voltage ripple. 8µA quiescent current and power save mode enable the highest efficiency for light to no-load conditions. The TPSM83100 and TPSM83101 are constant frequency peak current mode control buck-boost MicroSiP™ power modules optimized for small solution size and high efficiency. The power modules integrate an inductor to simplify design, reduce external components and save PCB area. They have a 3A peak current limit (typical) and 1.6V to 5.5V input voltage range. The TPSM83100 and TPSM83101 provide a power supply solution for system pre-regulators and voltage stabilizers. Depending on the input voltage, the TPSM83100 and TPSM83101 automatically operate in boost, buck, or in 3-cycle buck-boost mode when the input voltage is approximately equal to the output voltage. The transitions between modes happen at a defined duty cycle and avoid unwanted toggling within the modes to reduce output voltage ripple. 8µA quiescent current and power save mode enable the highest efficiency for light to no-load conditions.
