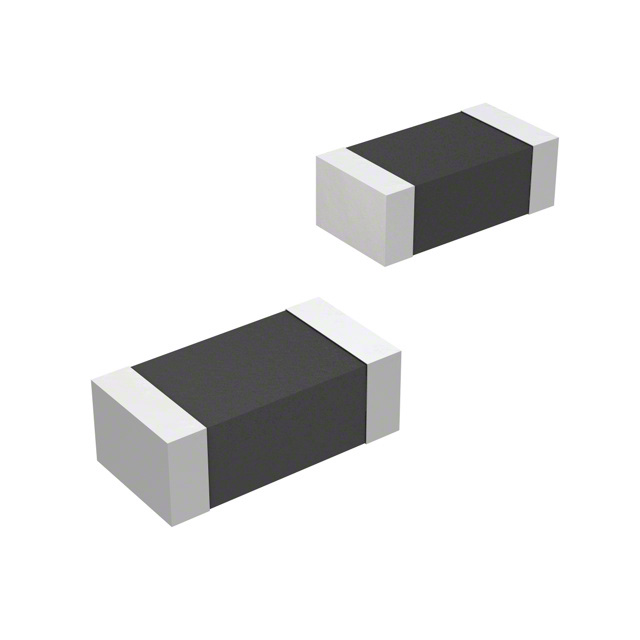

MH3261 Series
Manufacturer: Bourns Inc.
Beta
⌘K
FERRITE BEAD 50 OHM 1206 1LN
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Impedance @ Frequency | Package / Case | Filter Type | Current Rating (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Height (Max) [z] | Height (Max) [z] | DC Resistance (DCR) (Max) [Max] | Number of Lines | DC Resistance (DCR) (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | -55 C | 125 °C | Surface Mount | 50 Ohms | 1206 (3216 Metric) | Power Signal Line | 3 A | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.051 in | 1.3 mm | 25 mOhm | 1 | |
Bourns Inc. | -55 C | 125 °C | Surface Mount | 600 Ohms | 1206 (3216 Metric) | Power Signal Line | 2 A | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.051 in | 1.3 mm | 100 mOhm | 1 | |
Bourns Inc. | -55 C | 125 °C | Surface Mount | 70 Ohms | 1206 (3216 Metric) | Power Signal Line | 4 A | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.051 in | 1.3 mm | 30 mOhm | 1 | |
Bourns Inc. | -55 C | 125 °C | Surface Mount | 500 Ohms | 1206 (3216 Metric) | Power Signal Line | 3 A | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.051 in | 1.3 mm | 1 | 40 mOhm | |
Bourns Inc. | -55 C | 125 °C | Surface Mount | 19 Ohms | 1206 (3216 Metric) | Power Signal Line | 3 A | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.051 in | 1.3 mm | 1 | 40 mOhm | |
Bourns Inc. | -55 C | 125 °C | Surface Mount | 300 Ohms | 1206 (3216 Metric) | Power Signal Line | 1 A | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | 0.051 in | 1.3 mm | 200 mOhm | 1 |
