LMZ10500 Series

Catalog

DC DC CONVERTER 0.6-3.6V

Part	Control Features	Number of Outputs	Voltage - Input (Min) [Min]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Efficiency	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Applications	Voltage - Input (Max) [Max]	Features	Type	Supplier Device Package	Main Purpose	Outputs and Type	Outputs and Type	Utilized IC / Part	Board Type	Voltage - Output	Supplied Contents	Frequency - Switching	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Current - Output
Texas Instruments LMZ10500SHX/NOPB	Active High Enable	1	2.7 V	Surface Mount	125 °C	-40 °C	8-SMD Module	95 %	0.6 V	3.6 V	0.06 "	1.5 mm	0.1 in	0.12 in	2.6 mm	3 mm	650 mA	ITE (Commercial)	5.5 V	OCP OTP UVLO	Non-Isolated PoL Module
Texas Instruments LMZ10500SH/NOPB	Active High Enable	1	2.7 V	Surface Mount	125 °C	-40 °C	8-SMD Module	95 %	0.6 V	3.6 V	0.06 "	1.5 mm	0.1 in	0.12 in	2.6 mm	3 mm	650 mA	ITE (Commercial)	5.5 V	OCP OTP UVLO	Non-Isolated PoL Module
Texas Instruments LMZ10500SEX/NOPB	Active High Enable	1	2.7 V	Surface Mount			8-SMD Module	95 %	0.6 V	3.6 V	0.06 "	1.5 mm	0.1 in	0.12 in	2.6 mm	3 mm	650 mA	ITE (Commercial)	5.5 V	UVLO	Non-Isolated PoL Module
Texas Instruments LMZ10500SE/NOPB	Active High Enable	1	2.7 V	Surface Mount	125 °C	-40 °C	8-SMD Module	95 %	0.6 V	3.6 V	0.06 "	1.5 mm	0.1 in	0.12 in	2.6 mm	3 mm	650 mA	ITE (Commercial)	5.5 V	OCP OTP UVLO	Non-Isolated PoL Module
Texas Instruments LMZ10500SILR	Active High Enable	1	2.7 V	Surface Mount	125 °C	-40 °C	8-LDFN Exposed Pad Module	95 %	0.6 V	3.6 V	0.06 "	1.5 mm	0.1 in	0.12 in	2.6 mm	3 mm	650 mA	ITE (Commercial)	5.5 V	OCP OTP SCP UVLO	Non-Isolated PoL Module	8-uSIP
Texas Instruments LMZ10500SILT	Active High Enable	1	2.7 V	Surface Mount	125 °C	-40 °C	8-LDFN Exposed Pad Module	95 %	0.6 V	3.6 V	0.03 in	0.7 mm	0.1 in	0.12 in	2.5 mm	3 mm	650 mA	ITE (Commercial)	5.5 V	OCP OTP UVLO	Non-Isolated PoL Module	8-uSIP

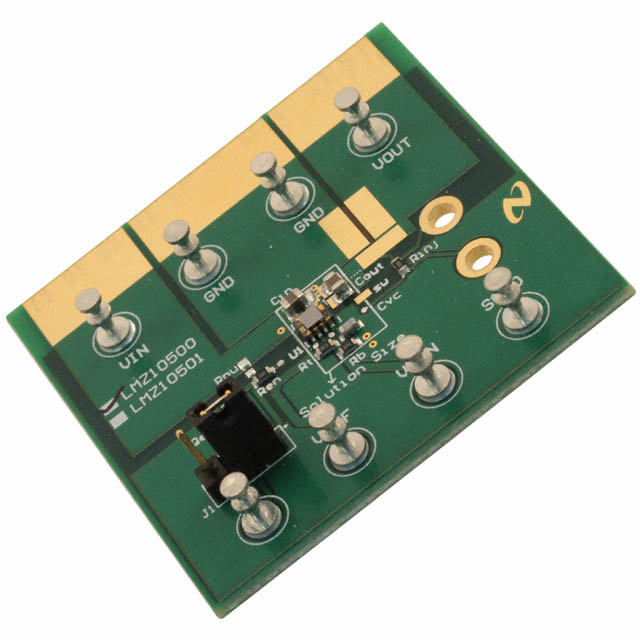

Texas Instruments LMZ10500EVAL/NOPB																							DC/DC Step Down	Non-Isolated	1	LMZ10500	Fully Populated	1.8 V	Board(s)	2 MHz	2.7 V	5.5 V	Buck	650 mA
Texas Instruments LMZ10500SHE/NOPB	Active High Enable	1	2.7 V	Surface Mount	125 °C	-40 °C		95 %	0.6 V	3.6 V	0.06 "	1.5 mm	0.1 in	0.12 in	2.6 mm	3 mm	650 mA	ITE (Commercial)	5.5 V	OCP OTP SCP UVLO	Non-Isolated PoL Module
