PSU100L Series

Manufacturer: Siemens

Catalog

DIN RAIL POWER SUPPLIES SITOP PSU100L 24 V/20 A

Part	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Output 1	Features	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	DC Voltage - Input (Max) [Max]	Input Type	Power (Watts)	Current - Output (Max) [Max]	Standard Number	DC Voltage - Input (Min) [Min]	Efficiency	Size / Dimension [z]	Size / Dimension [y]

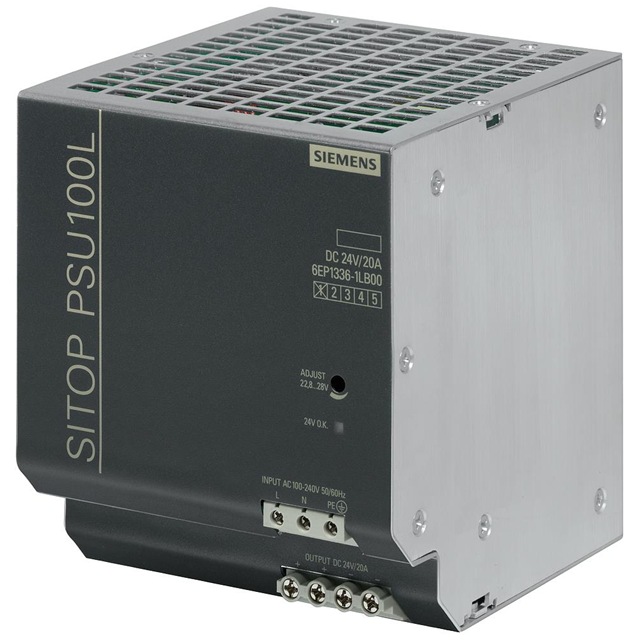

Siemens 6EP13361LB00	240 VAC 264 VAC	85 VAC 100 VAC	24 V	Adjustable Output IP20 Universal Input	CB CE CSA cUL cULus UL	70 °C	-25 °C	Hazardous Locations Industrial ITE (Commercial)	1	125 mm	125 mm	4.33 "	110 mm	4.92 in	4.92 in	370 V	AC or DC	480 W	20 A	60950-1; UL 508	88 V	92 %
Siemens 6EP13341LB00	132 VAC 264 VAC	93 VAC 187 VAC	24 V	Adjustable Output IP20 Universal Input	CB CE CSA cUL cULus UL	60 °C	0 °C	Hazardous Locations Industrial ITE (Commercial)	1	120 mm		2.76 "		4.92 in	4.72 "		AC	240 Watts	10 A	60950-1; UL 508		89 %	125 mm	70 mm
