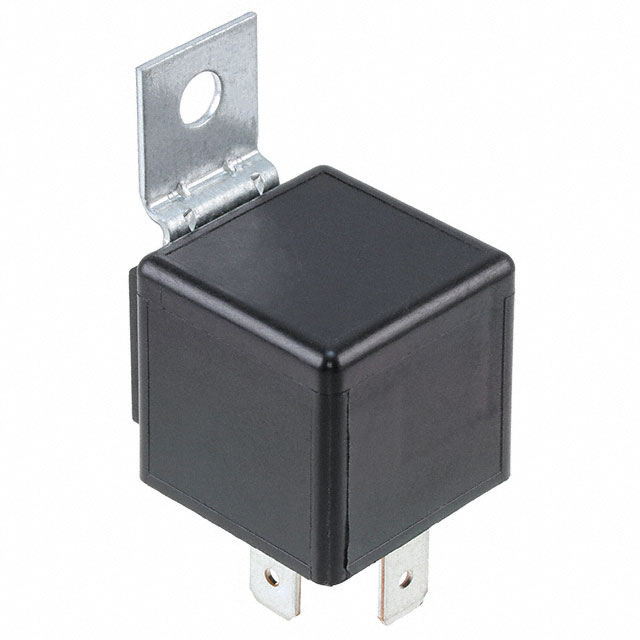

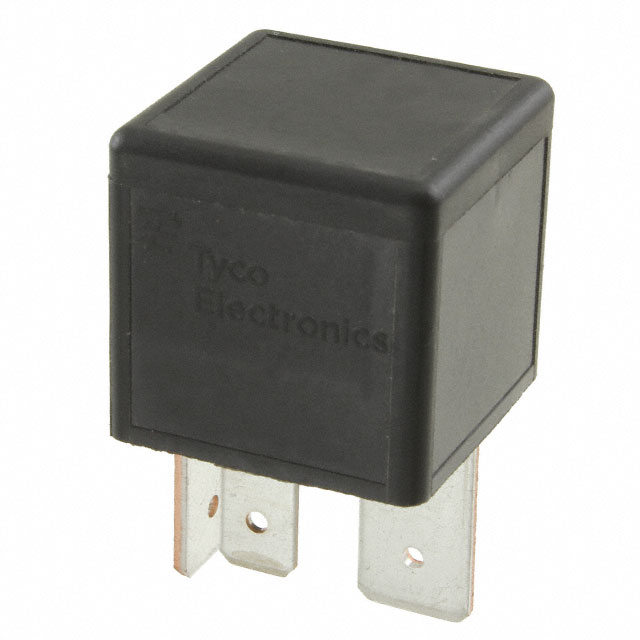

1393303 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY AUTOMOTIVE SPST-NO 70A 24V
| Part | Coil Resistance | Coil Power | Contact Material | Must Release Voltage | Must Operate Voltage | Contact Form | Termination Style | Mounting Type | Contact Rating (Current) | Operate Time | Switching Voltage | Release Time | Coil Voltage | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 324 Ohms | 1.8 W | Silver Alloy | 3.2 VDC | 14.4 VDC | SPST-NO (1 Form A) | Plug In Quick Connect | Socketable | 70 A | 7 ms | 24 VDC | 2 ms | 24 VDC | Non Latching | 125 °C | -40 C | |
 TE Connectivity AMP Connectors | 90 Ohms | 1.6 W | Silver Alloy | 1.6 VDC | 7.2 VDC | SPST-NO (1 Form A) | Chassis Mount | 40 A | 7 ms | 14 VDC | 2 ms | 12 VDC | Non Latching | 125 °C | -40 C | 133.3 mA | |
 TE Connectivity AMP Connectors | 90 Ohms | 1.6 W | Silver (Ag) | 1.6 VDC | 7.2 VDC | SPST-NO (1 Form A) | Plug In | Socketable | 7 ms | 2 ms | 12 VDC | Non Latching | 125 °C | -40 C | |||
TE Connectivity AMP Connectors | 90 Ohms | 1.6 W | Silver Alloy | 1.6 VDC | 7.2 VDC | SPST-NO (1 Form A) | Plug In Quick Connect - 0.250" (6.3mm) | Socketable | 40 A | 7 ms | 14 VDC | 2 ms | 12 VDC | Non Latching | 125 °C | -40 C | 133.3 mA |
TE Connectivity AMP Connectors | 324 Ohms | 1.8 W | Silver Alloy | 3.2 VDC | 14.4 VDC | SPST-NO (1 Form A) | Chassis Mount | 20 A | 7 ms | 28 VDC | 2 ms | 24 VDC | Non Latching | 125 °C | -40 C | 74.1 mA | |
 TE Connectivity AMP Connectors | 90 Ohms | 1.6 W | Silver Alloy | 1.6 VDC | 7.2 VDC | SPST-NO (1 Form A) | Plug In Quick Connect - 0.250" (6.3mm) | Chassis Mount | 60 A | 7 ms | 2 ms | 12 VDC | Non Latching | 125 °C | -40 C |
