9213 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

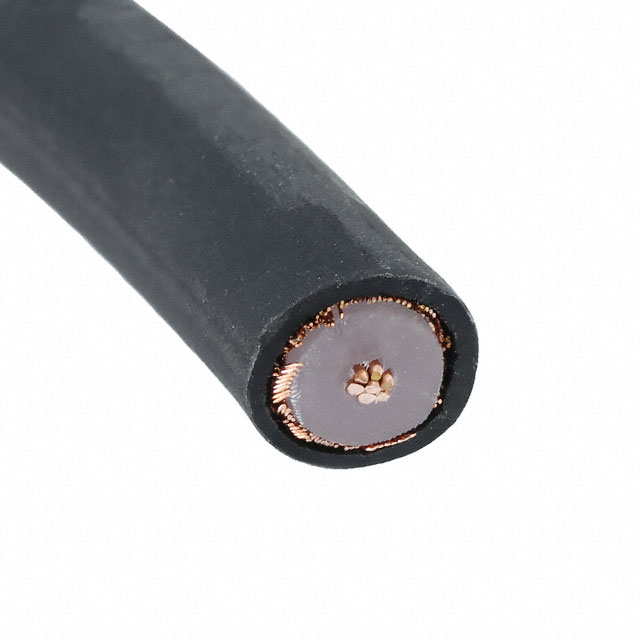

CBL 213/U 13AWG BK 1000=1000'
| Part | Conductor Strand | Jacket (Insulation) Material | Shield Type | Impedance | Shield Coverage | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Wire Gauge | Dielectric Material | Shield Material | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Cable Group | Conductor Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 0.0296 in 7 Strands | Poly-Vinyl Chloride (PVC) | Braid | 50 Ohms | 96 % | Black | 10.29 mm | 0.405 in | 13 AWG | Solid Polyethylene (PE) | Copper Bare | 7.24 mm | 0.285 in | 80 C | -15 °C | Coaxial | RG-213 | Copper Bare Copper Tinned | 304.8 m | 1000 ft |
ALPHA WIRE | 0.0296 in 7 Strands | Poly-Vinyl Chloride (PVC) | Braid | 50 Ohms | 96 % | Black | 10.29 mm | 0.405 in | 13 AWG | Solid Polyethylene (PE) | Copper Bare | 7.24 mm | 0.285 in | 80 C | -15 °C | Coaxial | RG-213 | Copper Bare Copper Tinned | 304.8 m | 1000 ft |
