842-078 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 78POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Contact Type	Gender	Read Out	Color	Number of Positions	Number of Rows [custom]	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Number of Positions/Bay/Row	Mounting Type	Contact Finish	Card Thickness [Max]	Card Thickness [Min]	Features
EDAC Inc. 842-078-520-204	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	Dual	Green	78	2	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	39	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm

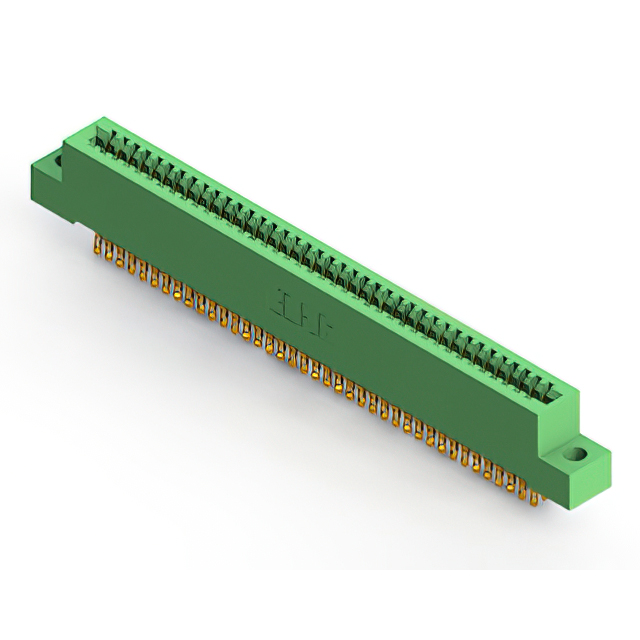

EDAC Inc. 842-078-555-204	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	Dual	Green	78	2	Copper Alloy	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	39	Board Edge Straddle Mount	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender

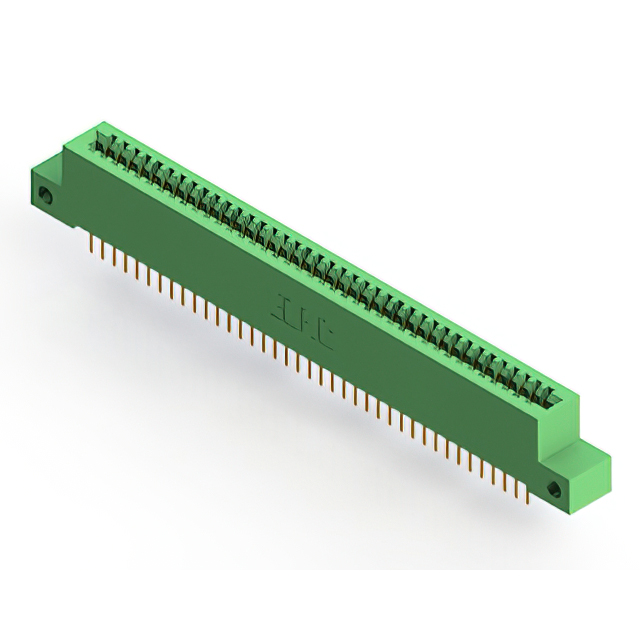

EDAC Inc. 842-078-524-212	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	Dual	Green	78	2	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	39	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-078-558-207	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	Dual	Green	78	2	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening			39	Right Angle Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-078-524-202	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	Dual	Green	78	2	Copper Alloy	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	39	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-078-555-202	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	Dual	Green	78	2	Copper Alloy	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	39	Board Edge Straddle Mount	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm	Card Extender
EDAC Inc. 842-078-523-203	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	Dual	Green	78	2	Copper Alloy	Floating Bobbin Flush Mount	0.116 "	2.95 mm	39	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm

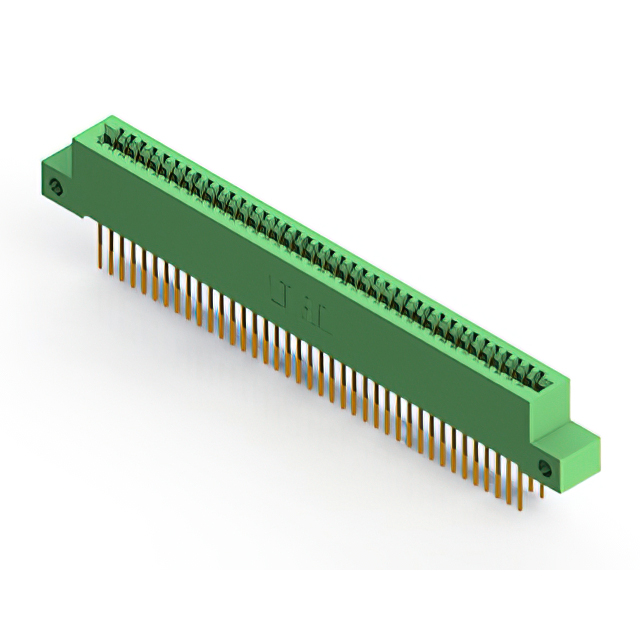

EDAC Inc. 842-078-523-212	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	Dual	Green	78	2	Copper Alloy	Flush Mount Side Opening Unthreaded	0.128 "	3.25 mm	39	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm

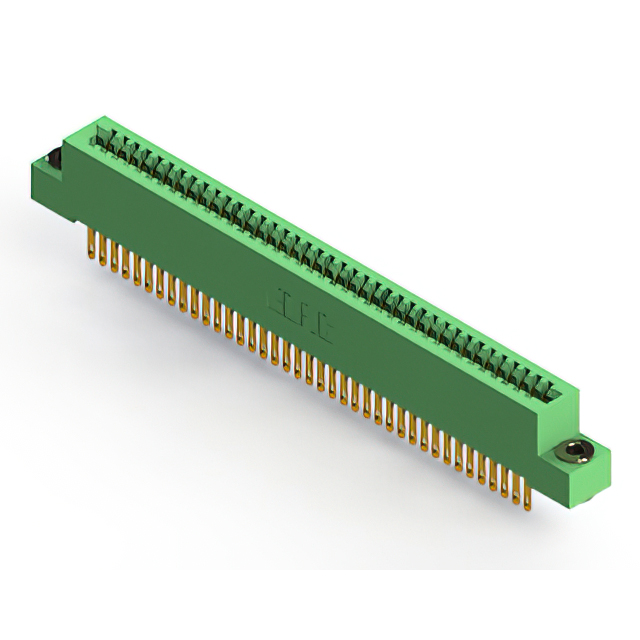

EDAC Inc. 842-078-500-203	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder Eyelet(s)	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	Dual	Green	78	2	Copper Alloy	Floating Bobbin Flush Mount	0.116 "	2.95 mm	39	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm

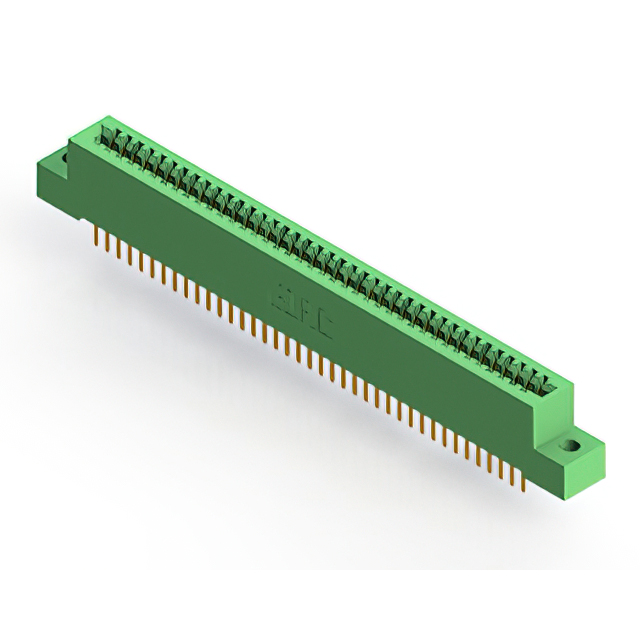

EDAC Inc. 842-078-520-202	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	Non Specified - Dual Edge	Solder	125 °C	-40 C	0.1 "	2.54 mm	Cantilever	Female	Dual	Green	78	2	Copper Alloy	Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	39	Through Hole	Gold	0.07 in 1.78 mm	0.054 in 1.37 mm
