74FCT163244 Series

3.3V 16-Bit Buffer/Line Driver

Manufacturer: Renesas Electronics Corporation

Catalog

3.3V 16-Bit Buffer/Line Driver

Part	Supplier Device Package	Voltage - Supply [Min]	Voltage - Supply [Max]	Number of Bits per Element	Number of Elements	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Package / Case [y]	Package / Case	Package / Case [y]	Logic Type	Package / Case	Package / Case [custom]
Renesas Electronics Corporation 74FCT163244CPVG	48-SSOP	2.7 V	3.6 V	4	4	3-State	85 °C	-40 °C	Surface Mount	8 mA	24 mA	0.295 in	48-BSSOP	7.5 mm	Buffer Non-Inverting

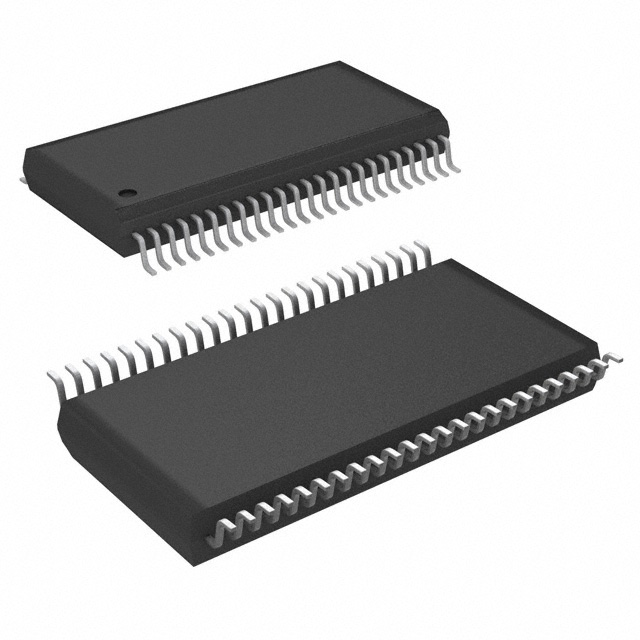

Renesas Electronics Corporation 74FCT163244APAG8	48-TSSOP	2.7 V	3.6 V	4	4	3-State	85 °C	-40 °C	Surface Mount	8 mA	24 mA		48-TFSOP		Buffer Non-Inverting	0.24 in	6.1 mm
Renesas Electronics Corporation 74FCT163244CPFG8		2.7 V	3.6 V	4	4	3-State	85 °C	-40 °C	Surface Mount	8 mA	24 mA		48-TFSOP		Buffer Non-Inverting	0.173 in 4.4 mm

Catalog

3.3V 16-Bit Buffer/Line Driver

Description

The 74FCT163244 16-bit high-speed, low-power buffer/line drivers offer bus/backplane interface capability with improved packing density. The three-state controls operate these devices in a Quad-Nibble, Dual-Byte, or single 16-bit word mode. The inputs can be driven from either 3.3V or 5V devices allowing the use of these devices as translators in a mixed 3.3V/5V supply system. Thus, the 74FCT163244 can be used as buffers to connect 5V components to a 3.3V bus. The device operates at -40 °C to +85 °C.
