5500207 Series

Manufacturer: DIALIGHT

Catalog

LED CBI 5MM GREEN DIFF RA

Part	Color	Current	Mounting Type	Voltage Rating	Configuration	Lens Type	Wavelength - Peak	Viewing Angle	Millicandela Rating
DIALIGHT 5500207804F	Green	30 mA	Right Angle Through Hole	2.1 V	Single
DIALIGHT 5500207010F	Green	30 mA	Right Angle Through Hole	2.1 V	Single	Diffused	565 nm	60 °	40 mcd
DIALIGHT 5500207807F
DIALIGHT 5500207805F	Green	30 mA	Right Angle Through Hole	2.1 V	Single

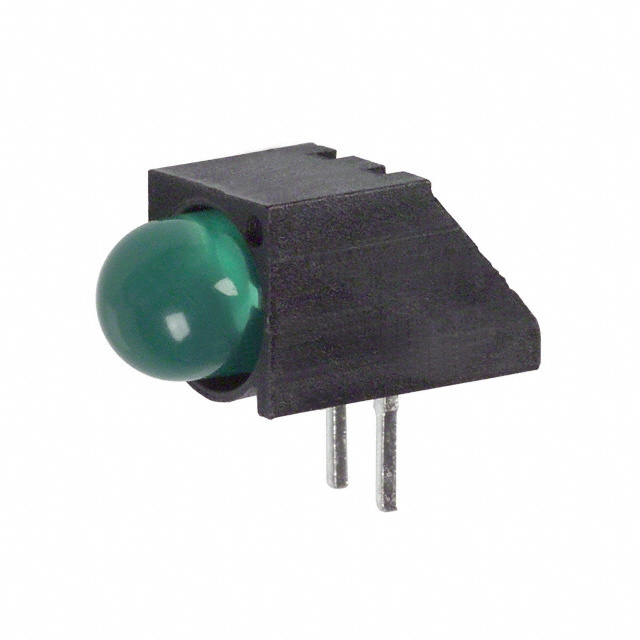

DIALIGHT 5500207F	Green	20 mA	Right Angle Through Hole	2.1 V	Single	Diffused	565 nm	60 °	12.3 mcd

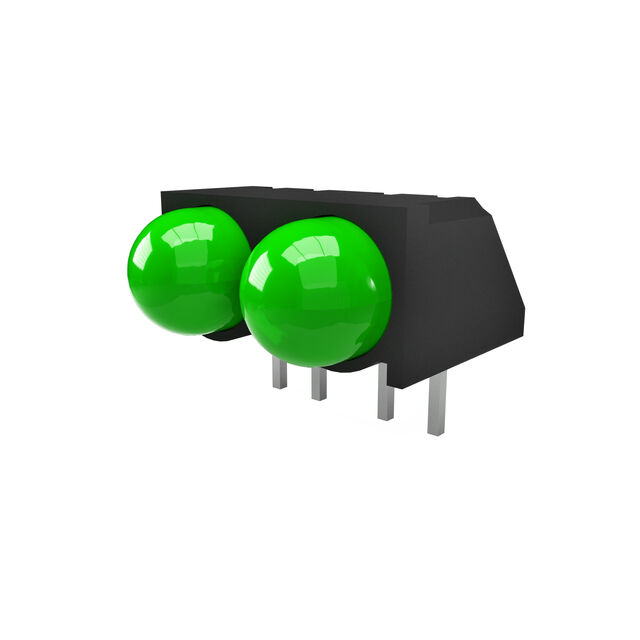

DIALIGHT 5500207002F	Green (x 2)	20 mA	Right Angle Through Hole	2.1 V	2 Wide	Diffused	565 nm	60 °	12.3 mcd
DIALIGHT 5500207802F	Green	30 mA	Right Angle Through Hole	2.1 V	Single
DIALIGHT 5500207806F	Green	30 mA	Right Angle Through Hole	2.1 V	Single
DIALIGHT 5500207100F	Green	30 mA	Right Angle Through Hole	2.1 V	Single	Diffused			12.3 mcd

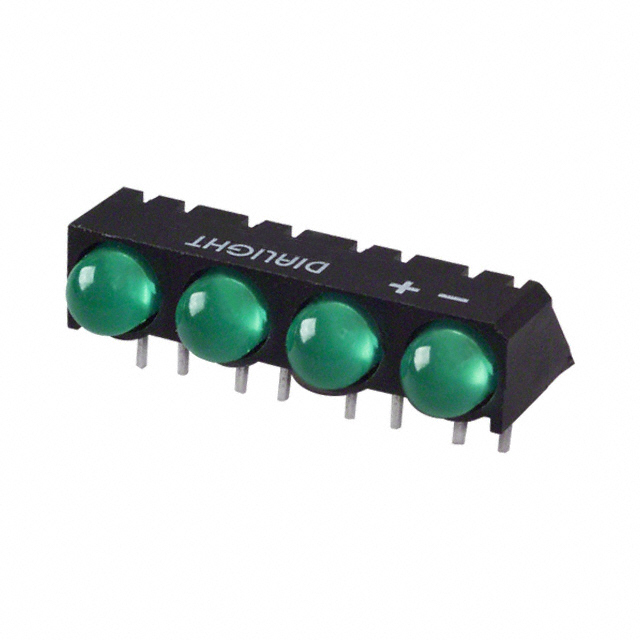

DIALIGHT 5500207004F	Green	20 mA	Right Angle Through Hole	2.1 V	4 Wide	Diffused	565 nm	60 °	12.3 mcd
