396-090 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FMALE 90POS 0.125
| Part | Material - Insulation | Termination Rows [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Contact Material | Mounting Type | Card Type | Pitch | Pitch | Contact Type | Color | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Read Out | Number of Positions | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | Gold | Copper Alloy | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Cantilever | Black | 0.25 Ám | 10 Áin | 45 | Dual | 90 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Female | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder Wire Wrap | -40 C | 105 ░C | Gold | Copper Alloy | Right Angle Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Cantilever | Black | 0.25 Ám | 10 Áin | 45 | Dual | 90 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Female | Flush Mount Side Opening Unthreaded | 0.128 " | 3.25 mm | |

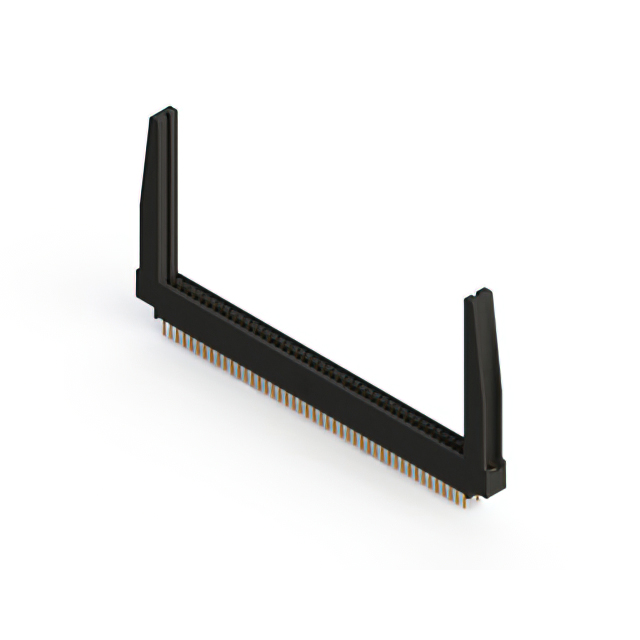

 EDAC Inc. | Polyester Thermoplastic | 2 | Wire Wrap | -40 C | 105 ░C | Gold | Copper Alloy | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Cantilever | Black | 0.25 Ám | 10 Áin | 45 | Dual | 90 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Female | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder Wire Wrap | -40 C | 105 ░C | Gold | Copper Alloy | Right Angle Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Cantilever | Black | 0.25 Ám | 10 Áin | 45 | Dual | 90 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Female | Floating Bobbin Flush Mount | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder Wire Wrap | -40 C | 105 ░C | Gold | Copper Alloy | Right Angle Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Cantilever | Black | 0.25 Ám | 10 Áin | 45 | Dual | 90 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Female | Flush Mount M3 Threaded Insert Top Opening | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | Gold | Copper Alloy | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Cantilever | Black | 0.25 Ám | 10 Áin | 45 | Dual | 90 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm | |

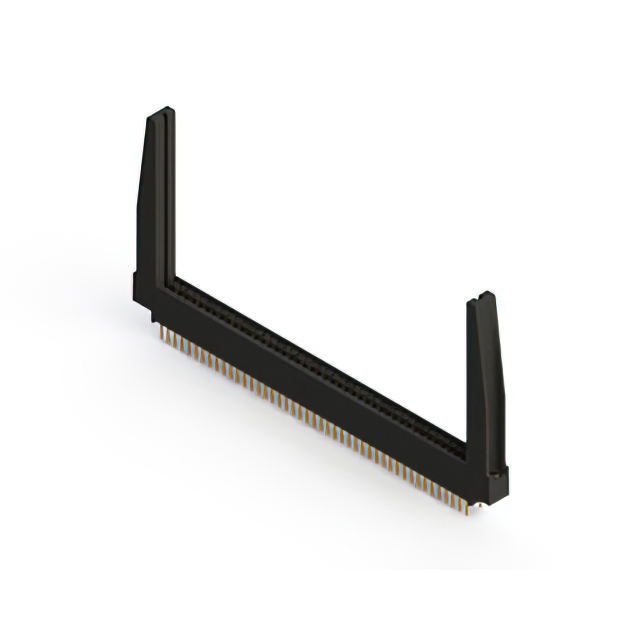

 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | Gold | Copper Alloy | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Cantilever | Black | 0.25 Ám | 10 Áin | 45 | Dual | 90 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Female | 4-40 Threaded Insert Top Mount Opening | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder | -40 C | 105 ░C | Gold | Copper Alloy | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Cantilever | Black | 0.25 Ám | 10 Áin | 45 | Dual | 90 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Female | Flush Mount Top Opening Unthreaded | 0.156 " | 3.96 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Wire Wrap | -40 C | 105 ░C | Gold | Copper Alloy | Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Cantilever | Black | 0.25 Ám | 10 Áin | 45 | Dual | 90 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Female | Side Mount Opening Unthreaded | 0.128 " | 3.25 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Solder Wire Wrap | -40 C | 105 ░C | Gold | Copper Alloy | Right Angle Through Hole | Non Specified - Dual Edge | 3.18 mm | 0.125 in | Cantilever | Black | 0.25 Ám | 10 Áin | 45 | Dual | 90 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Female | Floating Bobbin Top Mount Opening | 0.116 " | 2.95 mm |
