96571 Series

Manufacturer: Pflitsch

Catalog

CABLE FEEDTHROUGH 4-11MM M16

Part	Operating Temperature [Max]	Operating Temperature [Min]	Panel Hole Size	Panel Hole Size	Thread Size	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Color	Outside Cable Diameter (Max)	Outside Cable Diameter (Max) [Max] [diameter]	Material	Type	Includes	Thread Length	Thread Length	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Pflitsch 96571.7/15	500 °C	-60 °C	16 mm	0.63 in	M16x1.5	4 mm	0.157 in	Silver	11 mm	0.433 in	Stainless Steel	Cable Feedthrough	Sealing Ring

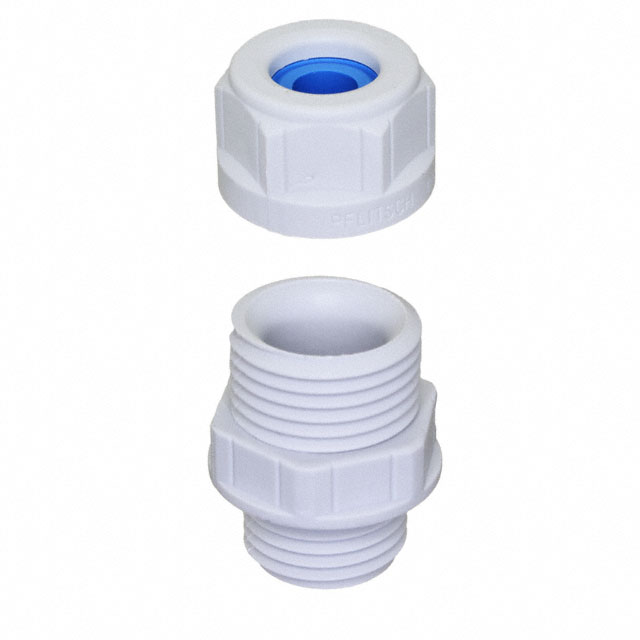

Pflitsch 96571.0	100 °C	-20 ░C	16 mm	0.63 in	M16x1.5			Light Gray		0.43 in	Polyamide (PA) Nylon	Cable Feedthrough		6.1 mm	0.24 in	IP68 - Dust Tight Waterproof NEMA 4X	10.92 mm	7.11 mm	0.28 in
