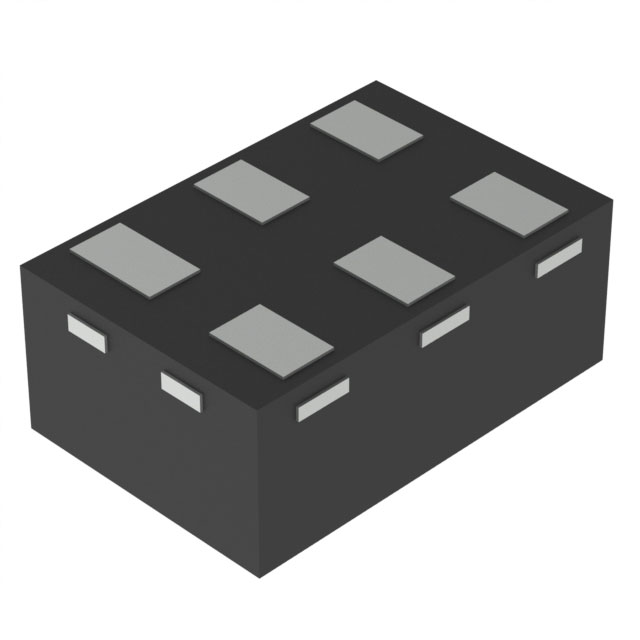

TPS3779-Q1 Series
Automotive, push-pull, dual-channel, low-power, high-accuracy voltage detector
Manufacturer: Texas Instruments
Catalog
Automotive, push-pull, dual-channel, low-power, high-accuracy voltage detector
Key Features
• Qualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BTwo-Channel Detectors in Small PackagesHigh-Accuracy Threshold and Hysteresis: 1.0%Low Quiescent Current: 2 µA (typ)Adjustable Detection Voltage Down to 1.2 V5% and 10% Hysteresis OptionsTemperature Range: –40°C to +125°CPush-Pull (TPS3779-Q1) and Open-Drain (TPS3780-Q1) Output OptionsAvailable in an SOT-23 PackageQualified for Automotive ApplicationsAEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BTwo-Channel Detectors in Small PackagesHigh-Accuracy Threshold and Hysteresis: 1.0%Low Quiescent Current: 2 µA (typ)Adjustable Detection Voltage Down to 1.2 V5% and 10% Hysteresis OptionsTemperature Range: –40°C to +125°CPush-Pull (TPS3779-Q1) and Open-Drain (TPS3780-Q1) Output OptionsAvailable in an SOT-23 Package
Description
AI
The TPS3779-Q1 and TPS3780-Q1 are a family of high-accuracy, two-channel voltage detectors featuring low power and small solution size. The SENSE1 and SENSE2 inputs include hysteresis to reject brief glitches, thus ensuring stable output operation without false triggering. This device family offers different factory-set hysteresis options of 5% or 10%.
The TPS3779-Q1 and TPS3780-Q1 have adjustable SENSEx inputs that can be configured by an external resistor divider. When the voltage at the SENSE1 or SENSE2 input goes below the falling threshold, OUT1 or OUT2 is driven low, respectively. When SENSE1 or SENSE2 rises above the rising threshold, OUT1 or OUT2 goes high, respectively.
The devices have a very low quiescent current of 2 µA (typical) and provide a precise, space-conscious solution for voltage detection suitable for low-power, system-monitoring, and portable applications. The TPS3779-Q1 and TPS3780-Q1 operate from 1.5 V to 5.5 V, over the –40°C to +125°C temperature range.
The TPS3779-Q1 and TPS3780-Q1 are a family of high-accuracy, two-channel voltage detectors featuring low power and small solution size. The SENSE1 and SENSE2 inputs include hysteresis to reject brief glitches, thus ensuring stable output operation without false triggering. This device family offers different factory-set hysteresis options of 5% or 10%.
The TPS3779-Q1 and TPS3780-Q1 have adjustable SENSEx inputs that can be configured by an external resistor divider. When the voltage at the SENSE1 or SENSE2 input goes below the falling threshold, OUT1 or OUT2 is driven low, respectively. When SENSE1 or SENSE2 rises above the rising threshold, OUT1 or OUT2 goes high, respectively.
The devices have a very low quiescent current of 2 µA (typical) and provide a precise, space-conscious solution for voltage detection suitable for low-power, system-monitoring, and portable applications. The TPS3779-Q1 and TPS3780-Q1 operate from 1.5 V to 5.5 V, over the –40°C to +125°C temperature range.
