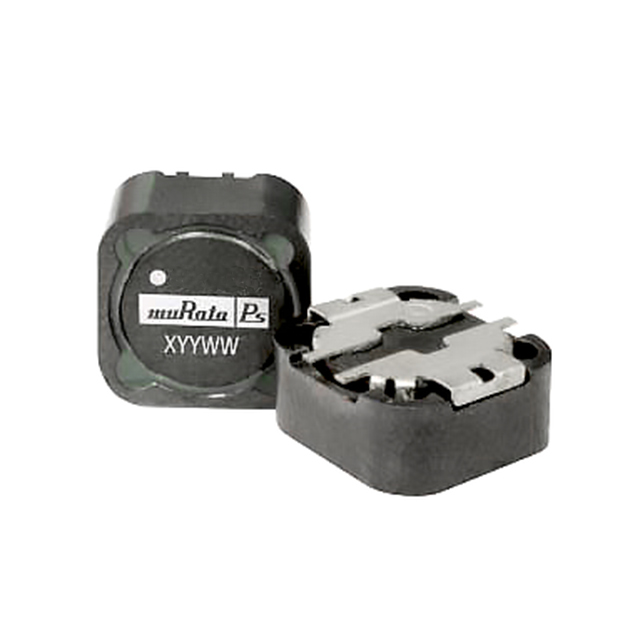

48 Series

Catalog

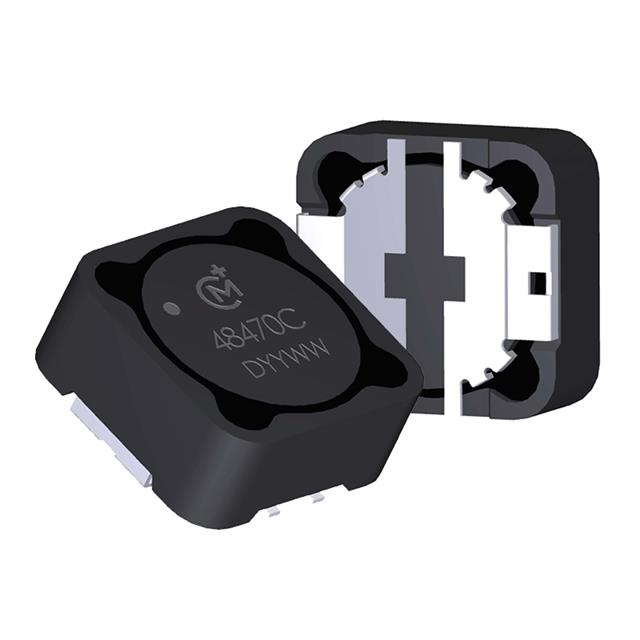

FIXED IND 15UH 3.2A 77.4MOHM SMD

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Inductance	Inductance Frequency - Test	DC Resistance (DCR)	Current Rating (Amps)	Shielding	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Q @ Freq	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq [custom]
Murata Electronics 48150C	12.2 mm	0.48 in	12.2 mm	0.48 in	Wirewound	0.244 in	6.2 mm	Surface Mount	15 µH	10 kHz	77.4 mOhm	3.2 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C
Murata Electronics 48681SC	12.2 mm	0.48 in	12.2 mm	0.48 in	Wirewound			Surface Mount	680 µH	10 kHz		660 mA	Shielded	Nonstandard 4 Lead	85 °C	-40 C	6 mm	0.236 "	20 %	18 800 kHz	1.25 Ohm	4 MHz
Murata Electronics 486R8SC	12.2 mm	0.48 in	12.2 mm	0.48 in	Wirewound			Surface Mount	6.8 µH	10 kHz		5.1 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C	6 mm	0.236 "	30 %		21 mOhm	26 MHz	34	1 MHz
Murata Electronics 48102SC	12.2 mm	0.48 in	12.2 mm	0.48 in	Wirewound			Surface Mount	1 mH	10 kHz		0.52 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C	6 mm	0.236 "	20 %	17 800 kHz	1.85 Ohm	4 MHz
Murata Electronics 48151SC	12.2 mm	0.48 in	12.2 mm	0.48 in	Wirewound			Surface Mount	150 µH	10 kHz		1.35 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C	6 mm	0.236 "	20 %	23 800 kHz	280 mOhm	6 MHz
Murata Electronics 48471SC	12.2 mm	0.48 in	12.2 mm	0.48 in	Wirewound			Surface Mount	470 µH	10 kHz		760 mA	Shielded	Nonstandard 4 Lead	85 °C	-40 C	6 mm	0.236 "	20 %			4 MHz	20		800 kHz
Murata Electronics 48220C	12.2 mm	0.48 in	12.2 mm	0.48 in	Wirewound	0.244 in	6.2 mm	Surface Mount	22 µH	10 kHz		2.6 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C					119 mOhm
Murata Electronics 48330C	12.2 mm	0.48 in	12.2 mm	0.48 in	Wirewound	0.244 in	6.2 mm	Surface Mount	33 µH	10 kHz		2.1 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C					184 mOhm
Murata Electronics 48221SC	12.2 mm	0.48 in	12.2 mm	0.48 in	Wirewound			Surface Mount	220 µH	10 kHz		1 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C	6 mm	0.236 "	20 %	23 800 kHz	430 mOhm	5 MHz
Murata Electronics 48330SC	12.2 mm	0.48 in	12.2 mm	0.48 in	Wirewound			Surface Mount	33 µH	10 kHz		2.8 A	Shielded	Nonstandard 4 Lead	85 °C	-40 C	6 mm	0.236 "	20 %		73 mOhm	11 MHz	31	1 MHz
