TPS7A52-Q1 Series

Automotive 2-A, low-VIN (1.1-V), low-noise, high-accuracy, ultra-low-dropout (LDO) voltage regulator

Catalog

Automotive 2-A, low-VIN (1.1-V), low-noise, high-accuracy, ultra-low-dropout (LDO) voltage regulator

Part	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Protection Features	Mounting Type	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Control Features	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Number of Regulators	Output Type	Voltage Dropout (Max) [Max]	Current - Quiescent (Iq)	Current - Output	Current - Supply (Max) [Max]	Package / Case	Voltage - Input (Max) [Max]	Grade	Qualification	PSRR [Max]	PSRR [Min]	Channels per IC	Voltage - Output [Max]	Voltage - Output [Min]	Board Type	Regulator Type	Utilized IC / Part	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents
Texas Instruments TPS7A5201RPSR	Positive	-40 °C	125 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	12-VQFN-HR	2.2	2.5	Enable Power Good Soft Start	5.15 V	0.8 V	1	Adjustable	0.225 V	4 mA	2 A	5 mA	12-VFQFN	6.5 V
Texas Instruments TPS7A5201RPST	Positive	-40 °C	125 ¯C	Over Current Over Temperature Under Voltage Lockout (UVLO)	Surface Mount	12-VQFN-HR	2.2	2.5	Enable Power Good Soft Start	5.15 V	0.8 V	1	Adjustable	0.225 V	4 mA	2 A	5 mA	12-VFQFN	6.5 V
Texas Instruments TPS7A5201WQRTKRQ1	Positive	-40 °C	150 °C	Over Temperature Reverse Polarity	Surface Mount	20-QFN (4x4)			Enable	5.2 V	0.8 V	1	Adjustable	0.34 V		2 A		20-VFQFN Exposed Pad	6.5 V	Automotive	AEC-Q100	42 dB	25 dB
Texas Instruments TPS7A52EVM-002																2 A								1 - Single	5 V	0.8 V	Fully Populated	Positive Adjustable	TPS7A52-Q1	6.5 V	1.1 V	Board(s)
Texas Instruments TPS7A52EVM-031																2 A								1 - Single	5 V	0.8 V	Fully Populated	Positive Adjustable	TPS7A52-Q1	6.5 V	1.1 V	Board(s)

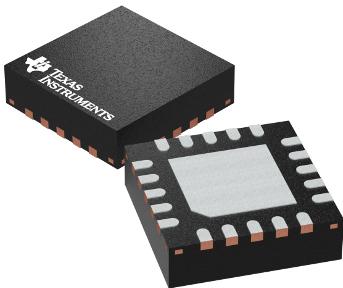

Texas Instruments TPS7A5201QRGRRQ1	Positive	-40 °C	150 °C	Over Temperature Reverse Polarity	Surface Mount				Enable	5.2 V	0.8 V	1	Adjustable	0.3 V		2 A		20-VFQFN Exposed Pad	6.5 V	Automotive	AEC-Q100	42 dB	25 dB

Catalog

Automotive 2-A, low-VIN (1.1-V), low-noise, high-accuracy, ultra-low-dropout (LDO) voltage regulator

Key Features

• Qualified for Automotive ApplicationsAEC-Q100 Qualified for Automotive Applications:Temperature Grade 1: –40°C ≤ TA≤ +125°CHBM ESD Classification Level 2CDM ESD Classification Level C4AExtended Junction Temperature (TJ) Range: –40°C to +150°CInput Voltage Range:Without BIAS: 1.4 V to 6.5 VWith BIAS: 1.1 V to 6.5 VAdjustable Output Voltage Range: 0.8 V to 5.2 VLow Dropout: 115 mV (max) at 2 A With BIASOutput Voltage Noise: 4.4 µVRMS1% (max) Accuracy Over Line, Load, and Temperature With BIASPower-Supply Ripple Rejection:40 dB at 500 kHzAdjustable Soft-Start Inrush ControlOpen-Drain, Power-Good (PG) OutputPackages:3.5-mm × 3.5-mm, 20-Pin VQFN4-mm × 4-mm, 20-Pin VQFNP With Wettable Flanks and High CTE (12 ppm/°C) Mold CompoundQualified for Automotive ApplicationsAEC-Q100 Qualified for Automotive Applications:Temperature Grade 1: –40°C ≤ TA≤ +125°CHBM ESD Classification Level 2CDM ESD Classification Level C4AExtended Junction Temperature (TJ) Range: –40°C to +150°CInput Voltage Range:Without BIAS: 1.4 V to 6.5 VWith BIAS: 1.1 V to 6.5 VAdjustable Output Voltage Range: 0.8 V to 5.2 VLow Dropout: 115 mV (max) at 2 A With BIASOutput Voltage Noise: 4.4 µVRMS1% (max) Accuracy Over Line, Load, and Temperature With BIASPower-Supply Ripple Rejection:40 dB at 500 kHzAdjustable Soft-Start Inrush ControlOpen-Drain, Power-Good (PG) OutputPackages:3.5-mm × 3.5-mm, 20-Pin VQFN4-mm × 4-mm, 20-Pin VQFNP With Wettable Flanks and High CTE (12 ppm/°C) Mold Compound

Description

The TPS7A52 is a low-noise (4.4 µVRMS), ultra-low dropout linear regulator (LDO) capable of sourcing 2 A with only 65 mV of maximum dropout. The device output voltage is adjustable from 0.8 V to 5.2 V using an external resistor divider. The combination of low noise (4.4 µVRMS), high PSRR, and high output current capability makes the TPS7A52 an excellent choice to power noise-sensitive components such as those found in high-speed communications, video, medical, or test-and-measurement applications. The high performance of this device limits power-supply-generated phase noise and clock jitter, making this device ideal for powering high-performance serializer and deserializer (SerDes), analog-to-digital converters (ADCs), and digital-to-analog converters (DACs). Specifically, RF amplifiers benefit from the high performance and 5.2-V output capability of the device. For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] requiring low-input voltage, low-output (LILO) voltage operation, the exceptional accuracy (0.5% over load and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A52 provides optimal system performance. As an adjustable voltage regulator, there is versatility in the design of the TPS7A52 that makes the device a component of choice for analog loads such as voltage-controlled oscillator (VCO), ADC, DAC, and imaging sensors and for digital loads such as SerDes, FPGAs, and DSPs. The TPS7A52 is a low-noise (4.4 µVRMS), ultra-low dropout linear regulator (LDO) capable of sourcing 2 A with only 65 mV of maximum dropout. The device output voltage is adjustable from 0.8 V to 5.2 V using an external resistor divider. The combination of low noise (4.4 µVRMS), high PSRR, and high output current capability makes the TPS7A52 an excellent choice to power noise-sensitive components such as those found in high-speed communications, video, medical, or test-and-measurement applications. The high performance of this device limits power-supply-generated phase noise and clock jitter, making this device ideal for powering high-performance serializer and deserializer (SerDes), analog-to-digital converters (ADCs), and digital-to-analog converters (DACs). Specifically, RF amplifiers benefit from the high performance and 5.2-V output capability of the device. For digital loads [such as application-specific integrated circuits (ASICs), field-programmable gate arrays (FPGAs), and digital signal processors (DSPs)] requiring low-input voltage, low-output (LILO) voltage operation, the exceptional accuracy (0.5% over load and temperature), remote sensing, excellent transient performance, and soft-start capabilities of the TPS7A52 provides optimal system performance. As an adjustable voltage regulator, there is versatility in the design of the TPS7A52 that makes the device a component of choice for analog loads such as voltage-controlled oscillator (VCO), ADC, DAC, and imaging sensors and for digital loads such as SerDes, FPGAs, and DSPs.
