ER3105 Series

Manufacturer: Altera

Catalog

Catalog

EVAL DC-DC BUCK CONVERTER .5A

Part	Main Purpose	Utilized IC / Part	Board Type	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents	Regulator Topology	Outputs and Type	Outputs and Type	Current - Output	Output Type	Synchronous Rectifier	Function	Package / Case	Supplier Device Package	Output Configuration	Voltage - Output (Min/Fixed)	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Switching [Min]	Frequency - Switching [Max]	Voltage - Output (Max) [Max]	Topology	Number of Outputs	Mounting Type	Voltage - Input (Max) [Max]	Contents

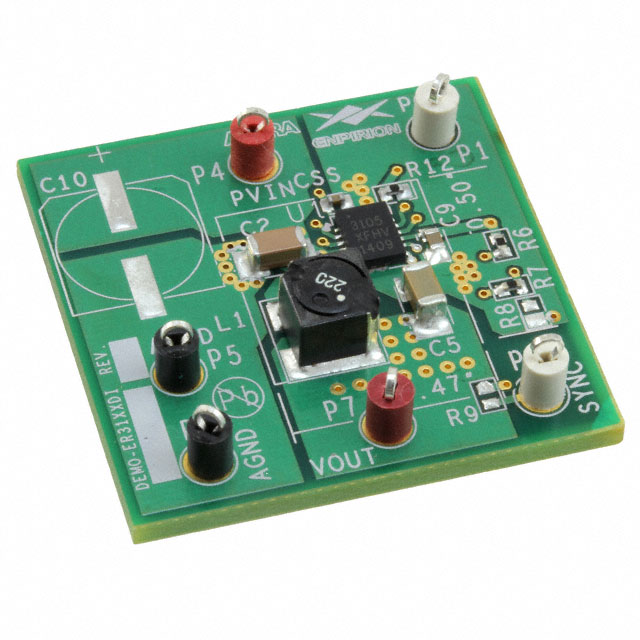

Altera EVB-ER3105DI	DC/DC Step Down	ER3105DI	Fully Populated	36 V	3 V	Board(s)	Buck	1	Non-Isolated	500 mA

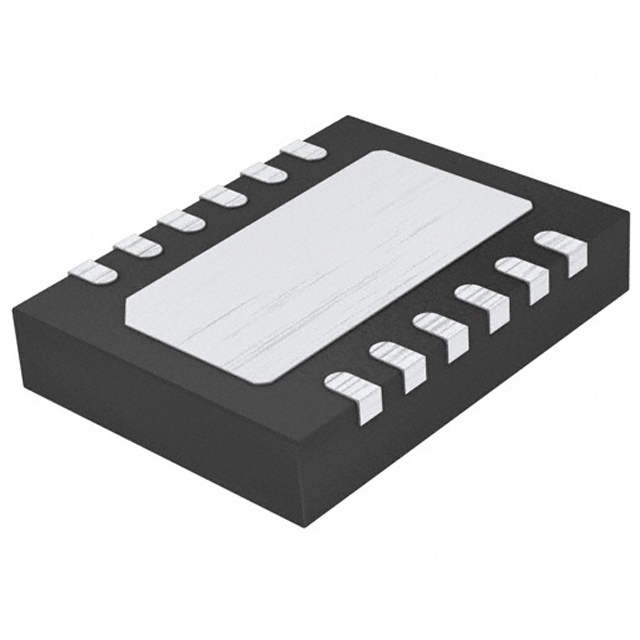

Altera ER3105DI										500 mA	Adjustable		Step-Down	12-VFDFN Exposed Pad	12-DFN (4x3)	Positive	0.6 V	3 V	125 °C	-40 °C	300 kHz	2 MHz	34 V	Buck	1	Surface Mount	36 V
Altera ER3105DI										500 mA	Adjustable		Step-Down	12-VFDFN Exposed Pad	12-DFN (4x3)	Positive	0.6 V	3 V	125 °C	-40 °C	300 kHz	2 MHz	34 V	Buck	1	Surface Mount	36 V
Altera EVB-ER3105DI	DC/DC Step Down	ER3105DI		36 V	3 V		Buck		1 Non-Isolated Output	500 mA																		Board(s)
