3SU1156 Series

Manufacturer: Siemens

Catalog

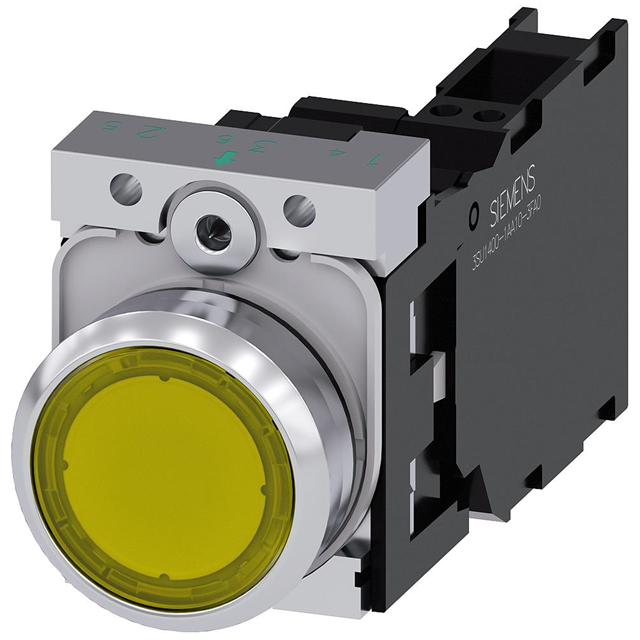

ILLUMINATED PUSHBUTTON. YELLOW

Part	Mechanical Life	Electrical Life	Illumination Voltage (Nominal)	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Type	Switch Function	Voltage Rating - DC	Voltage Rating - AC	Current Rating (Amps)	Ingress Protection	Circuit	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Type	Illumination Type, Color
Siemens 3SU11560AB301FA0	3000000 Cycles	10000000 Cycles	230 VAC	Yellow	22.3 mm	Illuminated Standard	Off-Mom On-Mom	500 V	500 V	10 A	IP66 IP67 IP69K	DPST-NO/NC	Screw Terminal	Panel Mount Front	-25 °C	70 °C	Button Round	LED Yellow

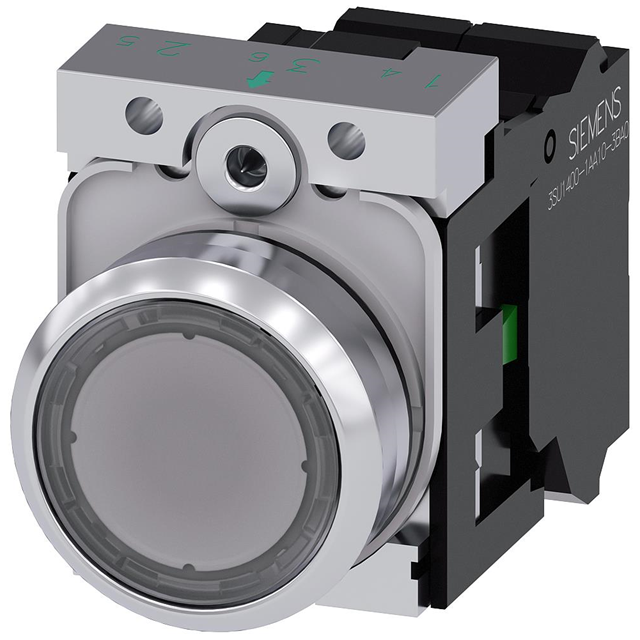

Siemens 3SU11560AB703BA0	3000000 Cycles	10000000 Cycles	230 VAC	Clear	22.3 mm	Illuminated Standard	Off-Mom	500 V	500 V	10 A	IP66 IP67 IP69K	SPST-NO	Spring Terminal	Panel Mount Front	-25 °C	70 °C	Button Round	LED White

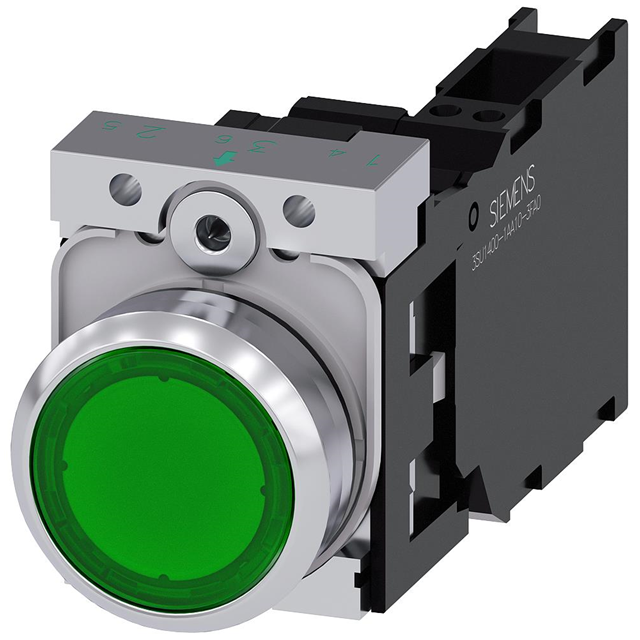

Siemens 3SU11560AB403FA0	3000000 Cycles	10000000 Cycles	230 VAC	Green	22.3 mm	Illuminated Standard	Off-Mom On-Mom	500 V	500 V	10 A	IP66 IP67 IP69K	DPST-NO/NC	Spring Terminal	Panel Mount Front	-25 °C	70 °C	Button Round	Green LED

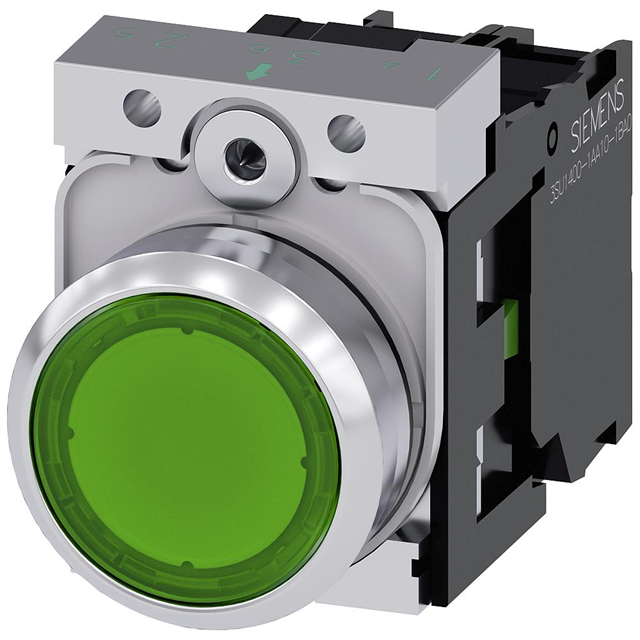

Siemens 3SU11560AB401BA0	3000000 Cycles	10000000 Cycles	230 VAC	Green	22.3 mm	Illuminated Standard	Off-Mom	500 V	500 V	10 A	IP66 IP67 IP69K	SPST-NO	Screw Terminal	Panel Mount Front	-25 °C	70 °C	Button Round	Green LED

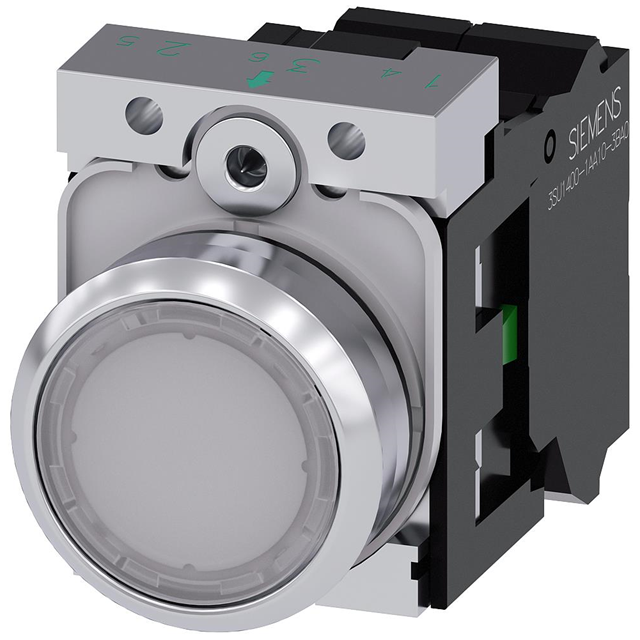

Siemens 3SU11560AB603BA0	3000000 Cycles	10000000 Cycles	230 VAC	White	22.3 mm	Illuminated Standard	Off-Mom	500 V	500 V	10 A	IP66 IP67 IP69K	SPST-NO	Spring Terminal	Panel Mount Front	-25 °C	70 °C	Button Round	LED White

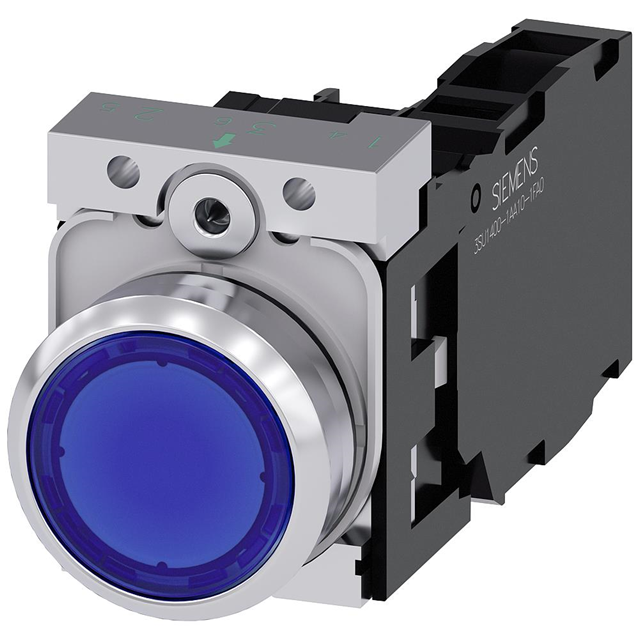

Siemens 3SU11560AB501FA0	3000000 Cycles	10000000 Cycles	230 VAC	Blue	22.3 mm	Illuminated Standard	Off-Mom On-Mom	500 V	500 V	10 A	IP66 IP67 IP69K	DPST-NO/NC	Screw Terminal	Panel Mount Front	-25 °C	70 °C	Button Round	Blue LED

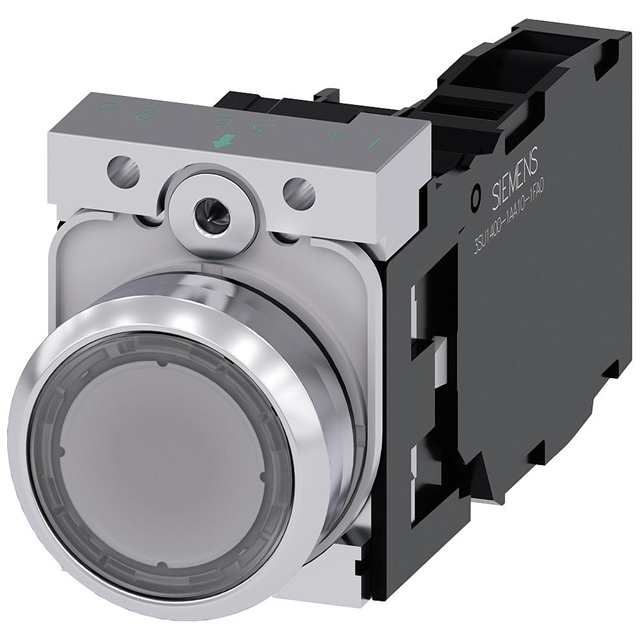

Siemens 3SU11560AB701FA0	3000000 Cycles	10000000 Cycles	230 VAC	Clear	22.3 mm	Illuminated Standard	Off-Mom On-Mom	500 V	500 V	10 A	IP66 IP67 IP69K	DPST-NO/NC	Screw Terminal	Panel Mount Front	-25 °C	70 °C	Button Round	LED White
Siemens 3SU11560AB303FA0	3000000 Cycles	10000000 Cycles	230 VAC	Yellow	22.3 mm	Illuminated Standard	Off-Mom On-Mom	500 V	500 V	10 A	IP66 IP67 IP69K	DPST-NO/NC	Spring Terminal	Panel Mount Front	-25 °C	70 °C	Button Round	LED Yellow

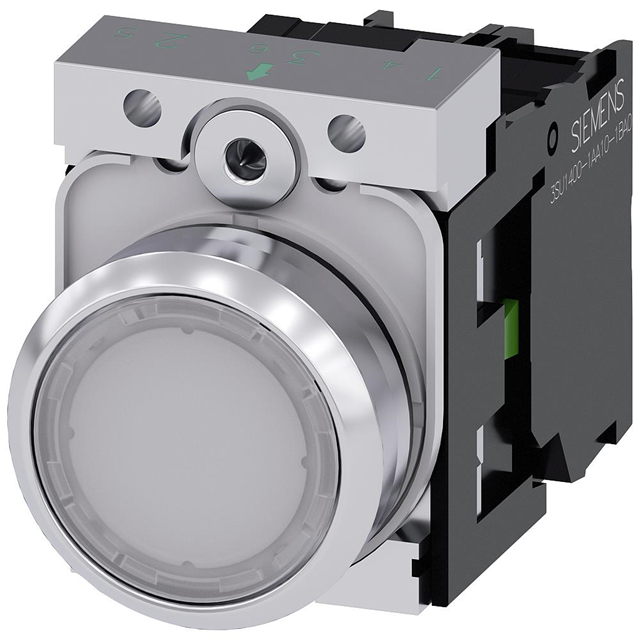

Siemens 3SU11560AB601BA0	3000000 Cycles	10000000 Cycles	230 VAC	White	22.3 mm	Illuminated Standard	Off-Mom	500 V	500 V	10 A	IP66 IP67 IP69K	SPST-NO	Screw Terminal	Panel Mount Front	-25 °C	70 °C	Button Round	LED White

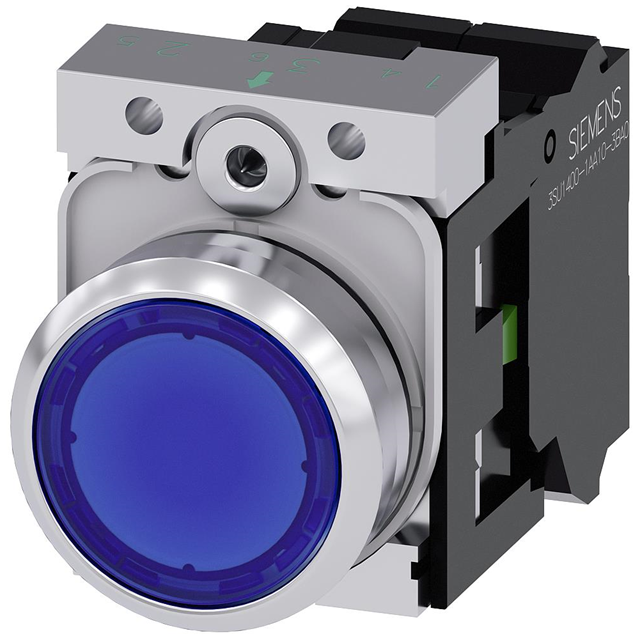

Siemens 3SU11560AB503BA0	3000000 Cycles	10000000 Cycles	230 VAC	Blue	22.3 mm	Illuminated Standard	Off-Mom	500 V	500 V	10 A	IP66 IP67 IP69K	SPST-NO	Spring Terminal	Panel Mount Front	-25 °C	70 °C	Button Round	Blue LED
