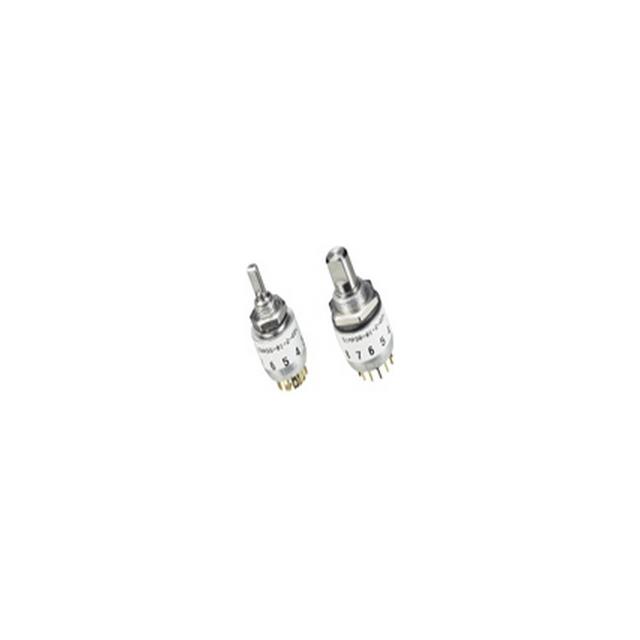

51KSP30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 4POS 150MA 115V
| Part | Panel Cutout Dimensions [diameter] | Number of Positions | Contact Timing | Index Stops | Depth Behind Panel [custom] | Number of Decks [custom] | Termination Style | Angle of Throw | Actuator Length [x] | Features | Voltage Rating - AC | Circuit per Deck | Number of Poles per Deck | Voltage Rating - DC | Mounting Type | Current Rating (Amps) | Actuator Type | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 9.65 mm | 4 | Non-Shorting (BBM) | Fixed | 13.64 mm | 1 | PC Pin | 30 ° | 9.53 mm | Shaft and Panel Sealed | 115 V | 3P4T | 3 | 28 V | Panel Mount Through Hole | 150 mA 200 mA | Flatted (6.35mm Dia) | Gold |
Grayhill Inc. | 9.65 mm | 12 | Shorting (MBB) | Fixed | 13.64 mm | 1 | PC Pin | 30 ° | 9.53 mm | Shaft and Panel Sealed | 115 V | SP12T | 1 | 28 V | Panel Mount Through Hole | 150 mA 200 mA | Flatted (6.35mm Dia) | Gold |
Grayhill Inc. | 9.65 mm | Non-Shorting (BBM) | Fixed | 13.64 mm | 1 | PC Pin | 30 ° | 9.53 mm | Shaft and Panel Sealed | 115 V | DP3T | 2 | 28 V | Panel Mount Through Hole | 150 mA 200 mA | Flatted (6.35mm Dia) | Gold | |
Grayhill Inc. | 9.65 mm | 12 | Shorting (MBB) | Continuous | 13.64 mm | 1 | PC Pin | 30 ° | 9.53 mm | Shaft and Panel Sealed | 115 V | SP12T | 1 | 28 V | Panel Mount Through Hole | 150 mA 200 mA | Flatted (6.35mm Dia) | Gold |
 Grayhill Inc. | 9.65 mm | 2 | Non-Shorting (BBM) | Fixed | 13.64 mm | 1 | PC Pin | 30 ° | 9.53 mm | Shaft and Panel Sealed | 115 V | DPDT | 2 | 28 V | Panel Mount Through Hole | 150 mA 200 mA | Flatted (6.35mm Dia) | Gold |
Grayhill Inc. | 9.65 mm | Non-Shorting (BBM) | Fixed | 13.64 mm | 1 | PC Pin | 30 ° | 9.53 mm | Shaft and Panel Sealed | 115 V | 4P3T | 28 V | Panel Mount Through Hole | 150 mA 200 mA | Flatted (6.35mm Dia) | Gold | ||
Grayhill Inc. | 9.65 mm | 11 | Non-Shorting (BBM) | Fixed | 13.64 mm | 1 | PC Pin | 30 ° | 9.53 mm | Shaft and Panel Sealed | 115 V | SP11T | 1 | 28 V | Panel Mount Through Hole | 150 mA 200 mA | Flatted (6.35mm Dia) | Gold |
Grayhill Inc. | Shorting (MBB) | Fixed | 13.64 mm | 1 | PC Pin | 30 ° | 9.53 mm | Shaft and Panel Sealed | 115 V | 4P3T | 28 V | Panel Mount Through Hole | 150 mA 200 mA | Flatted (6.35mm Dia) | Gold | |||
Grayhill Inc. | 9.65 mm | 6 | Shorting (MBB) | Fixed | 13.64 mm | 1 | PC Pin | 30 ° | 9.53 mm | Shaft and Panel Sealed | 115 V | DP6T | 2 | 28 V | Panel Mount Through Hole | 150 mA 200 mA | Flatted (6.35mm Dia) | Gold |
 Grayhill Inc. |
