073216 Series
Manufacturer: Molex
Beta
⌘K
50 OHMS TNC R/A PCB RECEP
| Part | Includes | Contact Termination | Mounting Feature | Body Material | Connector Style | Body Finish | Connector Type | Number of Ports | Mating Cycles | Center Contact Material | Shield Termination | Ingress Protection | Mounting Type | Voltage Rating | Center Contact Plating | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Impedance | Frequency - Max [Max] | Cable Group | Insertion Loss |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | |||||||||||||||||||||||
 Molex | 1 Connector 1 Lockwasher 1 Nut | Solder | Bulkhead - Front Side Nut | Brass | TNC | Nickel | Female Socket Jack | 1 | 500 | Brass | Solder | IP68 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 500 V | Gold | Silver | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | |||

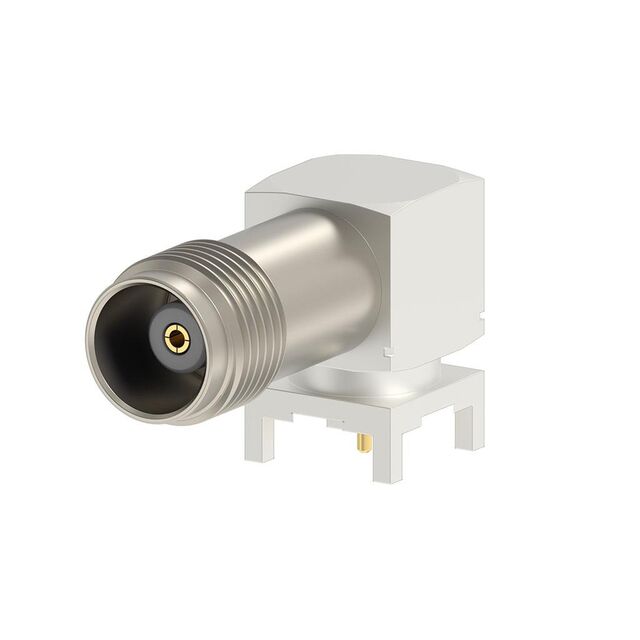

Molex | Solder | Zinc | TNC | Nickel | Female Socket Receptacle | 1 | 500 | Phosphor Bronze | Solder | Through Hole Right Angle | 500 V | Gold | Silver | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | 11 GHz | |||||

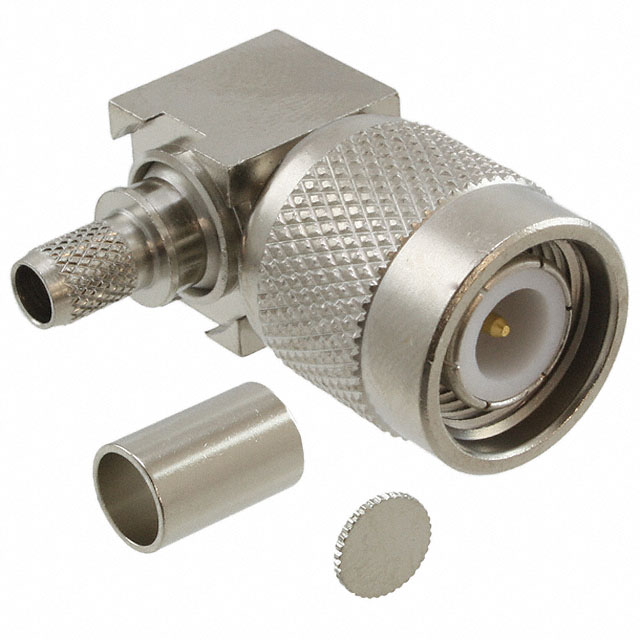

 Molex | 1 Connector 1 End Cap 1 Ferrule | Solder | Brass | TNC | Nickel | Male Pin Plug | 1 | 500 | Brass | Crimp | Free Hanging (In-Line) Right Angle | 500 V | Gold | Silver | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | 141 303 RG-58 | ||||

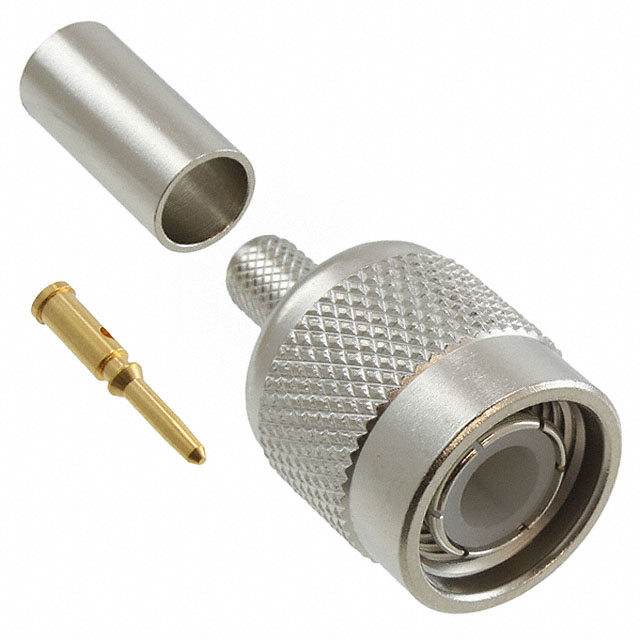

 Molex | 1 Connector 1 Contact 1 Ferrule | Solder | Brass | TNC | Nickel | Male Pin Plug | 1 | 500 | Brass | Crimp | Free Hanging (In-Line) | 500 V | Gold | Silver | -65 ░C | 165 °C | Polypropylene (PP) | 50 Ohms | RG-58 | ||||
 Molex | |||||||||||||||||||||||

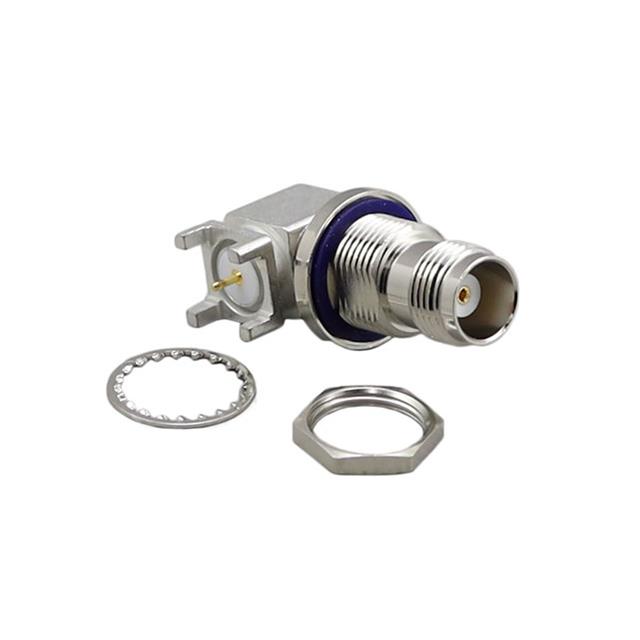

 Molex | 1 Connector 1 Lockwasher 1 Nut | Bulkhead - Front Side Nut | Brass | TNC | Nickel | Female Socket Jack | 1 | 500 | Brass | Solder | IP68 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 500 V | Gold | Silver | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | 11 GHz | 0.25 dB | ||
 Molex | |||||||||||||||||||||||

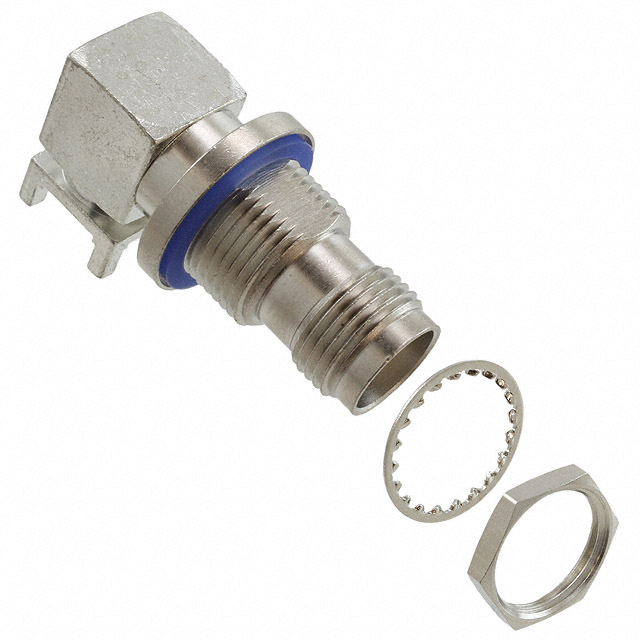

Molex | 1 Connector 1 Lockwasher 1 Nut | Bulkhead - Front Side Nut | Brass | RP-TNC | Nickel | Jack Male Pin | 1 | 500 | Brass | Solder | IP68 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | 500 V | Gold | Silver | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | 11 GHz | 0.25 dB | ||

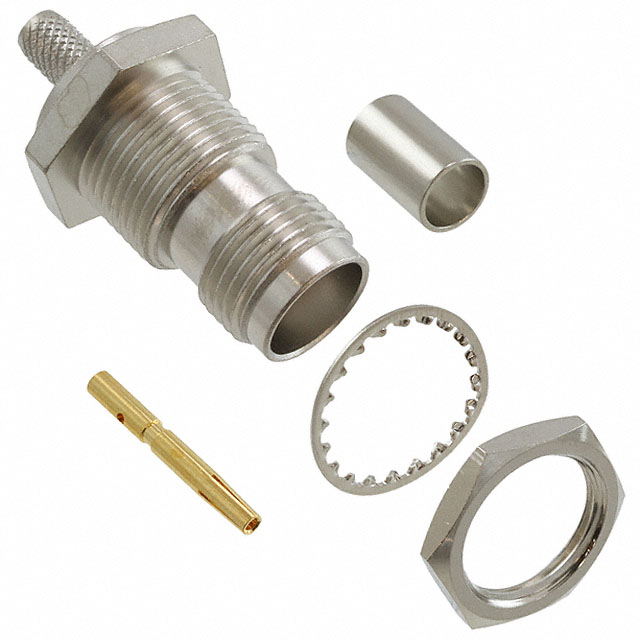

 Molex | 1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut | Crimp Solder | Bulkhead - Front Side Nut | Brass | TNC | Nickel | Female Socket Jack | 1 | 500 | Beryllium Copper | Crimp | 500 V | Gold | Silver | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 50 Ohms | 141 303 RG-58 |
