TNC Series
Manufacturer: Rosenberger
Beta
⌘K
RF CONNECTORS / COAXIAL CONNECTORS BULKHEAD JACK
| Part | Number of Ports | Shield Termination | Impedance | Fastening Type | Center Contact Material | Housing Color | Cable Group | Connector Style | Connector Type | Contact Termination | Mounting Type | Frequency - Max [Max] | Mounting Feature | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Voltage Rating | Mating Cycles | Center Contact Plating | Insertion Loss | Includes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | 1 | Crimp | 50 Ohms | Threaded | Beryllium Copper | Silver | 188A 316 RG-174A | TNC | Female Socket Jack | Crimp | Panel Mount | 10 GHz | Bulkhead - Front Side Nut | ||||||||||

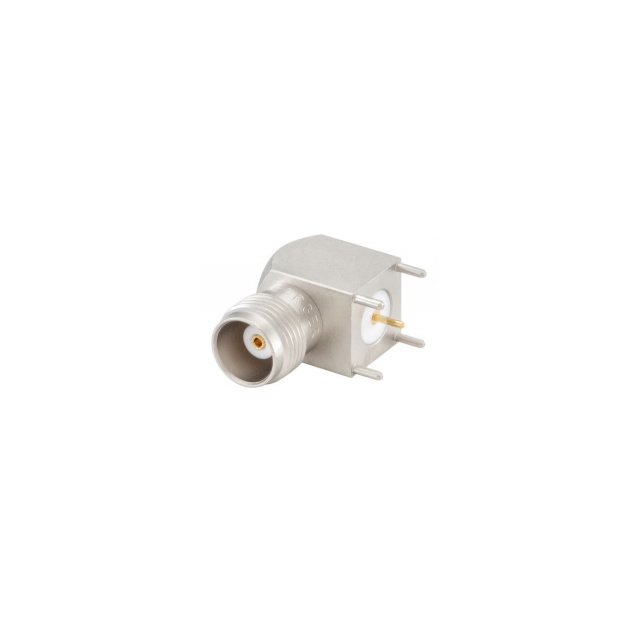

 Rosenberger | 1 | Solder | 50 Ohms | Threaded | Beryllium Copper | Silver | TNC | Female Socket Jack | Solder | Right Angle Through Hole | 10 GHz | Nickel | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | 500 V | 500 | Gold | ||||
 Rosenberger | 1 | Crimp | 50 Ohms | Threaded | Beryllium Copper | Silver | 141 RG-58C | TNC | Female Socket Jack | Crimp | Free Hanging (In-Line) | 10 GHz | White Bronze | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | 500 V | 500 | Gold | 0.05 dB | 1 Connector 1 Contact 1 Ferrule |
