MS182 Series

Catalog

RF SHIELD 0.669X0.732" SNAP FIT

Part	Length - Overall [x]	Length - Overall [x]	Mounting Type	Ventilation	Type	Width - Overall [x]	Width - Overall [x]	Height - Overall [z]	Height - Overall [z]	Length - Overall	Length - Overall	Width - Overall [y]	Width - Overall [y]

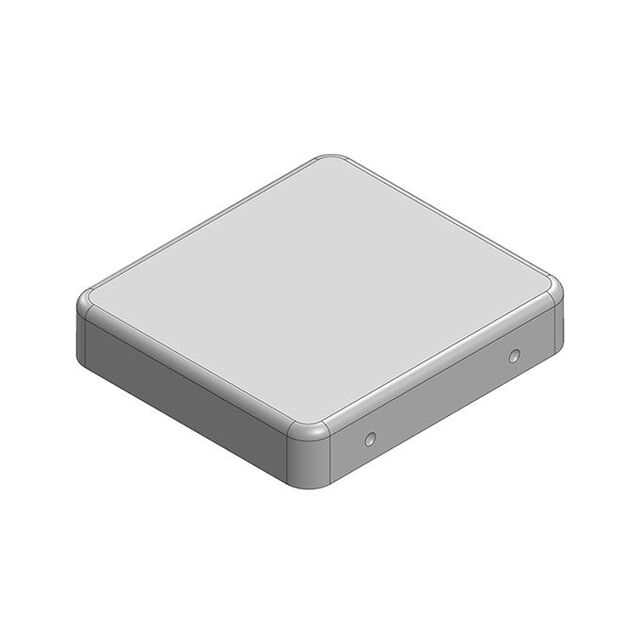

Masach Tech Ltd. MS182-10C-NS	0.732 in	18.6 mm	Snap Fit	Non-Vented	Cover	17 mm	0.669 in	3.5 mm	0.138 in

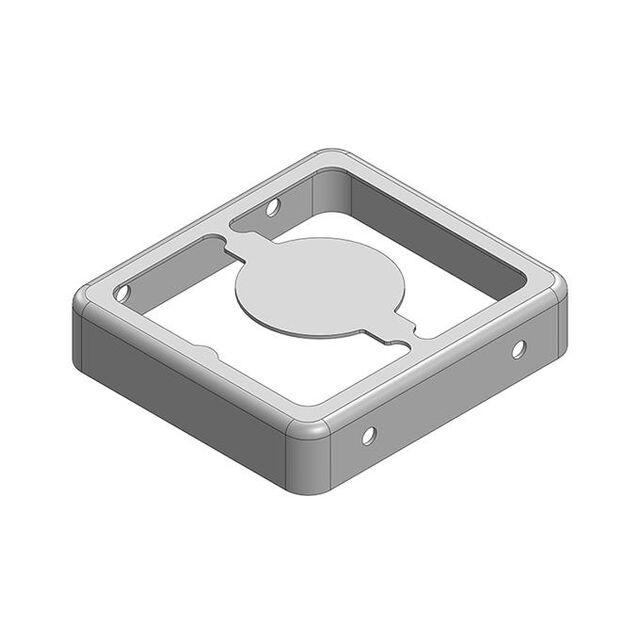

Masach Tech Ltd. MS182-10F-NS			Solder		Frame			3.8 mm	0.15 in	0.717 in	18.2 mm	0.654 in	16.6 mm

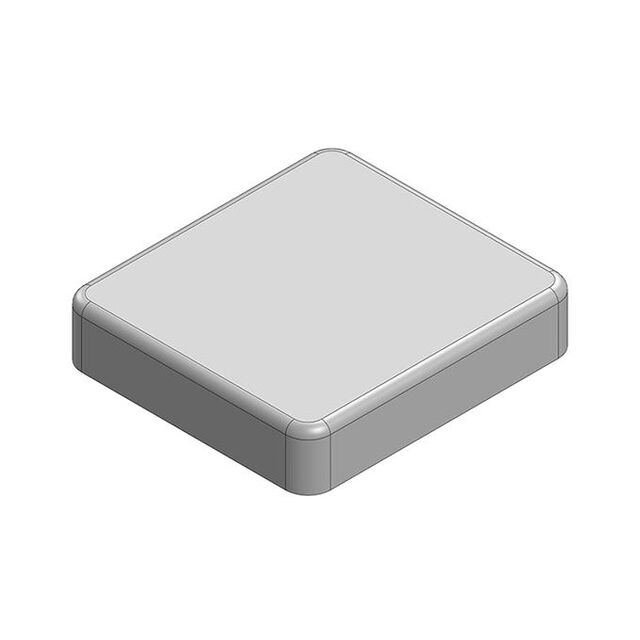

Masach Tech Ltd. MS182-10S-NS			Solder	Non-Vented	Shield 1-Piece			3.8 mm	0.15 in	0.717 in	18.2 mm	0.654 in	16.6 mm
