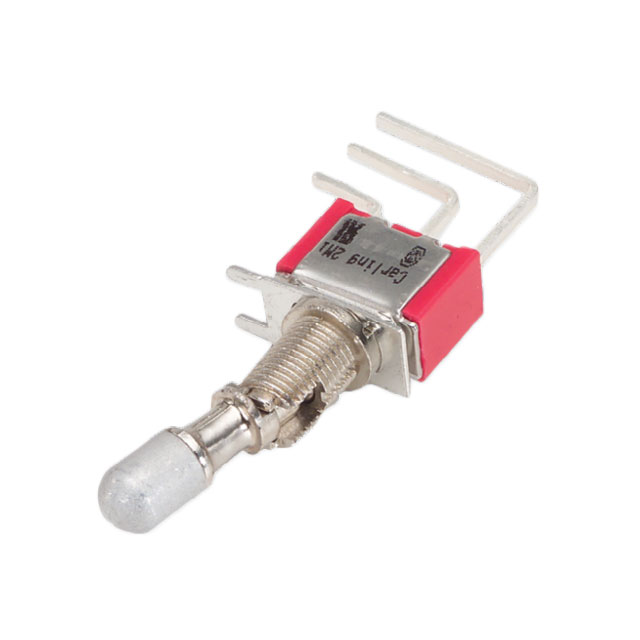

2M1-3P1 Series
Manufacturer: Carling Technologies
Beta
⌘K
SWITCH TOGGLE 3PDT 5A 125V
| Part | Actuator Material | Electrical Life | Voltage Rating - AC | Mounting Type | Actuator Type | Circuit | Panel Cutout Dimensions [diameter] | Current Rating (Amps) | Ingress Protection | Termination Style | Features | Actuator Length [x] | Operating Temperature [Max] | Operating Temperature [Min] | Bushing Thread | Switch Function | Voltage Rating - DC | Illumination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | Brass Chrome Plated | 50000 Cycles | 125 V | Panel Mount | Standard Round | 3PDT | 0.25 in | 5 A | IP67 - Dust Tight Waterproof | Solder Lug | Epoxy Sealed Terminals | 10.39 mm | 85 °C | -30 ░C | 1/4-40 | On-On | 28 V | Non-Illuminated |
Carling Technologies | Brass Chrome Plated | 50000 Cycles | 20 V | Right Angle Through Hole Vertical | Standard Round | 3PDT | 0.4 VA | IP67 - Dust Tight Waterproof | PC Pin | Epoxy Sealed Terminals | 5.41 mm | 85 °C | -30 ░C | Unthreaded | On-On | 20 V | Non-Illuminated | |
 Carling Technologies | Brass Chrome Plated | 50000 Cycles | 125 V | Panel Mount | Standard Round | 3PDT | 0.25 in | 5 A | IP67 - Dust Tight Waterproof | PC Pin | Epoxy Sealed Terminals | 10.4 mm | 85 °C | -30 ░C | 1/4-40 | On-On | 28 V | Non-Illuminated |
Carling Technologies | Brass Chrome Plated | 50000 Cycles | 125 V | Panel Mount Right Angle | Standard Round | 3PDT | 0.25 in | 5 A | IP67 - Dust Tight Waterproof | PC Pin | Epoxy Sealed Terminals | 10.39 mm | 85 °C | -30 ░C | 1/4-40 | On-On | 28 V | Non-Illuminated |
