DLM5 Series

Catalog

CONNECTOR, ITT CANNON DL SERIES, 260 CONTACTS, 2.54 MM, RECEPTACLE, CRIMP, 10 ROWS

Part	Note	Connector Type	Pitch	Pitch	Number of Rows	Features	Number of Positions	Connector Usage	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Color	Termination	Number of Positions Loaded	Contact Finish	Number of Columns

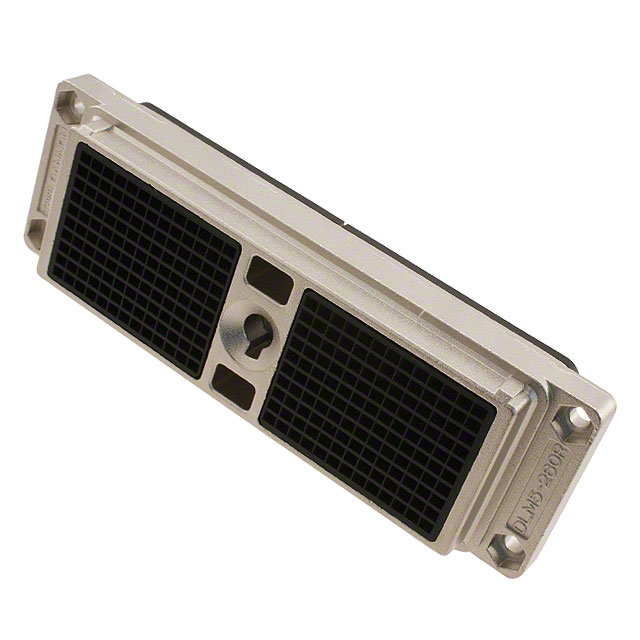

ITT Cannon, LLC DLM5-260R	Contacts Not Included	Housing for Non-Gendered Contacts	0.1 "	2.54 mm	10	Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	260	Receptacle	Panel Mount

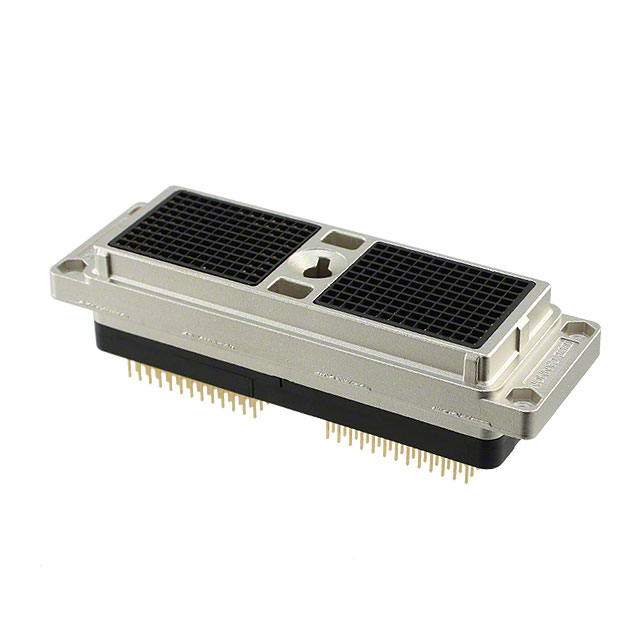

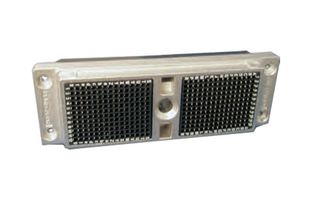

ITT Cannon, LLC DLM5-260RW6B		Receptacle Hermaphroditic Contacts	0.1 "	2.54 mm	10	Actuating Camshaft Socket Shielding Zero Insertion Force (ZIF)	260		Panel Mount	-55 C	105 ░C	UL94 V-0	50 µin	1.27 µm	Black	Solder	All	Gold	26

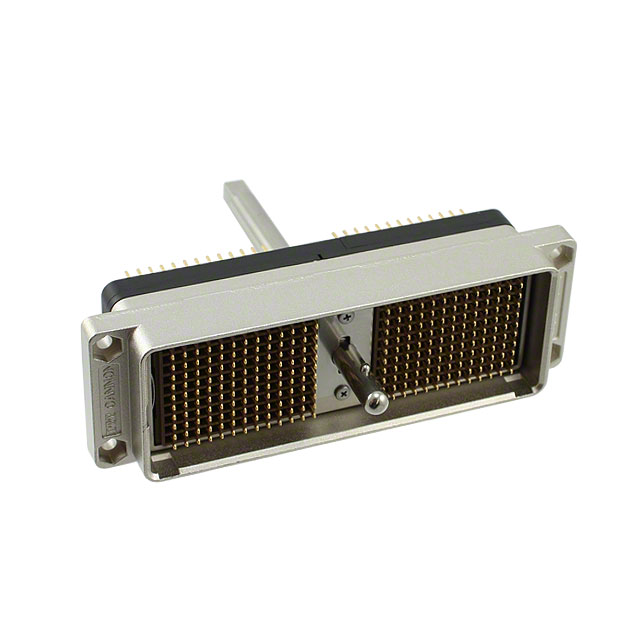

ITT Cannon, LLC DLM5-260PW6A		Plug Hermaphroditic Contacts	0.1 "	2.54 mm	10	Actuating Camshaft Shielding Zero Insertion Force (ZIF)	260		Panel Mount	-55 C	105 ░C	UL94 V-0	50 µin	1.27 µm	Black	Solder	All	Gold	26
