1504 Series
Manufacturer: Curtis Industries
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CONN BARRIER STRIP 4CIRC 0.375"
| Part | Material Flammability Rating | Operating Temperature | Material - Insulation | Terminal Screw Finish | Mounting Type | Number of Rows | Barrier Type | Pitch | Terminal Block Type | Wire Gauge (AWG) (Max) | Wire Gauge (AWG) (Min) | Current Rating | Bottom Termination | Features | Number of Circuits | Number of Wire Entries | Top Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

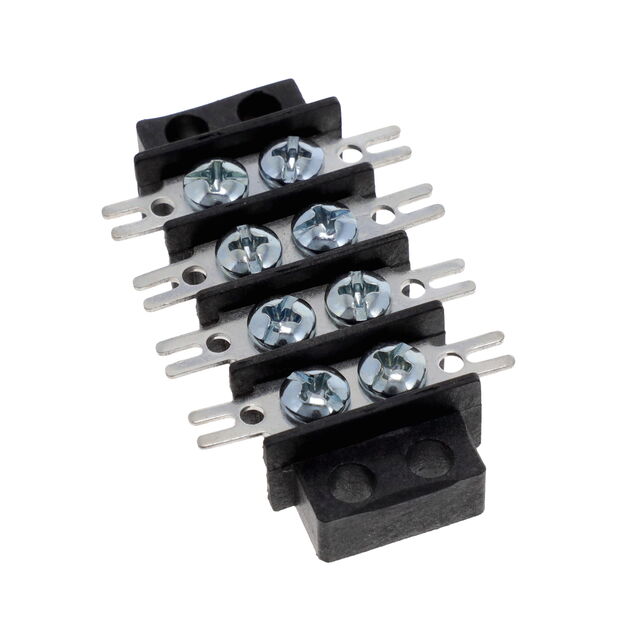

 Curtis Industries | UL94 V-0 | 110 °C | Polyphenylene Oxide PPO | Tin | Chassis Panel | 2 | 2 Wall (Dual) | 0.375 in | Barrier Block | 22 AWG | 10 AWG | 20 A | Closed | Flange | 4 | 8 | Dual Screws with Solder Lugs |

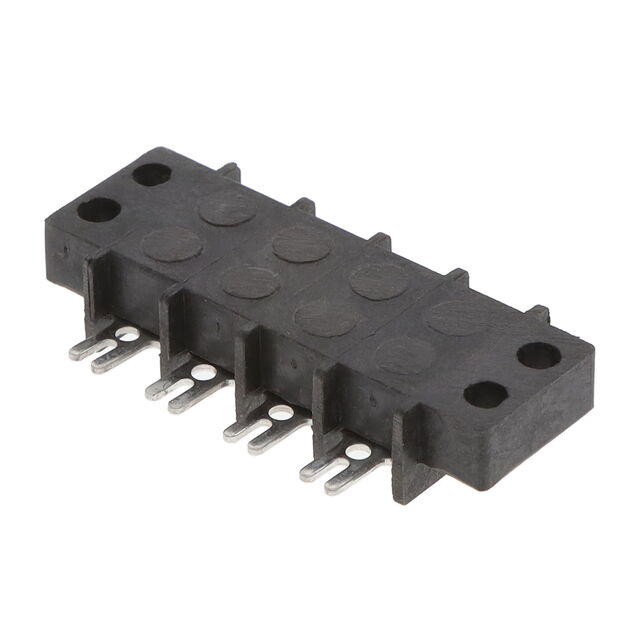

 Curtis Industries | UL94 V-0 | 110 °C | Polyphenylene Oxide PPO | Tin | Chassis Panel | 2 | 2 Wall (Dual) | 0.375 in | Barrier Block | 22 AWG | 10 AWG | 20 A | Closed | Flange | 4 | 8 | Screws with Solder Lugs Single |
