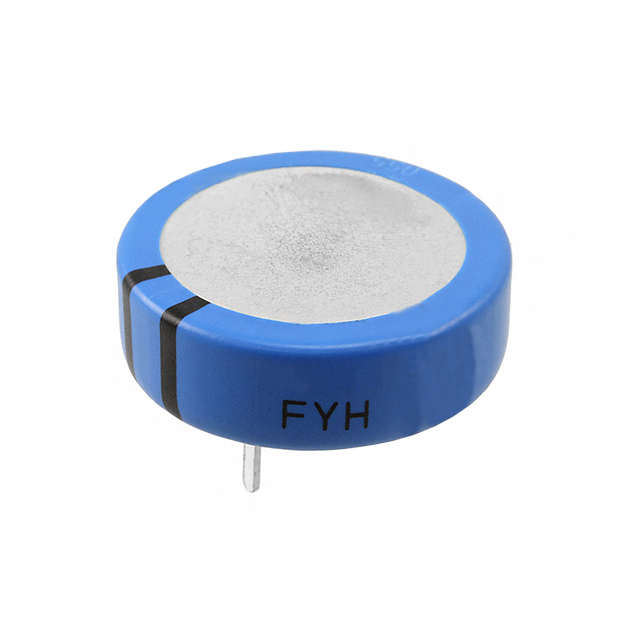

FYH0H Series

Manufacturer: KEMET

Catalog

CAP SUPERCAP 1F 5.5V -20% TO 80% (28.5 X 11MM) RADIAL ALUMINUM CYLINDRICAL CAN 10.16MM 20 OHM 70°C BULK

Part	Tolerance [Max]	Tolerance [Min]	Package / Case	Voltage - Rated	Capacitance	Termination	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
KEMET FYH0H105ZF	80 %	-20 %	Can Radial	5.5 V	1 F	PC Pins	0.4 "	10.16 mm	20 Ohm	11 mm	0.433 in	Through Hole	28.5 mm	1.122 in	-25 °C	70 °C
KEMET FYH0H474ZF	80 %	-20 %	Can Radial	5.5 V	470 mF	PC Pins	0.3 in	7.62 mm	35 Ohm			Through Hole	21.5 mm	0.846 in	-25 °C	70 °C	10 mm	0.394 in
