VX-015 Series

Catalog

SWITCH SNP ACT SPST-NO 0.1A 125V

Part	Switch Function	Pretravel	Pretravel	Mounting Type	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Overtravel [custom]	Overtravel [custom]	Voltage Rating - DC	Circuit	Ingress Protection	Actuator Type	Operating Force	Electrical Life	Mechanical Life	Termination Style	Differential Travel	Differential Travel	Release Force	Operating Position	Operating Position	Current Rating (Amps)

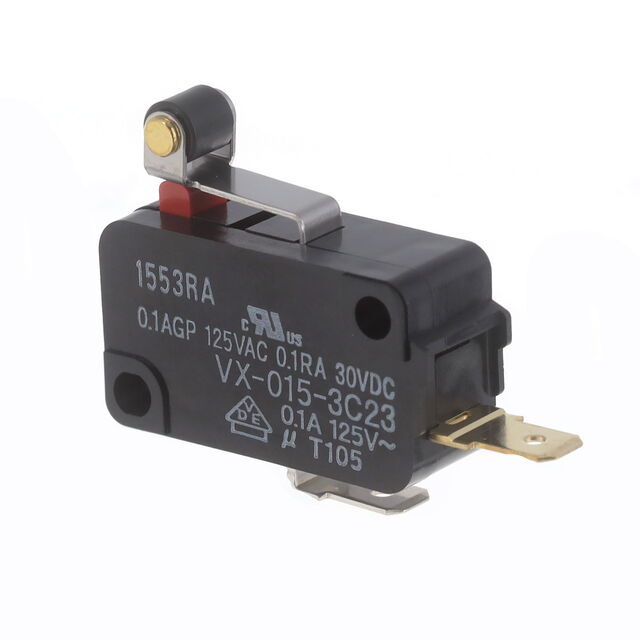

Omron Electronics Inc-EMC Div VX-015-3C23	Off-Mom	0.063 in	1.6 mm	Chassis Mount	125 V	-25 °C	80 °C	0.03 "	0.76 mm	30 V	SPST-NO	IP40	Lever Roller	60 gf	1000000 Cycles	10000000 Cycles	Quick Connect	0.5 mm	0.02 in	4.079 gf	20.7 mm	0.815 in	100 mA
Omron Electronics Inc-EMC Div VX-015-1C23	On-Mom	0.063 in	1.6 mm	Chassis Mount	125 V	-25 °C	80 °C	0.03 "	0.76 mm	30 V	SPDT	IP40	Lever Roller	60 gf	1000000 Cycles	10000000 Cycles	Quick Connect	0.5 mm	0.02 in	4.079 gf	20.7 mm	0.815 in	100 mA
