87568 Series

Manufacturer: Molex

Catalog

CONN RCPT 30POS IDC 28AWG GOLD

Part	Wire Gauge	Cable Termination	Contact Finish	Wire Type	Contact Type	Color	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Row Spacing	Row Spacing	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows [custom]	Features	Number of Positions	Fastening Type

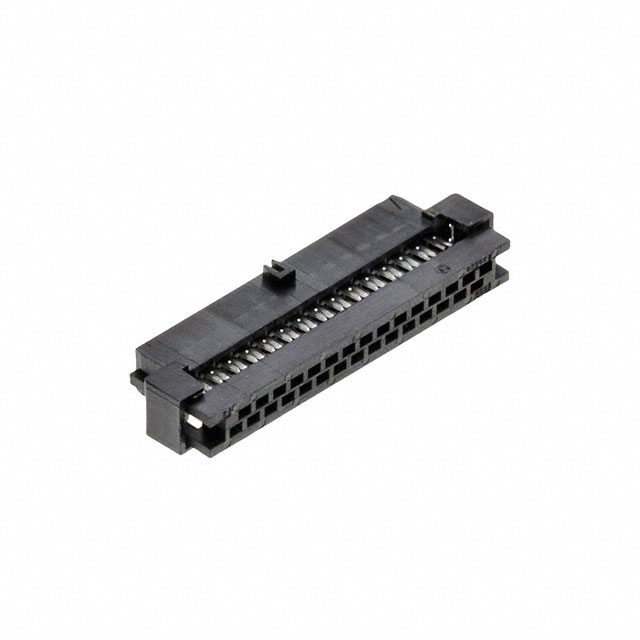

Molex 0875683043	28 AWG	IDC	Gold	Ribbon Cable	Female Socket	Black	Receptacle	0.38 µm	15 µin	2 mm	0.079 in	0.079 in	2 mm	Free Hanging (In-Line)	2	Feed Through Polarizing Key	30

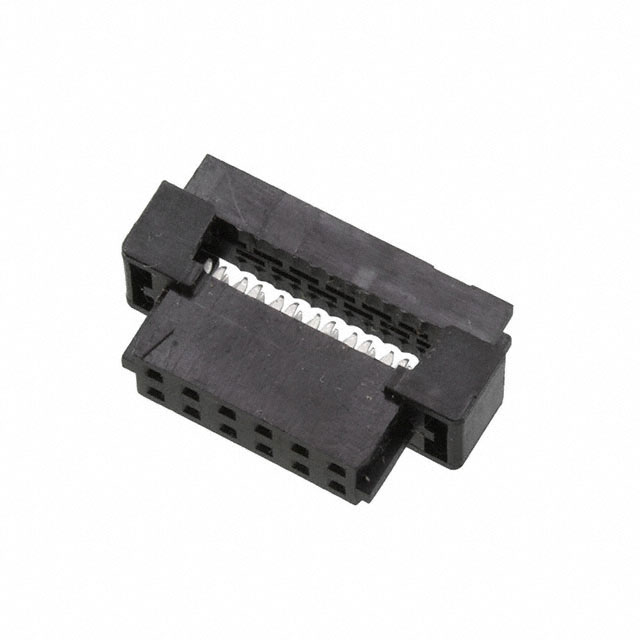

Molex 0875681263	28 AWG	IDC	Gold	Ribbon Cable	Female Socket	Black	Receptacle	0.38 µm	15 µin	2 mm	0.079 in	0.079 in	2 mm	Free Hanging (In-Line)	2	Feed Through	12
Molex 0875681074	28 AWG	IDC	Gold	Ribbon Cable	Female Socket	Black	Receptacle	0.76 Ám	30 Áin	2 mm	0.079 in	0.079 in	2 mm	Free Hanging (In-Line)	2	Feed Through	10	Locking Ramp

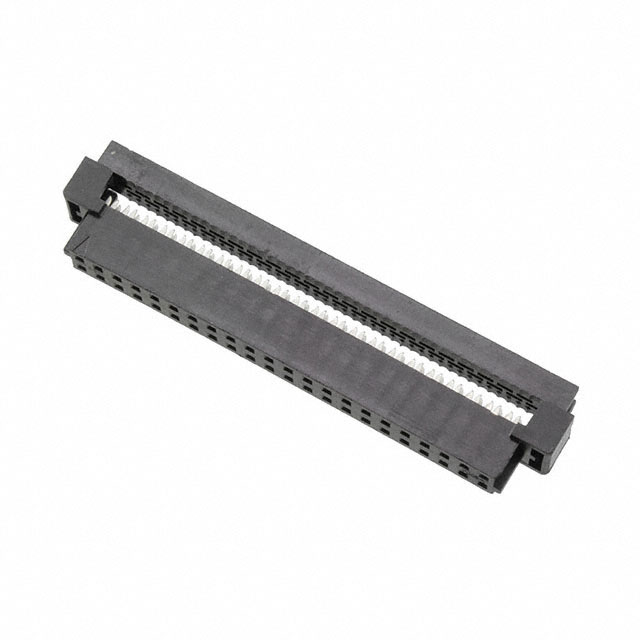

Molex 0875684463	28 AWG	IDC	Gold	Ribbon Cable	Female Socket	Black	Receptacle	0.38 µm	15 µin	2 mm	0.079 in	0.079 in	2 mm	Free Hanging (In-Line)	2	Feed Through	44

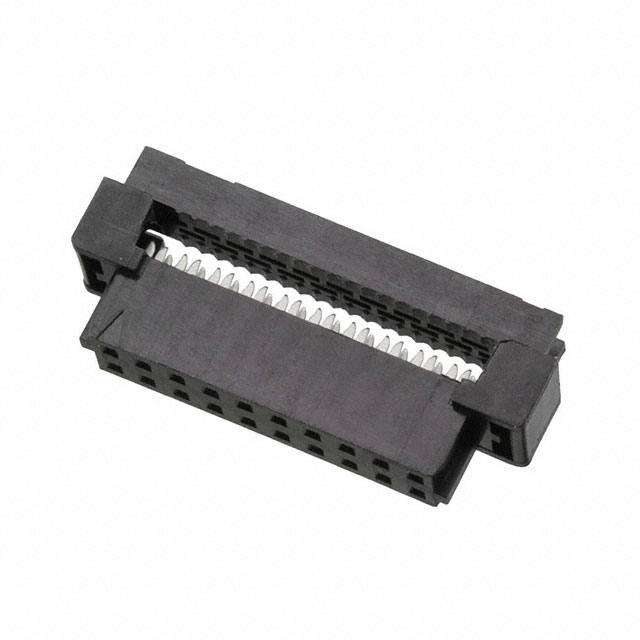

Molex 0875682063	28 AWG	IDC	Gold	Ribbon Cable	Female Socket	Black	Receptacle	0.38 µm	15 µin	2 mm	0.079 in	0.079 in	2 mm	Free Hanging (In-Line)	2	Feed Through	20

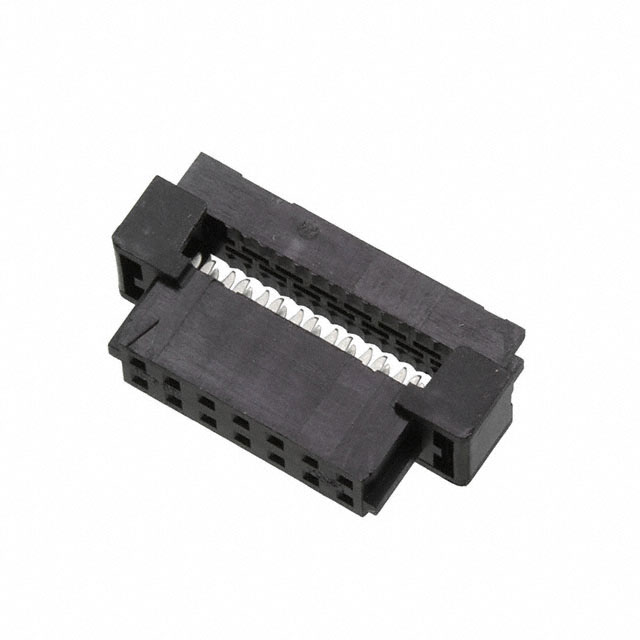

Molex 0875681463	28 AWG	IDC	Gold	Ribbon Cable	Female Socket	Black	Receptacle	0.38 µm	15 µin	2 mm	0.079 in	0.079 in	2 mm	Free Hanging (In-Line)	2	Feed Through	14

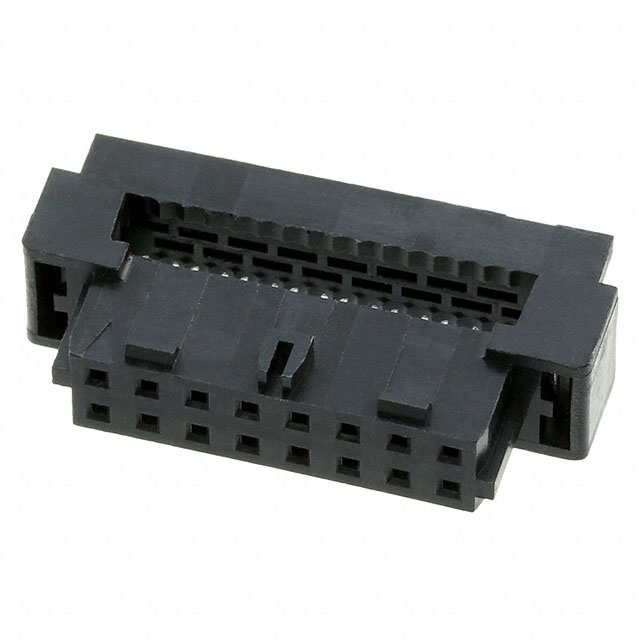

Molex 0875681694	28 AWG	IDC	Gold	Ribbon Cable	Female Socket	Black	Receptacle	0.76 Ám	30 Áin	2 mm	0.079 in	0.079 in	2 mm	Free Hanging (In-Line)	2	Feed Through Polarizing Key	16	Locking Ramp

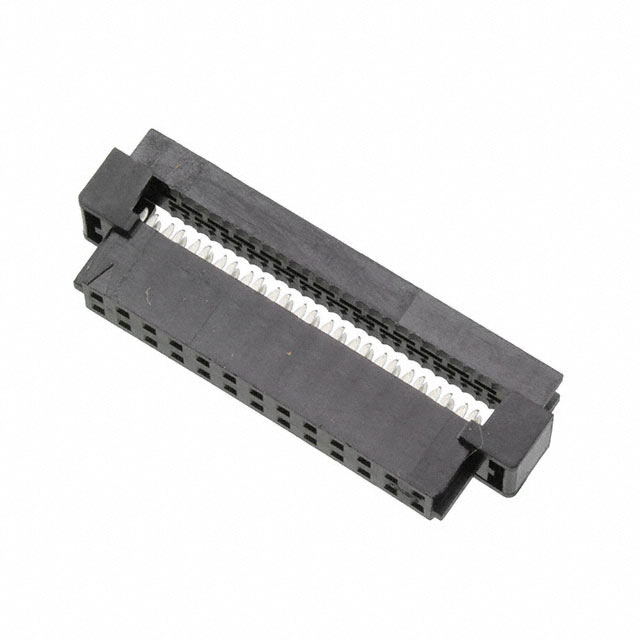

Molex 0875682663	28 AWG	IDC	Gold	Ribbon Cable	Female Socket	Black	Receptacle	0.38 µm	15 µin	2 mm	0.079 in	0.079 in	2 mm	Free Hanging (In-Line)	2	Feed Through	26

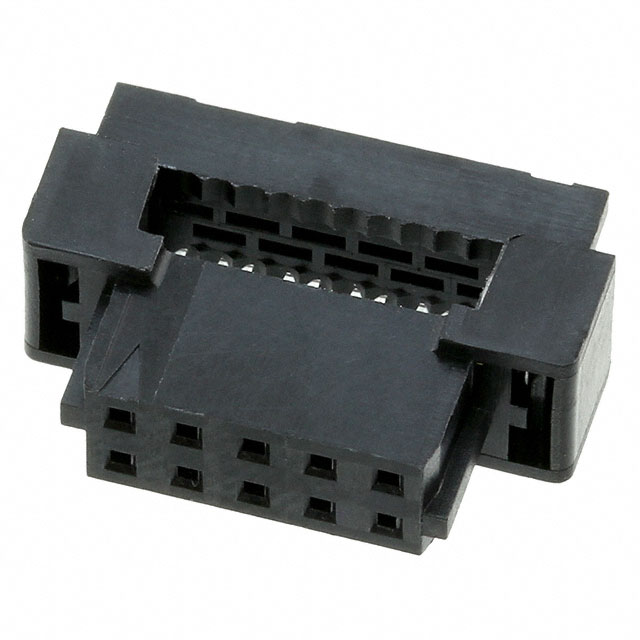

Molex 0875681063	28 AWG	IDC	Gold	Ribbon Cable	Female Socket	Black	Receptacle	0.38 µm	15 µin	2 mm	0.079 in	0.079 in	2 mm	Free Hanging (In-Line)	2	Feed Through	10

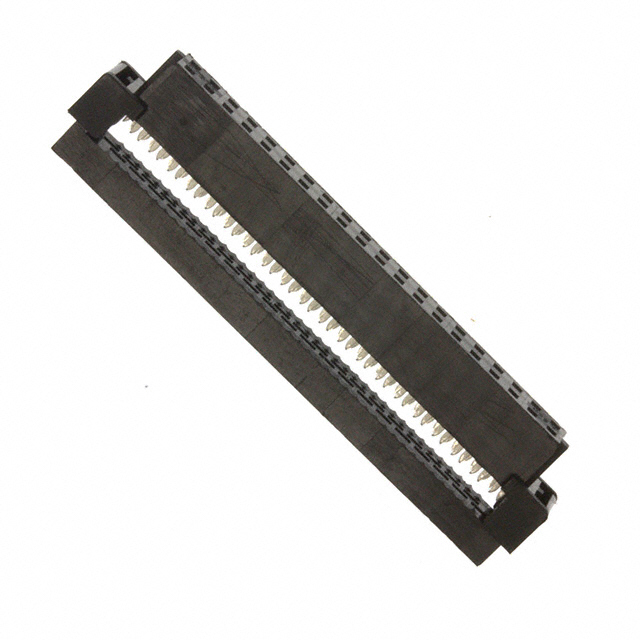

Molex 0875684063	28 AWG	IDC	Gold	Ribbon Cable	Female Socket	Black	Receptacle	0.38 µm	15 µin	2 mm	0.079 in	0.079 in	2 mm	Free Hanging (In-Line)	2	Feed Through	40
