GC0WDM-P Series
Manufacturer: ODU
Beta
⌘K

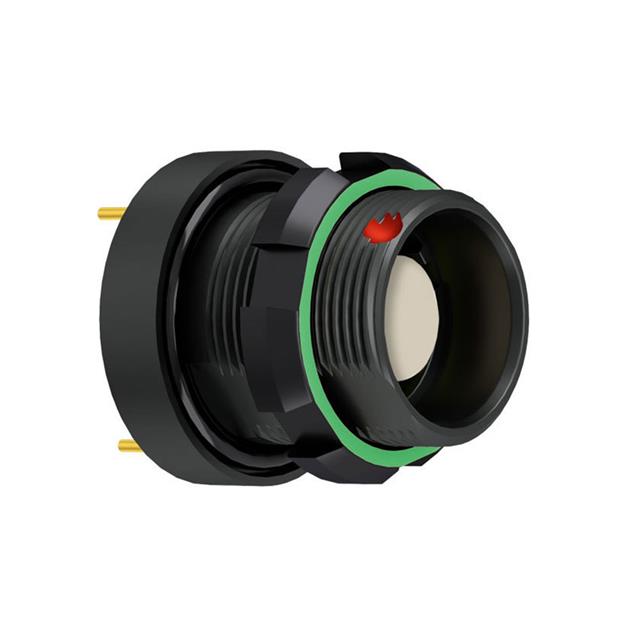

ODU AMC HD RECEPT, STY C, SZ 0,
| Part | Primary Material | Connector Type | Insert Material | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Applications | Fastening Type | Shell Finish | Orientation | Termination | Contact Finish - Mating | Current Rating (Amps) | Material Flammability Rating | Number of Positions | Mounting Feature | Color | Ingress Protection | Shell Size - Insert [custom] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Metal | Receptacle Female Sockets | Polyetheretherketone (PEEK) | Panel Mount Through Hole | -51 °C | 125 °C | Brass | Industrial Medical Military | Threaded | Ruthenium over Electroless Nickel | D | Solder | Gold | 1 A 5 A | UL94 V-0 | 9 | Bulkhead - Front Side Nut | Black Silver | IP68 - Dust Tight Waterproof | 0 | 50 µin | 1.27 µm | Copper Alloy | Shielded |
