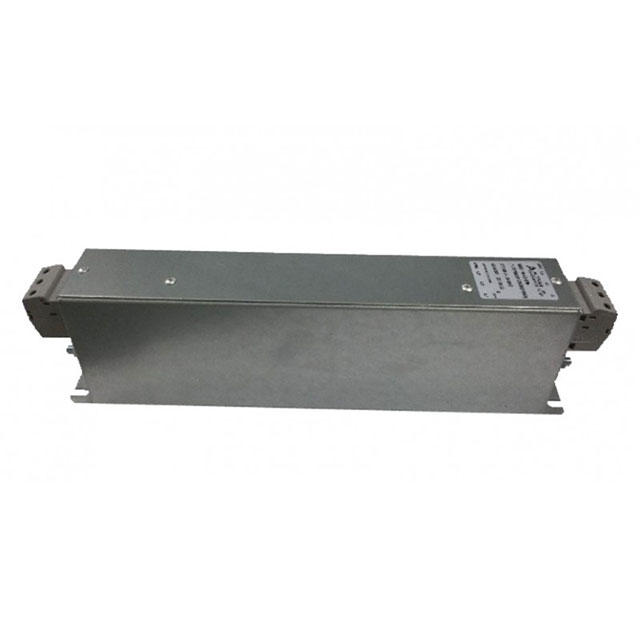

AMI-M32A Series

Catalog

LINE FILTER 7A CHASSIS MOUNT

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Configuration	Operating Temperature [Max]	Operating Temperature [Min]	Current	Voltage - Rated AC (Phase to Ground/Neutral)	Applications	Voltage - Rated AC (Phase to Phase)	Termination Style	Mounting Type	Filter Type
Altran Magnetics, LLC AMI-M32A-10-7-E-2	60 Hz	50 Hz	Single Stage	40 °C	-10 °C	7 A	250 V	General Purpose	440 V	Threaded Post (8-32)	Chassis Mount	Three Phase (Wye)
Altran Magnetics, LLC AMI-M32A-10A-42-E-2	60 Hz	50 Hz	Single Stage	40 °C	-10 °C	42 A	250 V	General Purpose	440 V	Threaded Post (8-32)	Chassis Mount	Three Phase (Wye)
Altran Magnetics, LLC AMI-M32A-10-16-E-2	60 Hz	50 Hz	Single Stage	40 °C	-10 °C	16 A	250 V	General Purpose	440 V	Threaded Post (8-32)	Chassis Mount	Three Phase (Wye)
Altran Magnetics, LLC AMI-M32A-10-7-E-1	60 Hz	50 Hz	Single Stage	40 °C	-10 °C	7 A	250 V	General Purpose	440 V	Threaded Post (8-32)	Chassis Mount	Three Phase (Wye)
Altran Magnetics, LLC AMI-M32A-10-30-E-2	60 Hz	50 Hz	Single Stage	40 °C	-10 °C	30 A	250 V	General Purpose	440 V	Threaded Post (8-32)	Chassis Mount	Three Phase (Wye)
