BD61247NUX Series

Multifunction Single-phase Full-wave Fan Motor Driver

Catalog

Multifunction Single-phase Full-wave Fan Motor Driver

Part	Supplier Device Package	Interface	Voltage - Load	Current - Output	Function	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Package / Case	Applications	Output Configuration	Mounting Type	Motor Type - AC, DC	Voltage - Supply [Min]	Voltage - Supply [Max]

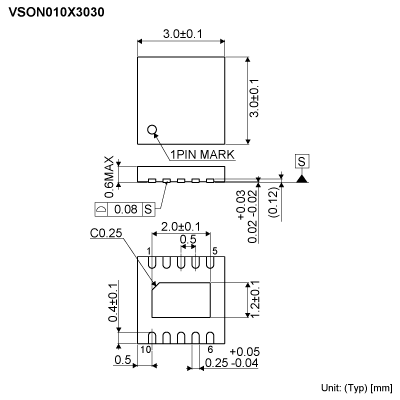

Rohm Semiconductor BD61247NUX-E2	VSON010X3030	PWM	18 V	200 mA	Controller - Commutation Direction Management	-40 °C	105 ░C	DMOS	10-UFDFN Exposed Pad	Fan Motor Driver	Half Bridge (2)	Surface Mount	Brushless DC (BLDC)	4.5 V	16 V

Catalog

Multifunction Single-phase Full-wave Fan Motor Driver

Key Features

• Driver Including Power DMOS FET, Speed Controllable by PWM Input, PWM Soft Switching, Quick Start, Start Assist, Lock Protection and Automatic Restart, High Speed Detection Protection, Rotation Speed Pulse Signal Output (1/2FG)

Description

BD61247NUX is a 1chip driver that is composed of H-bridge power DMOS FET. It realizes the quietness of the motor by PWM soft switching.
