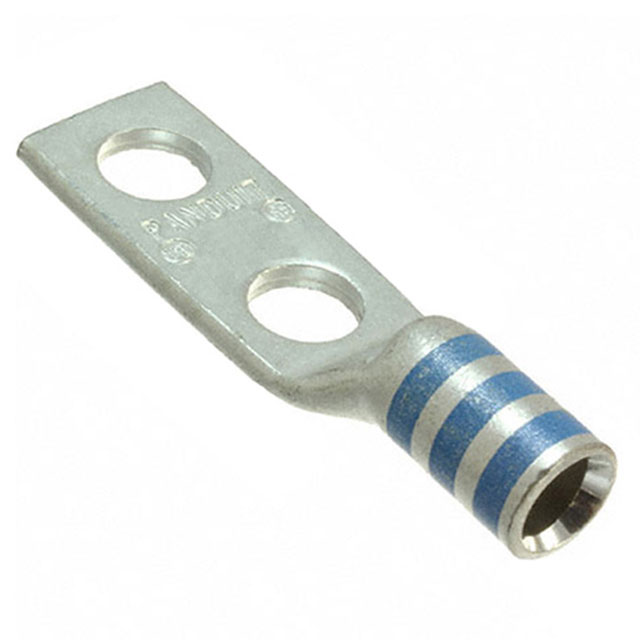

LCD400 Series

Catalog

CONN TERM RECT TONG 400 MCM #1/2

Part	Diameter - Ring ID	Diameter - Ring ID	Contact Material	Contact Finish	Diameter - Barrel OD [diameter]	Diameter - Barrel OD [diameter]	Diameter - Barrel ID [diameter]	Diameter - Barrel ID [diameter]	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge	Stud/Tab Size	Termination	Insulation	Terminal Style	Mounting Type	Tab Thickness	Tab Thickness	Terminal Type	Color	Length - Overall [x]	Length - Overall [x]	Diameter - Ring ID [diameter]	Diameter - Ring ID [diameter]
Panduit Corp LCD400-12-6	13.46 mm	0.53 in	Copper	Electro-Tin	0.95 in	24.13 mm	19.3 mm	0.76 in	1.39 "	35.31 mm	400 MCM	0.5 Stud	Barrel Crimp	Non-Insulated	Two Stud Holes	Free Hanging (In-Line)	0.18 in	4.57 mm	Rectangular Tongue	Blue	5.04 in	128.02 mm
Panduit Corp LCD400-38D-6			Copper	Electro-Tin	0.95 in	24.13 mm	19.3 mm	0.76 in	1.39 "	35.31 mm	400 MCM	0.375 Stud	Barrel Crimp	Non-Insulated	Two Stud Holes	Free Hanging (In-Line)	0.18 in	4.57 mm	Rectangular Tongue	Blue	3.86 in	98.04 mm	10.41 mm	0.41 "
