FPS6X88 Series
Modular Connectors / Ethernet Connectors TX6A Category 6A Shielded Field Terminab
Manufacturer: Panduit Corp
Catalog
Modular Connectors / Ethernet Connectors TX6A Category 6A Shielded Field Terminab
Beta
⌘K
Modular Connectors / Ethernet Connectors TX6A Category 6A Shielded Field Terminab
Modular Connectors / Ethernet Connectors TX6A Category 6A Shielded Field Terminab
Modular Connectors / Ethernet Connectors TX6A Category 6A Shielded Field Terminab
| Part | Color | Termination | Housing Material | Ratings | Shielding | Length | Length | Connector Type | Wire Gauge [Min] | Wire Gauge [Max] | Features | Number of Positions/Contacts | Contact Material | Cable Type | Contact Finish | Length [x] | Length [x] | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

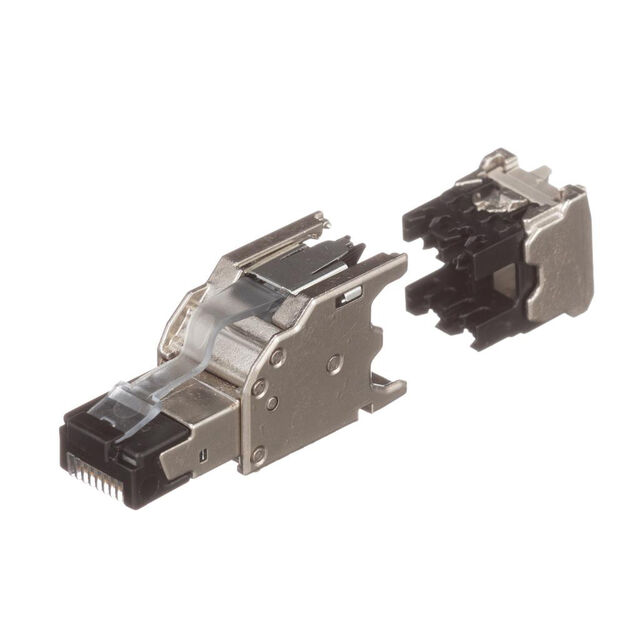

 Panduit Corp | Silver | IDC | Polycarbonate (PC) | Cat6a | Shielded | 46.48 mm | 1.83 " | Plug | 22 AWG | 26 AWG | Protective Cap | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Flat Oval or Round Cable Solid or Stranded Wires | ||||
 Panduit Corp | Silver | IDC | Polycarbonate (PC) | Cat6a | Shielded | 46.48 mm | 1.83 " | Plug | 22 AWG | 26 AWG | Protective Cap | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Flat Oval or Round Cable Solid or Stranded Wires | Nickel | |||

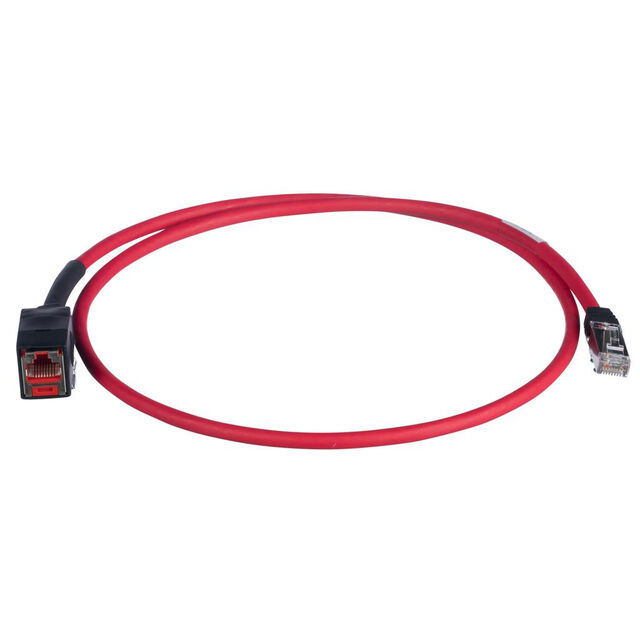

 Panduit Corp | Shielded | Jack to Plug | 1 m | 3.28 ft | Cat6a |
