172185 Series

Manufacturer: Molex

Catalog

EXTREME ENERGETIC MODULAR RIGHT-ANGLE PLUG ASSEMBLY, 2 POWER CIRCUITS WITH SOLDER TAIL MOUNTING, WITHOUT GUIDE

Part	Number of Columns [custom]	Contact Finish	Mounting Type	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Termination	Color	Number of Rows	Connector Type	Number of Positions	Contact Layout, Typical	Number of Positions Loaded	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Features	Connector Usage	Number of Columns	Contact Layout, Typical [custom]	Contact Layout, Typical [custom]	Number of Positions [custom]

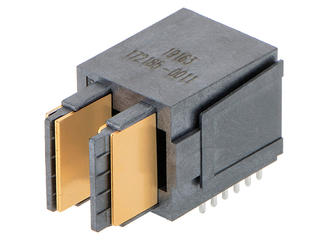

Molex 1721850011	2	Gold	Right Angle Through Hole	Power	30 Áin	0.76 Ám	0.301 in	7.65 mm	Press-Fit	Black	1	Plug Male Blades	2	2 Power	All

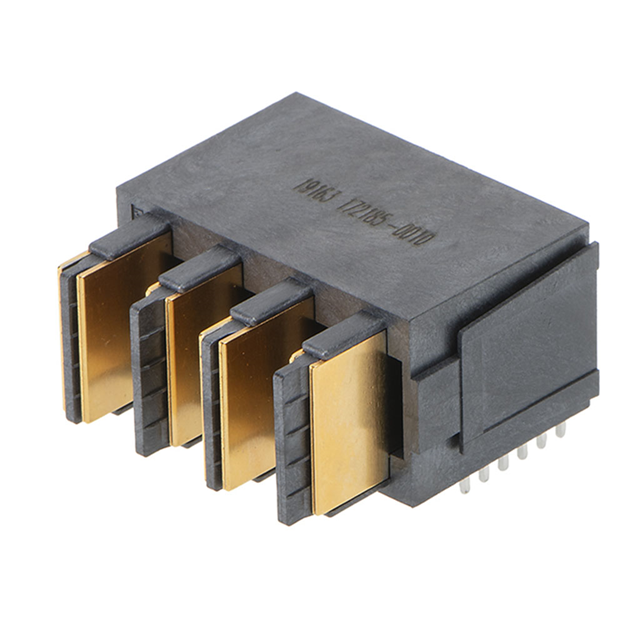

Molex 1721850010	4	Gold	Right Angle Through Hole	Power	30 Áin	0.76 Ám	0.301 in	7.65 mm	Solder	Black	1	Plug Male Blades	4	4 Power	All	UL94 V-0	600 VAC	100 A	-40 C	105 ░C

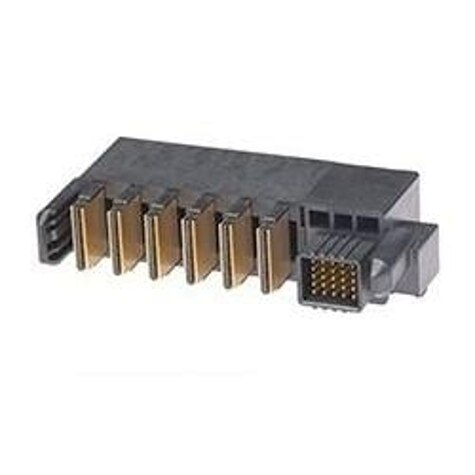

Molex 1721850002		Gold	Right Angle Through Hole	Power	30 Áin	0.76 Ám			Press-Fit	Black	5	Plug Male Blades	29		All						4	25
Molex 1721850007	2	Gold	Right Angle Through Hole	Power	30 Áin	0.76 Ám	0.3 in	7.62 mm	Solder	Black	1	Plug Male Blades	2	2 Power	All	UL94 V-0		50 A	-40 C	105 ░C			Board Guide	Backplane
Molex 1721850008		Gold	Right Angle Through Hole	Power	30 Áin	0.76 Ám			Press-Fit	Black	5	Plug Male Blades	29		All	UL94 V-0	600 VAC	100 A	-40 C	105 ░C	4	25

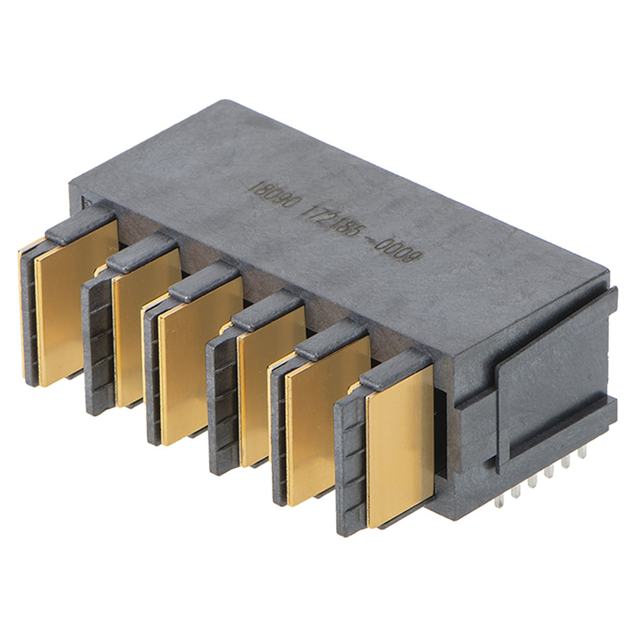

Molex 1721850009		Gold	Right Angle Through Hole	Power	30 Áin	0.76 Ám	0.301 in	7.65 mm	Press-Fit	Black	1	Plug Male Blades	6	6 Power	All	UL94 V-0	600 V	100 A	-40 C	105 ░C					6
Molex 1721850006	4	Gold	Right Angle Through Hole	Power	30 Áin	0.76 Ám	0.3 in	7.62 mm	Solder	Black	1	Plug Male Blades	4	4 Power	All	UL94 V-0		50 A	-40 C	105 ░C			Board Guide	Backplane
Molex 1721850001		Gold	Right Angle Through Hole	Power	30 Áin	0.76 Ám			Press-Fit	Black	5	Plug Male Pins and Blades			All											6	25	31
