WP3DPD1 Series
Manufacturer: Kingbright
Beta
⌘K
SENSOR PHOTODIODE 940NM RADIAL
| Part | Mounting Type | Wavelength | Response Time | Color - Enhanced | Current - Dark (Typ) [Max] | Diode Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Spectral Range [Min] | Spectral Range [Max] | Viewing Angle | Voltage - DC Reverse (Vr) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

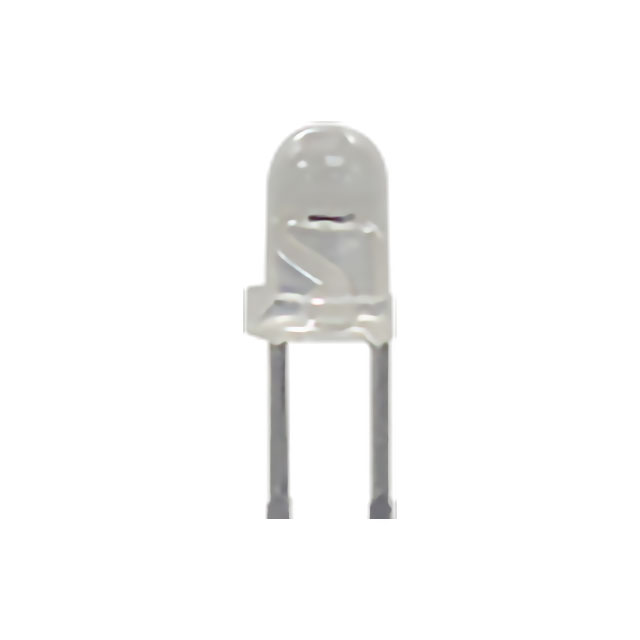

 Kingbright | Through Hole | 940 nm | 6 ns | Infrared (NIR) | 10 nA | PIN | 85 °C | -40 C | Radial | 420 nm | 1120 nm | 50 ° | 170 V |

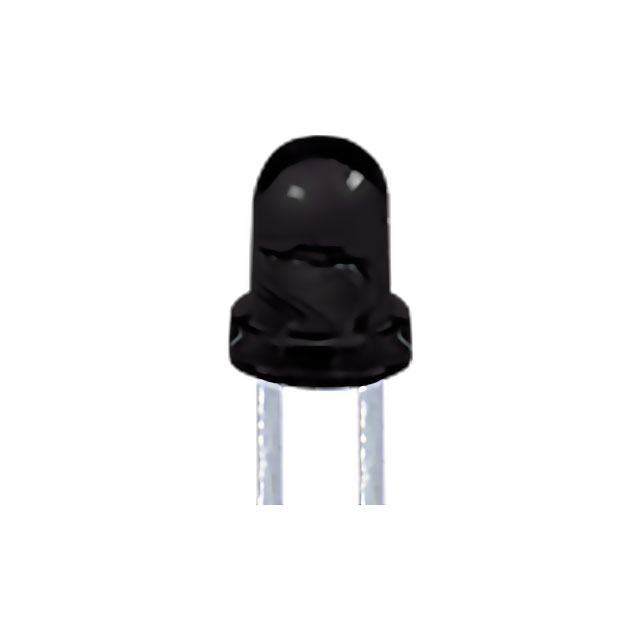

 Kingbright | Through Hole | 940 nm | 6 ns | Infrared (NIR) | 10 nA | PIN | 85 °C | -40 C | Radial | 670 nm | 1070 nm | 50 ° | 170 V |
