SM06B-SH Series

Catalog

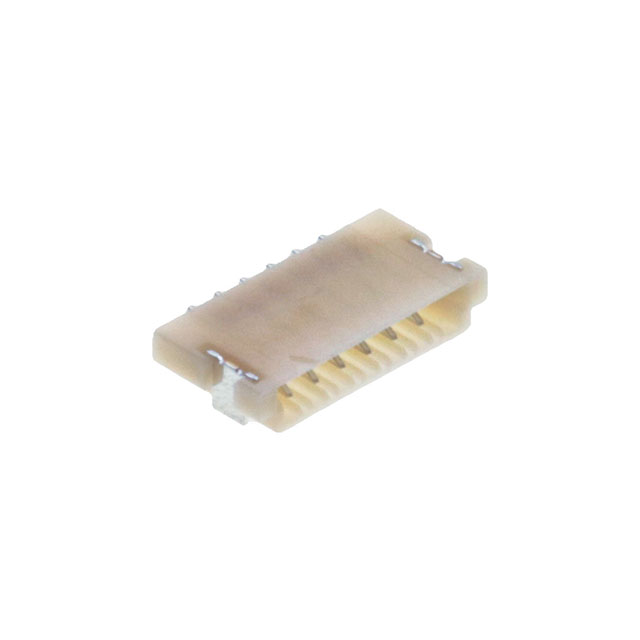

CONN HEADER SMD R/A 6POS 1MM

Part	Features	Connector Type	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Contact Material	Number of Positions	Termination	Contact Type	Mounting Type	Contact Shape	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Color	Voltage Rating	Number of Rows	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Style	Number of Positions Loaded	Insulation Material
JST Sales America Inc. SM06B-SHLS-TF	Solder Retention	Header	UL94 V-0	85 °C	-25 °C	Push-Pull	Phosphor Bronze	6	Solder	Outer Shroud Contact	Right Angle Surface Mount	Rectangular	1 mm	0.039 in	Shrouded - 4 Wall	Natural	50 V	1	Tin	0.069 in	1.75 mm	Board to Cable/Wire	All	Nylon Polyamide (PA)
