325-080 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 80POS 0.100

Part	Material - Insulation	Termination Rows [custom]	Card Type	Contact Type	Contact Finish Thickness	Contact Finish Thickness	Color	Pitch	Pitch	Read Out	Flange Feature	Mounting Type	Number of Positions/Bay/Row [custom]	Termination	Number of Positions	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Card Thickness	Card Thickness	Number of Rows [custom]	Gender	Flange Feature [diameter]	Flange Feature [diameter]

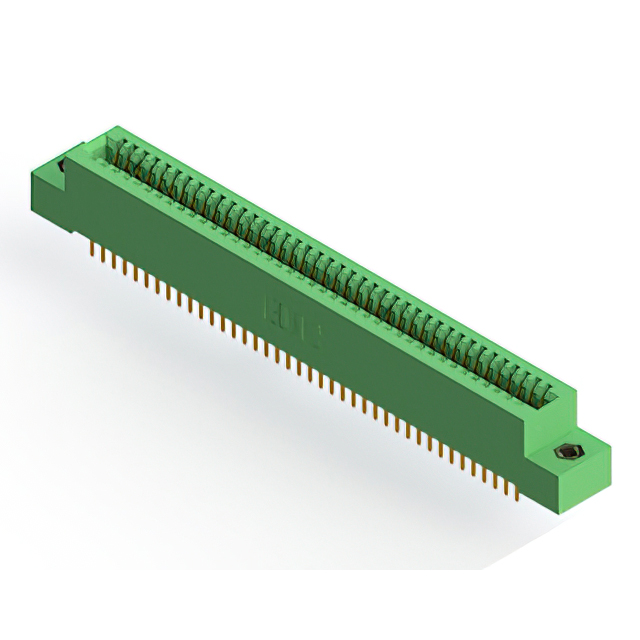

EDAC Inc. 325-080-520-207	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	0.25 Ám	10 Áin	Green	0.1 "	2.54 mm	Dual	Flush Mount M3 Threaded Insert Top Opening	Through Hole	40	Solder	80	Copper Alloy	-65 ░C	125 °C	Gold	3.18 mm	0.125 in	2	Female
EDAC Inc. 325-080-520-201	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	0.25 Ám	10 Áin	Green	0.1 "	2.54 mm	Dual		Through Hole	40	Solder	80	Copper Alloy	-65 ░C	125 °C	Gold	3.18 mm	0.125 in	2	Female
EDAC Inc. 325-080-500-209	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	0.25 Ám	10 Áin	Green	0.1 "	2.54 mm	Dual	Flush Mount Top Opening Unthreaded	Through Hole	40	Solder Eyelet(s)	80	Copper Alloy	-65 ░C	125 °C	Gold	3.18 mm	0.125 in	2	Female	0.16 "	4.06 mm

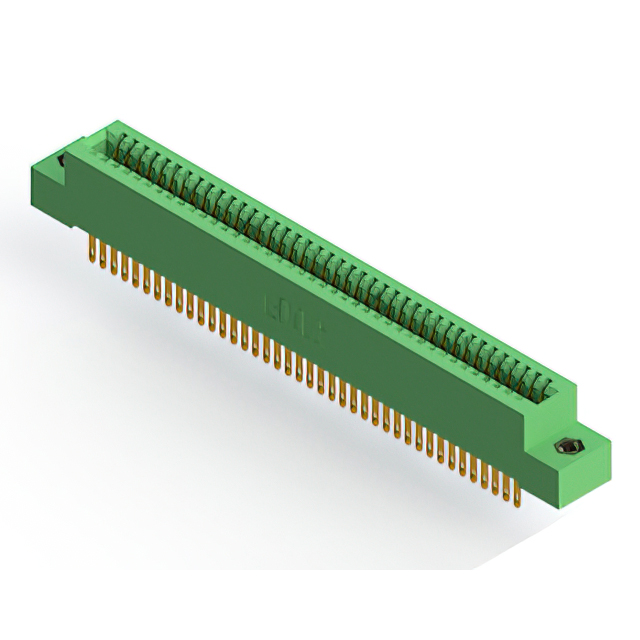

EDAC Inc. 325-080-500-208	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	0.25 Ám	10 Áin	Green	0.1 "	2.54 mm	Dual	4-40 Flush Mount Threaded Insert Top Opening	Through Hole	40	Solder Eyelet(s)	80	Copper Alloy	-65 ░C	125 °C	Gold	3.18 mm	0.125 in	2	Female
EDAC Inc. 325-080-500-207	Diallyl Phthalate (DAP)	2	Non Specified - Dual Edge	Cantilever	0.25 Ám	10 Áin	Green	0.1 "	2.54 mm	Dual	Flush Mount M3 Threaded Insert Top Opening	Through Hole	40	Solder Eyelet(s)	80	Copper Alloy	-65 ░C	125 °C	Gold	3.18 mm	0.125 in	2	Female
