PSR1636 Series

Catalog

CABLE FFC 50COND 0.050" 500'

Part	Conductor Thickness	Conductor Thickness	Wire Gauge	Current Rating (Amps)	Voltage Rating	Operating Temperature	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Cable Length	Cable Length	Conductor Material	Features	Cable Width	Cable Width	Jacket (Insulation) Material	Pitch	Pitch	Ratings	Number of Conductors [custom]
Parlex USA LLC PSR1636-50	0.08 mm	0.003 in	30 AWG	2.5 A	300 VDC	105 C	0.05 mm	0.002 in	50	152.4 m	500 ft	Copper Bare	Conductor 1 Tinned	2.55 in	64.77 mm	Polyester	0.05 in	1.27 mm	UL Style 2643
Parlex USA LLC PSR1636-15	0.08 mm	0.003 in	30 AWG	2.5 A	300 VDC	105 C	0.05 mm	0.002 in	15	152.4 m	500 ft	Copper Bare	Conductor 1 Tinned	0.8 in	20.32 mm	Polyester	0.05 in	1.27 mm	UL Style 2643

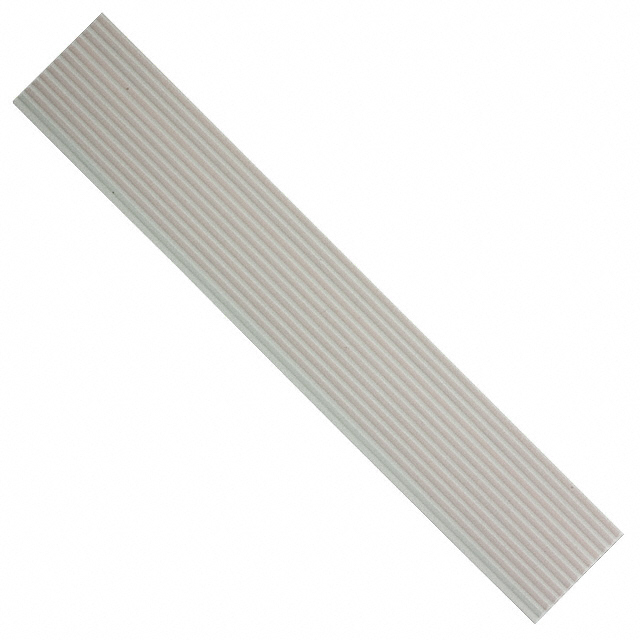

Parlex USA LLC PSR1636-12	0.08 mm	0.003 in	30 AWG	2.5 A	300 VDC	105 C	0.05 mm	0.002 in	12	152.4 m	500 ft	Copper Bare	Conductor 1 Tinned	0.65 in	16.51 mm	Polyester	0.05 in	1.27 mm	UL Style 2643
Parlex USA LLC PSR1636-14	0.08 mm	0.003 in	30 AWG	2.5 A	300 VDC	105 C	0.05 mm	0.002 in	14	152.4 m	500 ft	Copper Bare	Conductor 1 Tinned	0.75 in	19.05 mm	Polyester	0.05 in	1.27 mm	UL Style 2643
Parlex USA LLC PSR1636-40	0.08 mm	0.003 in	30 AWG	2.5 A	300 VDC	105 C	0.05 mm	0.002 in	40	152.4 m	500 ft	Copper Bare	Conductor 1 Tinned	2.05 in	52.07 mm	Polyester	0.05 in	1.27 mm	UL Style 2643

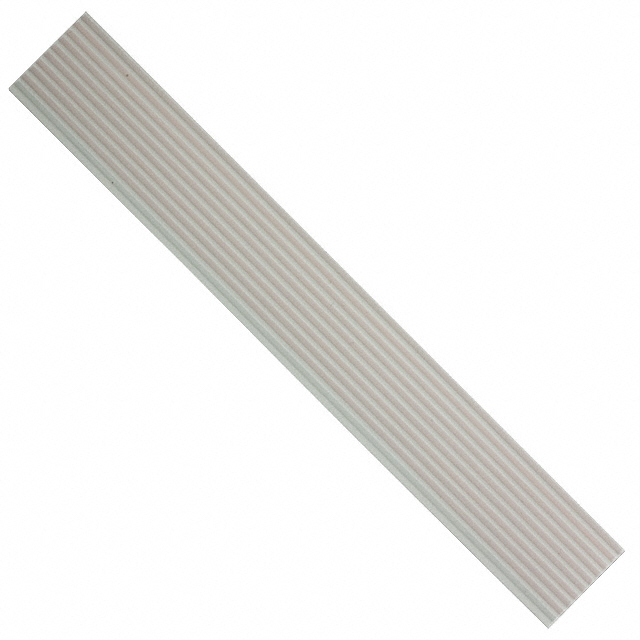

Parlex USA LLC PSR1636-10	0.08 mm	0.003 in	30 AWG	2.5 A	300 VDC	105 C	0.05 mm	0.002 in		152.4 m	500 ft	Copper Bare	Conductor 1 Tinned	0.55 in	13.97 mm	Polyester	0.05 in	1.27 mm	UL Style 2643	10

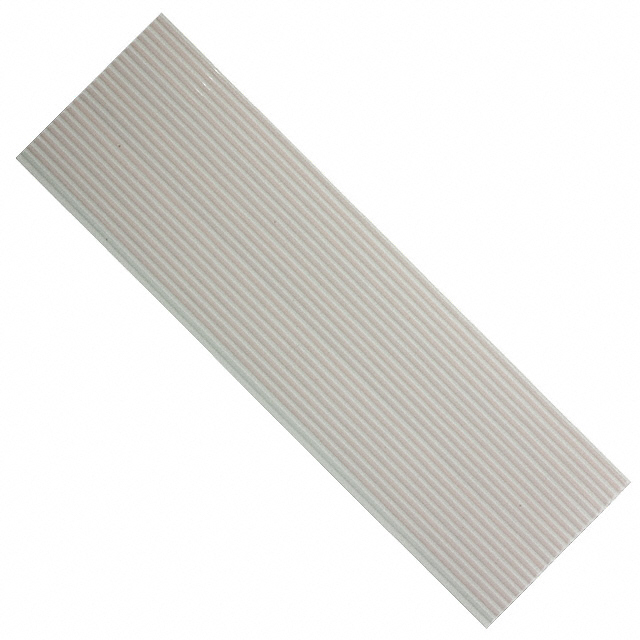

Parlex USA LLC PSR1636-22	0.08 mm	0.003 in	30 AWG	2.5 A	300 VDC	105 C	0.05 mm	0.002 in	22	152.4 m	500 ft	Copper Bare	Conductor 1 Tinned	1.15 in	29.21 mm	Polyester	0.05 in	1.27 mm	UL Style 2643
Parlex USA LLC PSR1636-26	0.08 mm	0.003 in	30 AWG	2.5 A	300 VDC	105 C	0.05 mm	0.002 in	26	152.4 m	500 ft	Copper Bare	Conductor 1 Tinned	1.35 in	34.29 mm	Polyester	0.05 in	1.27 mm	UL Style 2643

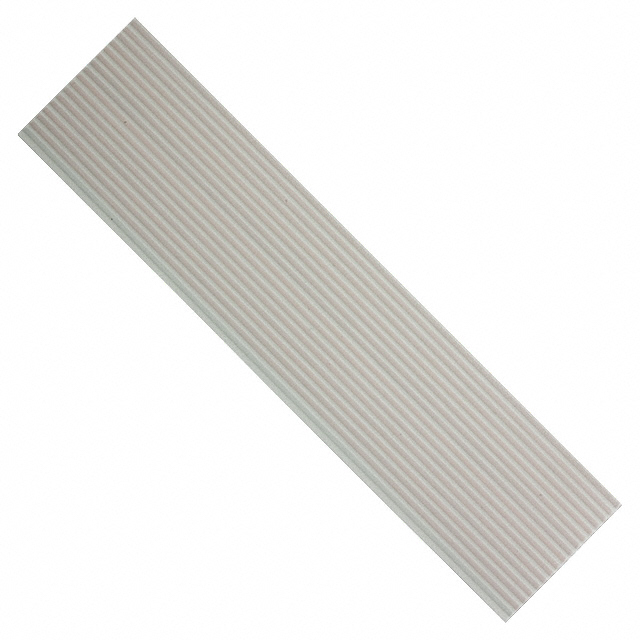

Parlex USA LLC PSR1636-17	0.08 mm	0.003 in	30 AWG	2.5 A	300 VDC	105 C	0.05 mm	0.002 in	17	152.4 m	500 ft	Copper Bare	Conductor 1 Tinned	0.9 in	22.86 mm	Polyester	0.05 in	1.27 mm	UL Style 2643
Parlex USA LLC PSR1636-36	0.08 mm	0.003 in	30 AWG	2.5 A	300 VDC	105 C	0.05 mm	0.002 in	36	152.4 m	500 ft	Copper Bare	Conductor 1 Tinned	1.85 in	46.99 mm	Polyester	0.05 in	1.27 mm	UL Style 2643
