1986371 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

TERM BLOCK PLUG 9POS 3.5MM

Part	Plug Wire Entry	Screw Size	Contact Material	Voltage - UL	Pitch [x]	Pitch [x]	Material Flammability Rating	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Color	Current - UL	Contact Mating Finish	Number of Levels	Features	Type	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Insulation Height	Insulation Height	Termination Style	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]

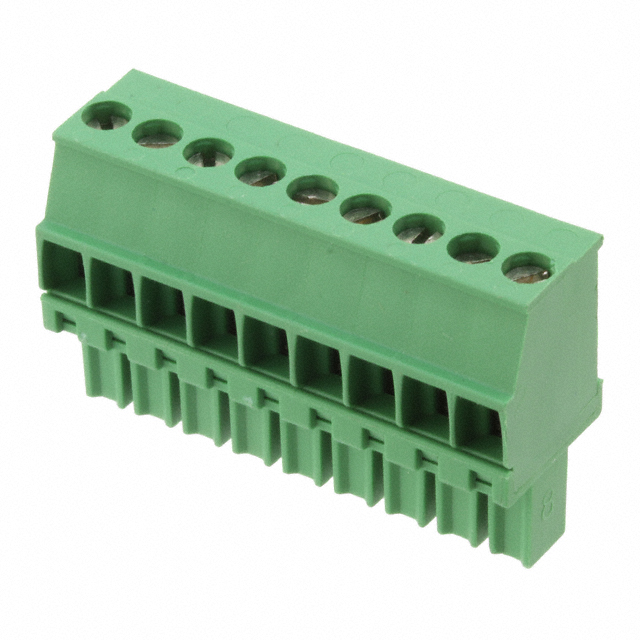

TE Connectivity Raychem Cable Protection 1986371-9	270 °	M2	Phosphor Bronze	300 V	3.5 mm	0.138 in	UL94 V-0	9	14 AWG	30 AWG	2 mm˛	0.05 mm˛	Green	11 A	Tin	1	Side Stacking	Plug Female Sockets	9	-40 °C	110 °C	Free Hanging (In-Line)	0.756 in	19.2 mm	Screw - Rising Cage Clamp

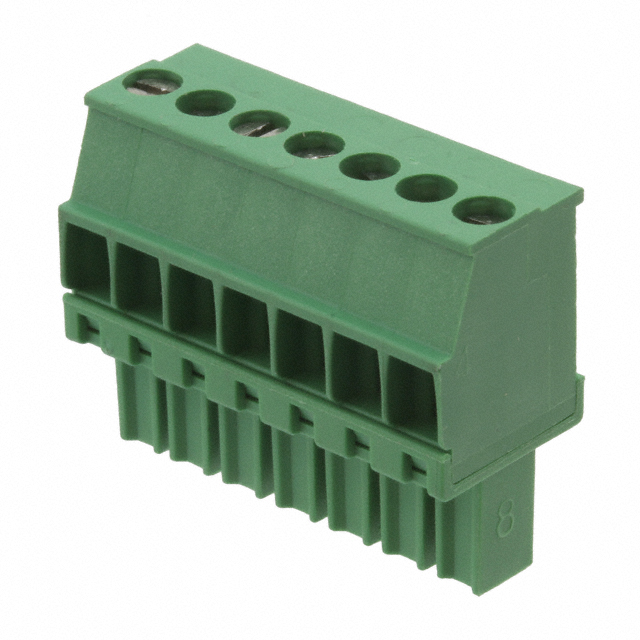

TE Connectivity Raychem Cable Protection 1986371-7	270 °	M2	Phosphor Bronze	300 V	3.5 mm	0.138 in	UL94 V-0	7	14 AWG	30 AWG			Green	11 A	Tin	1	Side Stacking	Plug Female Sockets	7	-40 °C	110 °C	Free Hanging (In-Line)	0.756 in	19.2 mm	Screw - Rising Cage Clamp	0.05 mm²	2 mm²

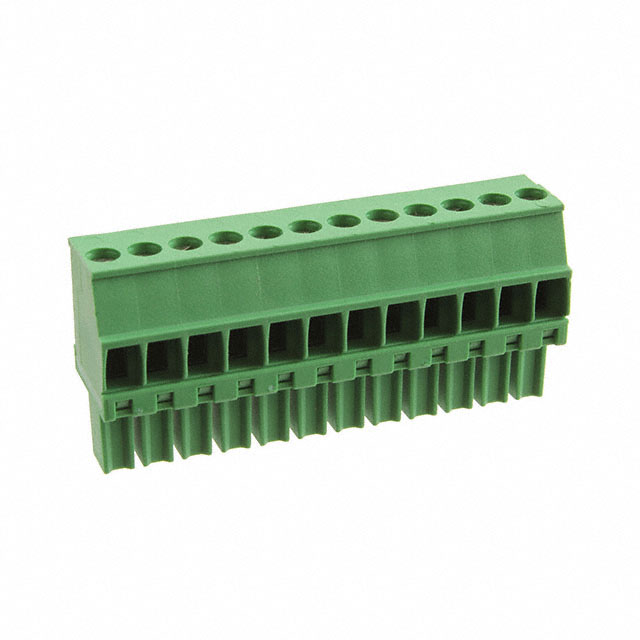

TE Connectivity Raychem Cable Protection 1-1986371-2	270 °	M2	Phosphor Bronze	300 V	3.5 mm	0.138 in	UL94 V-0	12	14 AWG	30 AWG	2 mm˛	0.05 mm˛	Green	11 A	Tin	1	Side Stacking	Plug Female Sockets	12	-40 °C	110 °C	Free Hanging (In-Line)	0.756 in	19.2 mm	Screw - Rising Cage Clamp
TE Connectivity Raychem Cable Protection 1-1986371-5	270 °	M2	Phosphor Bronze	300 V	3.5 mm	0.138 in	UL94 V-0	15	14 AWG	30 AWG			Green	11 A	Tin	1	Side Stacking	Plug Female Sockets	15	-40 °C	110 °C	Free Hanging (In-Line)	0.756 in	19.2 mm	Screw - Rising Cage Clamp	0.05 mm²	2 mm²

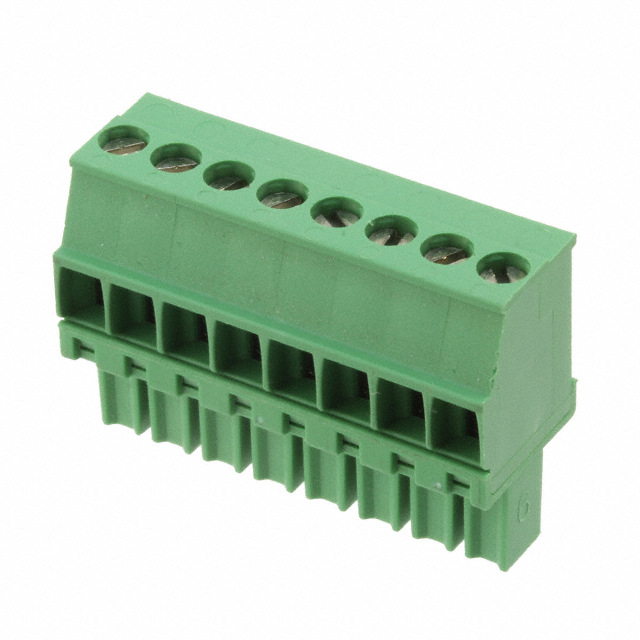

TE Connectivity Raychem Cable Protection 1986371-8	270 °	M2	Phosphor Bronze	300 V	3.5 mm	0.138 in	UL94 V-0	8	14 AWG	30 AWG			Green	11 A	Tin	1	Side Stacking	Plug Female Sockets	8	-40 °C	110 °C	Free Hanging (In-Line)	0.756 in	19.2 mm	Screw - Rising Cage Clamp	0.05 mm²	2 mm²
