YB26NK Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH PUSHBUTTON DPDT 3A 125V
| Part | Electrical Life | Mechanical Life | Voltage Rating - DC | Actuator Type | Voltage Rating - AC | Mounting Type | Switch Function | Illumination Type, Color | Panel Cutout Dimensions [diameter] | Type | Current Rating (Amps) | Illumination Voltage (Nominal) | Features | Actuator Marking | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Color - Actuator/Cap |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 100000 Cycles | 200000 Cycles | 30 V | Button Rectangular | 125 V | Panel Mount Snap-In | On-On | Green LED | 16 mm | Illuminated Standard | 3 A | 2.2 VDC | Voltage Reduction Lighting | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | DPDT | Clear |

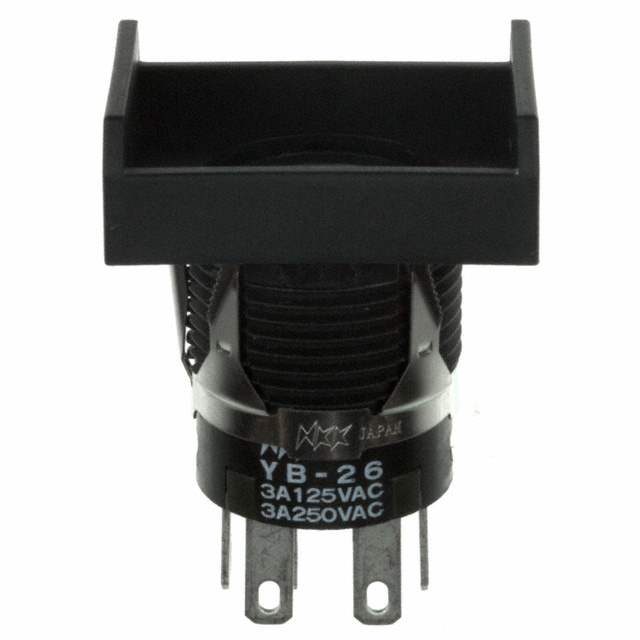

NKK Switches | 100000 Cycles | 200000 Cycles | 30 V | Button Rectangular | 125 V | Panel Mount Snap-In | On-On | 16 mm | Standard | 3 A | Voltage Reduction Lighting | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 70 °C | -25 °C | DPDT | White | ||
NKK Switches | 100000 Cycles | 200000 Cycles | 30 V | Button Rectangular | 125 V | Panel Mount Snap-In | On-On | LED Red | 16 mm | Illuminated Standard | 3 A | 24 V | Voltage Reduction Lighting | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | DPDT | Clear |
NKK Switches | 100000 Cycles | 200000 Cycles | 30 V | Button Rectangular | 125 V | Panel Mount Snap-In | On-On | Green/Red LED | 16 mm | Illuminated Standard | 3 A | 2 VDC | Voltage Reduction Lighting | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | DPDT | Clear |
NKK Switches | 100000 Cycles | 200000 Cycles | 30 V | Button Rectangular | 125 V | Panel Mount Snap-In | On-On | Amber LED | 16 mm | Illuminated Standard | 3 A | 12 VDC | Voltage Reduction Lighting | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | DPDT | Clear |
NKK Switches | 100000 Cycles | 200000 Cycles | 30 V | Button Rectangular | 125 V | Panel Mount Snap-In | On-On | LED Red | 16 mm | Illuminated Standard | 3 A | 1.9 VDC | Voltage Reduction Lighting | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | DPDT | Clear |

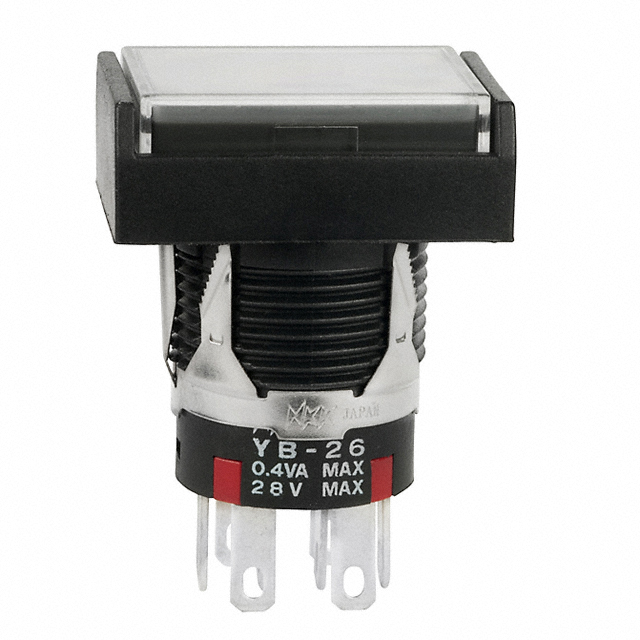

 NKK Switches | 100000 Cycles | 200000 Cycles | 28 V | Button Rectangular | 28 V | Panel Mount Snap-In | On-On | Green/Red LED | 16 mm | Illuminated Standard | 0.4 VA | 2 VDC | Voltage Reduction Lighting | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | DPDT | Clear |

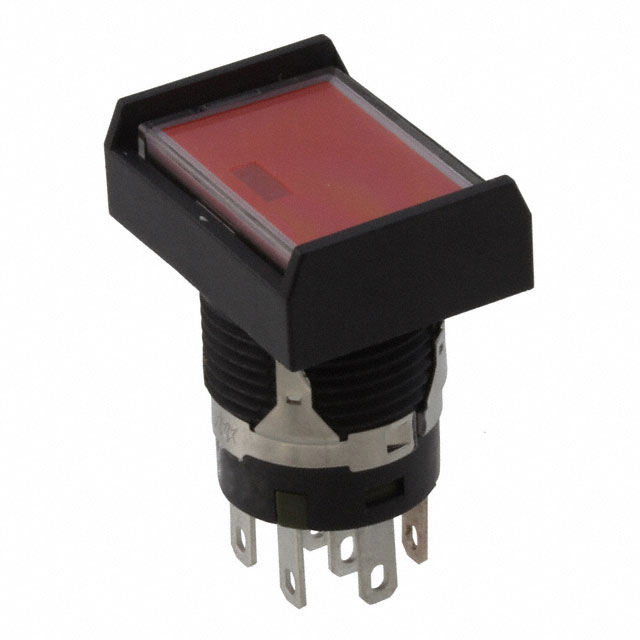

 NKK Switches | 100000 Cycles | 200000 Cycles | 30 V | Button Rectangular | 125 V | Panel Mount Snap-In | On-On | LED Red | 16 mm | Illuminated Standard | 3 A | 12 VDC | Voltage Reduction Lighting | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | DPDT | Clear |
 NKK Switches | 100000 Cycles | 200000 Cycles | 30 V | Plunger for Cap | 125 V | Panel Mount Snap-In | On-On | 16 mm | Standard | 3 A | Voltage Reduction Lighting | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 70 °C | -25 °C | DPDT | |||
NKK Switches | 100000 Cycles | 200000 Cycles | 30 V | Button Rectangular | 125 V | Panel Mount Snap-In | On-On | Green LED | 16 mm | Illuminated Standard | 3 A | 12 VDC | Voltage Reduction Lighting | No Marking | Solder Quick Connect - 0.110" (2.8mm) | 50 °C | -25 °C | DPDT | Clear |
