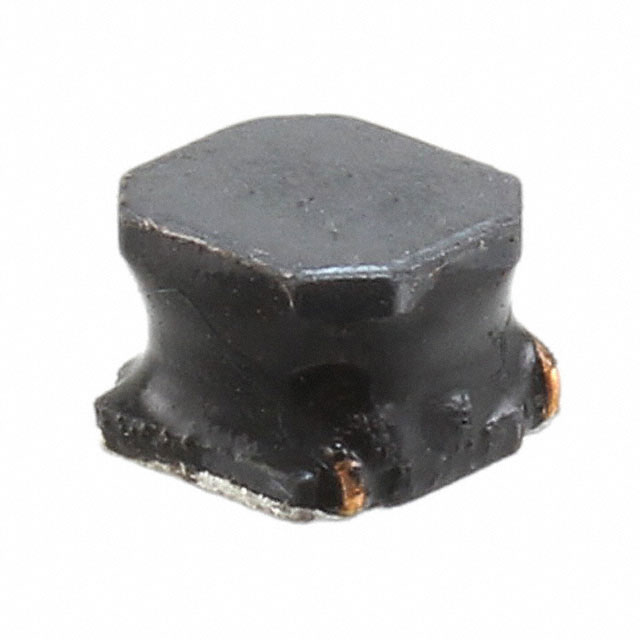

SRN5040 Series

Catalog

POWER INDUCTOR (SMD), 3.3 ΜH, 3.3 A, SEMISHIELDED, 3.8 A, SRN5040 SERIES

Part	Material - Core	Height - Seated (Max)	Height - Seated (Max) [Max]	Current - Saturation (Isat)	Current Rating (Amps)	Inductance Frequency - Test	Shielding	Package / Case	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq [custom]	Q @ Freq [custom]	Tolerance	Mounting Type	Type	Frequency - Self Resonant	DC Resistance (DCR)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	DC Resistance (DCR) [Max]	Q @ Freq
Bourns Inc. SRN5040-3R3M	Ferrite	4 mm	0.157 in	3.8 A	3.3 A	100 kHz	Shielded	Nonstandard	3.3 µH	125 °C	-40 C	7.96 MHz	20	20 %	Surface Mount	Drum Core Wirewound	30 MHz	27 mOhm	0.197 in	0.197 "	5 mm	5 mm
Bourns Inc. SRN5040-2R2Y	Ferrite	4 mm	0.157 in	4.6 A	3.5 A	100 kHz	Shielded	Nonstandard	2.2 µH	125 °C	-40 C	7.96 MHz	20	30 %	Surface Mount	Drum Core Wirewound	40 MHz		0.197 in	0.197 "	5 mm	5 mm	21 mOhm
Bourns Inc. SRN5040-150M	Ferrite	4 mm	0.157 in	2 A	1.8 A	100 kHz	Shielded	Nonstandard	15 µH	125 °C	-40 C			20 %	Surface Mount	Drum Core Wirewound	15 MHz		0.197 in	0.197 "	5 mm	5 mm	96 mOhm	2.52 MHz 17
Bourns Inc. SRN5040-4R7M	Ferrite	4 mm	0.157 in	3.3 A	3.1 A	100 kHz	Shielded	Nonstandard	4.7 ÁH	125 °C	-40 C			20 %	Surface Mount	Drum Core Wirewound	27 MHz		0.197 in	0.197 "	5 mm	5 mm	35 mOhm	7.96 MHz 15
Bourns Inc. SRN5040-330M	Ferrite	4 mm	0.157 in	1.3 A	1.2 A	100 kHz	Shielded	Nonstandard	33 µH	125 °C	-40 C			20 %	Surface Mount	Drum Core Wirewound	8 MHz		0.197 in	0.197 "	5 mm	5 mm	216 mOhm	2.52 MHz 17
Bourns Inc. SRN5040-220M	Ferrite	4 mm	0.157 in	1.6 A	1.4 A	100 kHz	Shielded	Nonstandard	22 µH	125 °C	-40 C			20 %	Surface Mount	Drum Core Wirewound	11 MHz		0.197 in	0.197 "	5 mm	5 mm	152 mOhm	2.52 MHz 17
