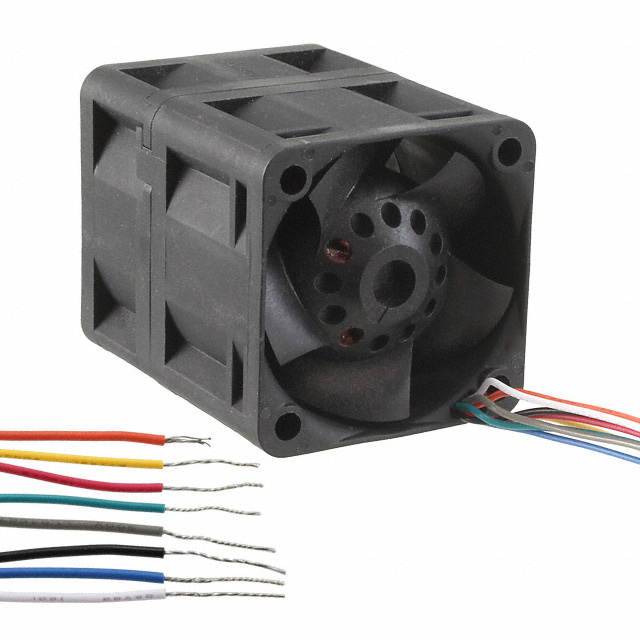

GFC03812 Series
Manufacturer: Delta Electronics
Beta
⌘K
FAN AXIAL DUAL 38X48MM 12VDC
| Part | Current Rating (Amps) | Voltage Range [Min] | Voltage Range [Max] | Material - Blade | Material - Frame | Lifetime @ Temp. | RPM | Voltage - Rated | Width [y] | Power (Watts) | Fan Type | Bearing Type | Static Pressure | Static Pressure | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Termination | Weight | Weight | Noise | Features | Air Flow | Air Flow |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 1.52 A | 10.8 VDC | 12.6 VDC | Plastic | Plastic | 40 °C 50000 Hrs | 20000 21700 | 12 VDC | 48 mm | 18.24 W | Tubeaxial (Dual) | Ball | 963 Pa | 3.866 in H2O | 38 mm | 38 mm | 70 °C | -10 °C | cURus TUV | 4 | 0.167 lb | 75.75 g | 64 dB(A) | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 0.739 mł/min | 26.4 CFM |
