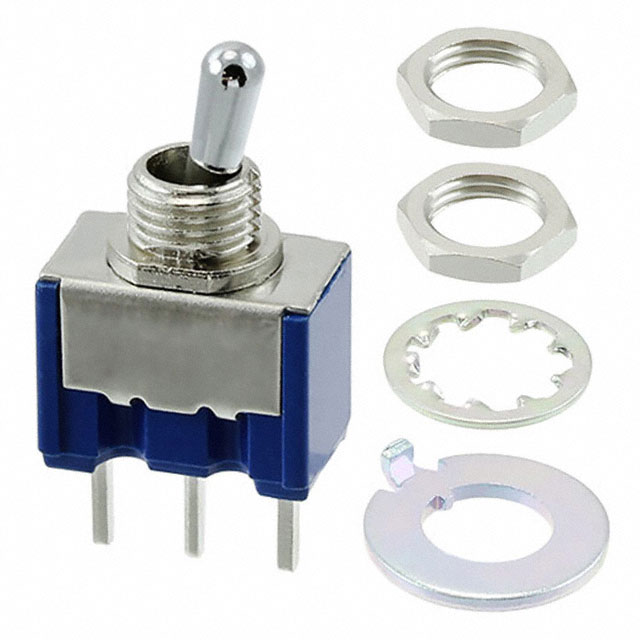

8B1012 Series
Manufacturer: Nidec Components Corporation
Beta
⌘K
SWITCH TOGGLE SPDT 6A 125V
| Part | Electrical Life | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - DC | Actuator Length [x] | Illumination | Current Rating (Amps) | Features | Bushing Thread | Termination Style | Panel Cutout Dimensions [diameter] | Actuator Type | Switch Function | Voltage Rating - AC | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nidec Components Corporation | 50000 Cycles | SPDT | 85 °C | -30 ░C | 30 V | 11.5 mm | Non-Illuminated | 4 A 6 A | Sealed - Flux Protection | 15/32-32 | PC Pin | 12.5 mm | Standard Round | On-On | 125 V | Panel Mount |
