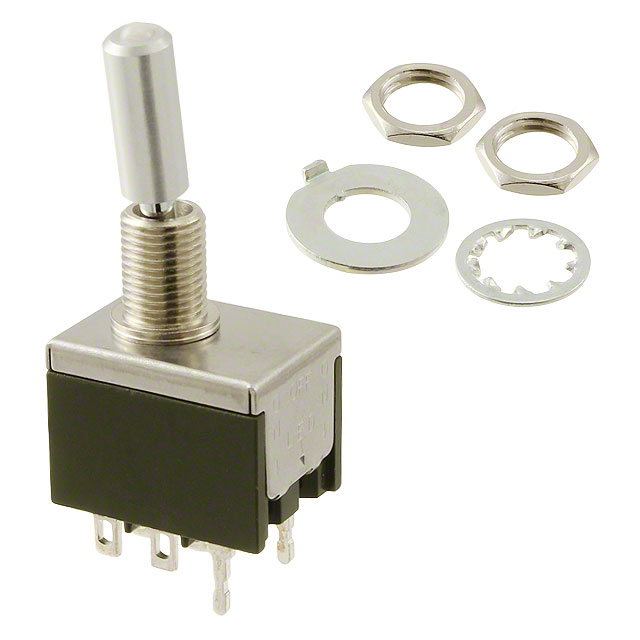

M2123LC Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE DPDT 6A 125V
| Part | Electrical Life | Switch Function | Voltage Rating - DC | Actuator Length [x] | Illumination Type, Color | Panel Cutout Dimensions [diameter] | Features | Illumination | Bushing Thread | Termination Style | Illumination Voltage (Nominal) | Circuit | Mounting Type | Voltage Rating - AC | Actuator Type | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | On-Off-On | 30 V | 14.7 mm | Green/Red LED | 6.5 mm | Epoxy Sealed Terminals | Illuminated | 1/4-40 | Solder Lug | 1.7 VDC 2 VDC | DPDT | Panel Mount | 125 V | Standard Round | 3 A 6 A | 55 °C | -10 °C |
 NKK Switches | 25000 Steps | On-Off-On | 28 V | 14.7 mm | Green/Red LED | 6.5 mm | Epoxy Sealed Terminals | Illuminated | 1/4-40 | PC Pin | 1.7 VDC 2 VDC | DPDT | Panel Mount | 28 V | Standard Round | 0.4 VA | 55 °C | -10 °C |
